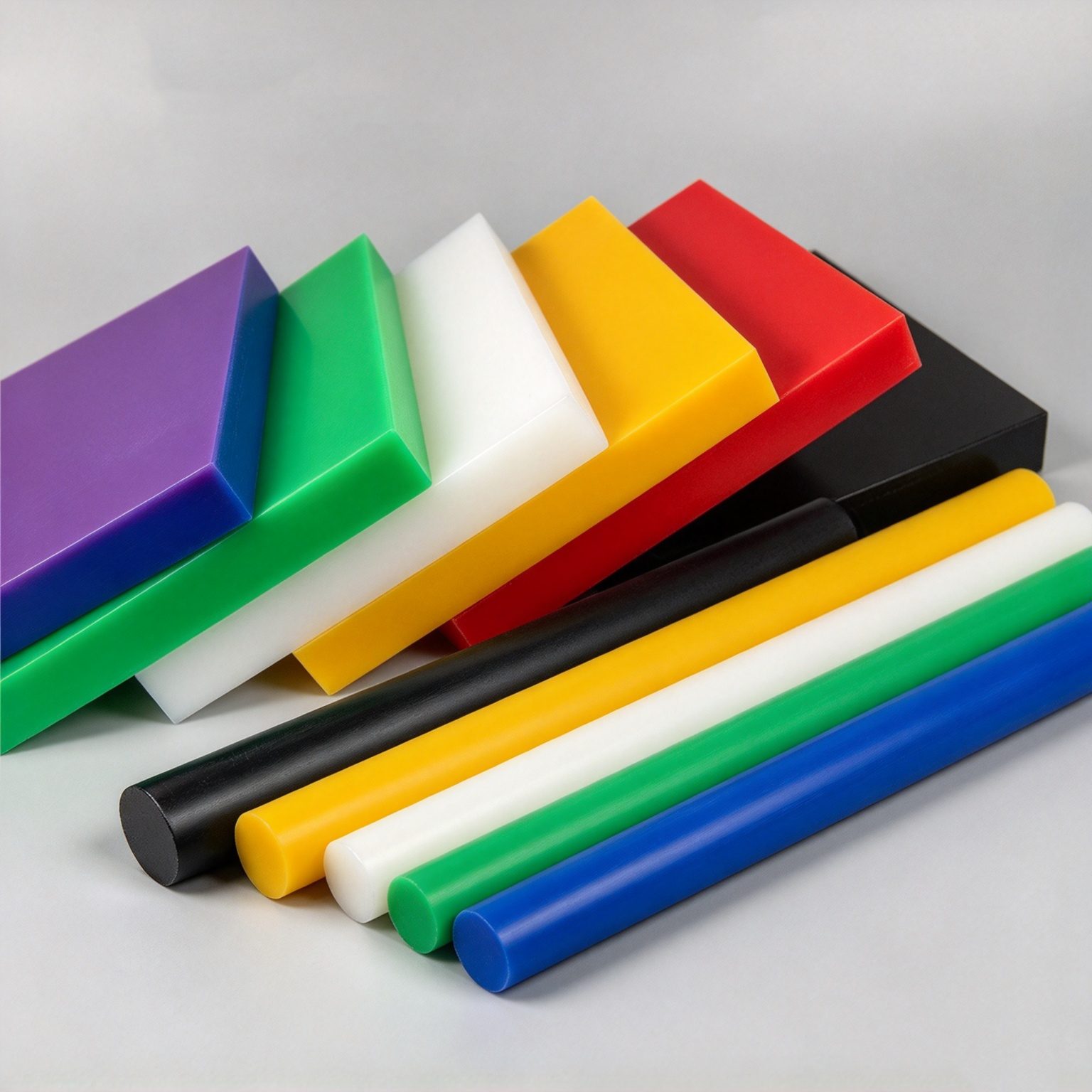

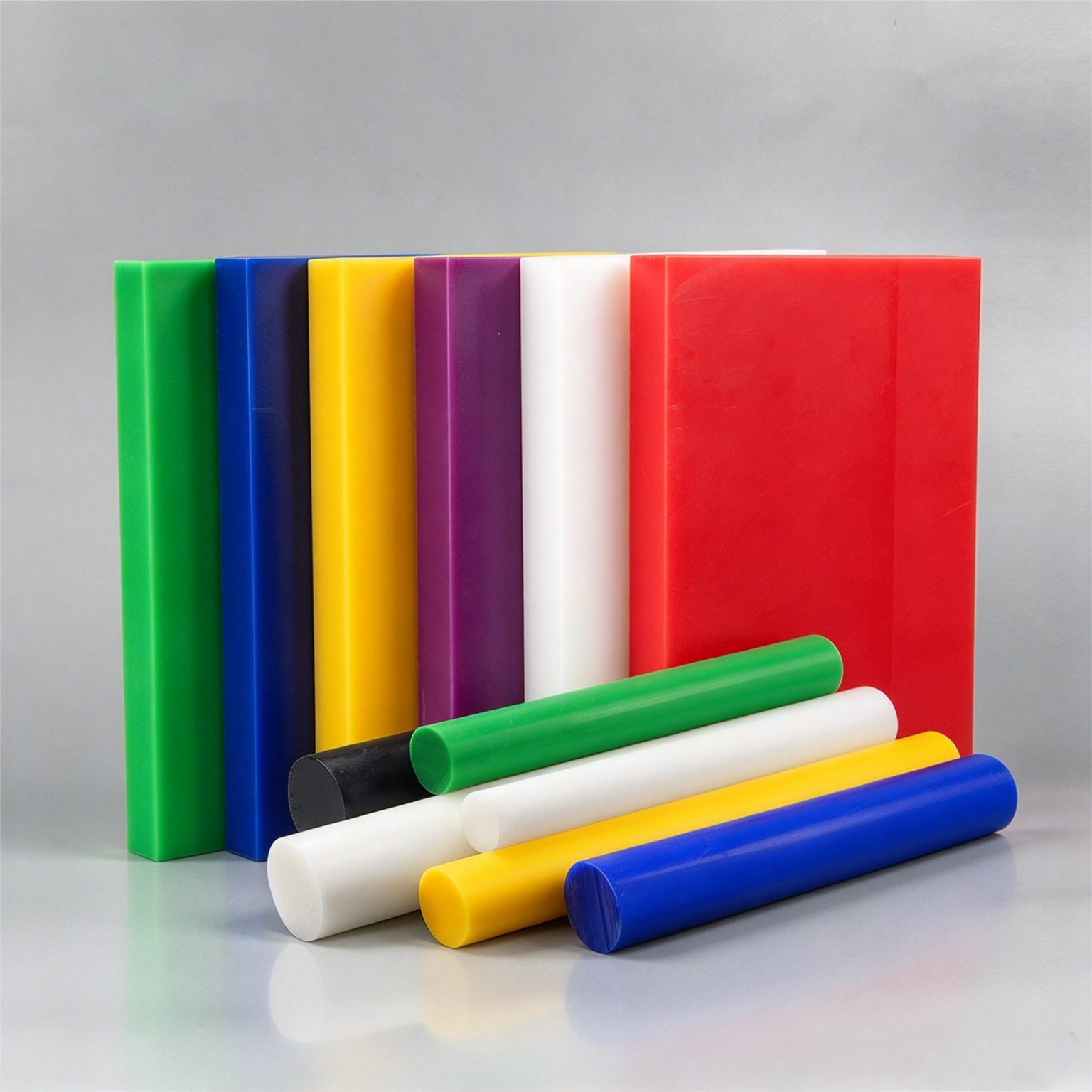

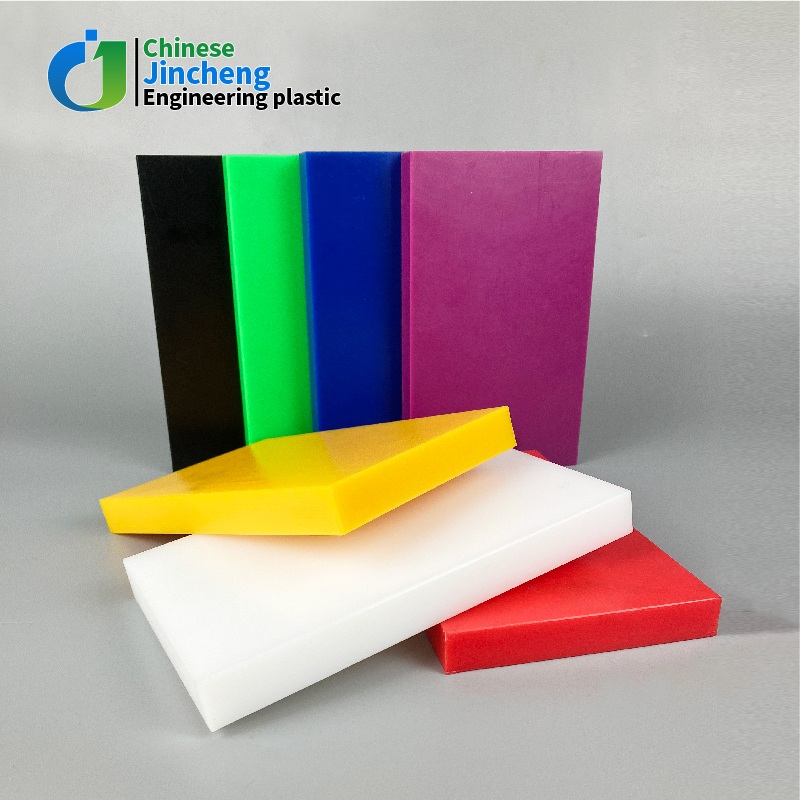

UHMWPE sheet/rod

UHMWPE (Ultra-High Molecular Weight Polyethylene) is high-performance engineering plastic with excellent wear resistance, high impact strength and self-lubricating property. Our UHMWPE sheets & rods are widely machined into liner plates, guide rails, sliding blocks, bushings, hopper liners and port fender boards for food machinery, mining, port, paper and textile industries.

UHMWPE sheet
Size 1010*4080mm, 1220*2440mm, 1250*3050mm, 1260*6180mm, 1290*4080mm, 1320*6200mm, 1540*6080mm, 1550*4100mm, 1630*6130mm, 2050*4100mm etc. customized size
UHMWPE rod
Size 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm, 200mm etc. customized size
Category:

Description

UHMWPE (Ultra-High Molecular Weight Polyethylene) is a high-performance polyethylene plastic famous for superior wear resistance, impact strength and self-lubricating characteristic, widely used for liner plates, guide rails and wear components in food, mining, port and paper industries.

Specification
(Customization available for all items)
UHMWPE sheet
Size 1010*4080mm, 1220*2440mm, 1250*3050mm, 1260*6180mm, 1290*4080mm, 1320*6200mm, 1540*6080mm, 1550*4100mm, 1630*6130mm, 2050*4100mm etc.
Thickness 10-110mm
Color black/white/yellow/green/blue/red/purple, Customized
Molecular weight 3.5 million, 5.0 million, 7.2 million and 10.0 million
MOQ 1 pc
Delivery 3-5 days

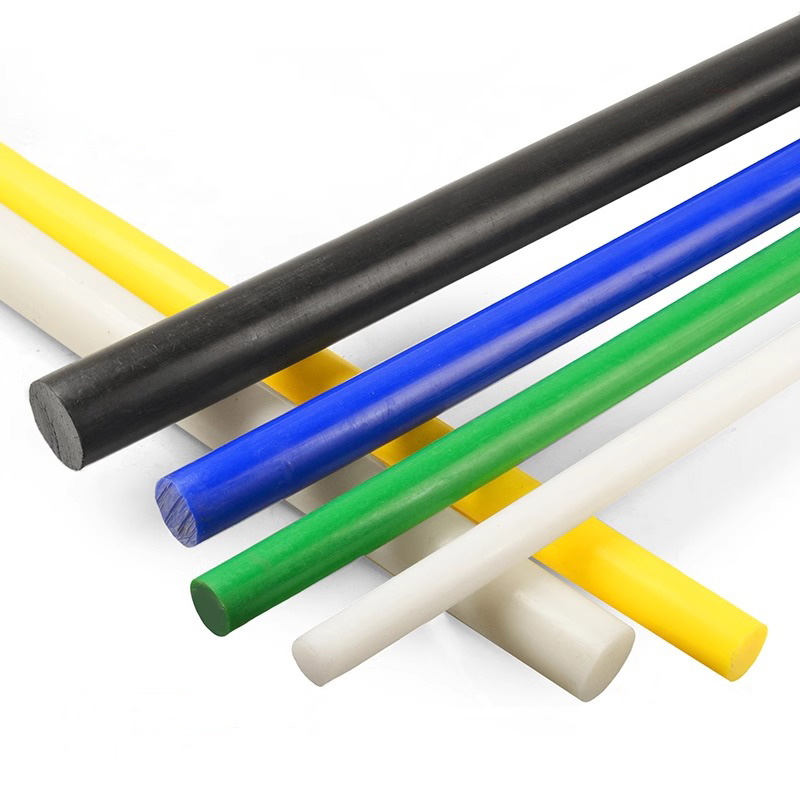

UHMWPE rod
Size 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm, 200mm etc.
Length 1000mm
Color black/white/yellow/green/blue/red/purple, Customized
Molecular weight 3.5 million, 5.0 million, 7.2 million and 10.0 million
MOQ 1 pc
Delivery 3-5 days

Material Properties

Physical property
Test Items Test method Unit Value
General properties DIN 53479 g/cm³ 0.934
Elongation at break ISO 527 % >340
Tensile modulus ISO527 Mpa 1200
Yield stress ISO 527 Mpa 27
Hardness ISO 868 Shore D 67
Melting temperature DIN53736 ℃ 135
Water absorption 24h/RT % <0.01
Friction coefficient     0.01-0.03
Characteristics of UHMWPE Material
wear-resistant Excellent wear resistance among plastics; wear performance improves with higher molecular weight.
impact resistant The impact strength of UHMWPE is related to its molecular weight, peaking at approximately 2 million; as the molecular weight increases beyond this point, the impact strength may decrease.
self-lubricating Low friction coefficient with outstanding self-lubricating property, ideal for bearings and bushings.
corrosion resistant Resistant to most acids, alkalis, water and detergents, except concentrated nitric acid and sulfuric acid.
non-water-absorbing Extremely low water absorption, much less swelling than nylon.
low-temperature resistant It has a heat deflection temperature of 85°C, can be used at temperatures up to 90°C under light loads, and retains ductility at -269°C.
Excellent electrical performance Maintains high resistivity and breakdown voltage over a wide range of temperatures and frequencies.
non-toxic Odorless and tasteless, compliant with FDA & USDA standards, safe for food and pharmaceutical contact.
energy absorption Great ability to absorb impact energy for buffer and shock absorption applications.
UV-resistant Resists ultraviolet radiation, suitable for outdoor exposure.
light in weight Low density, lighter than most engineering plastics, helps reduce overall equipment load.

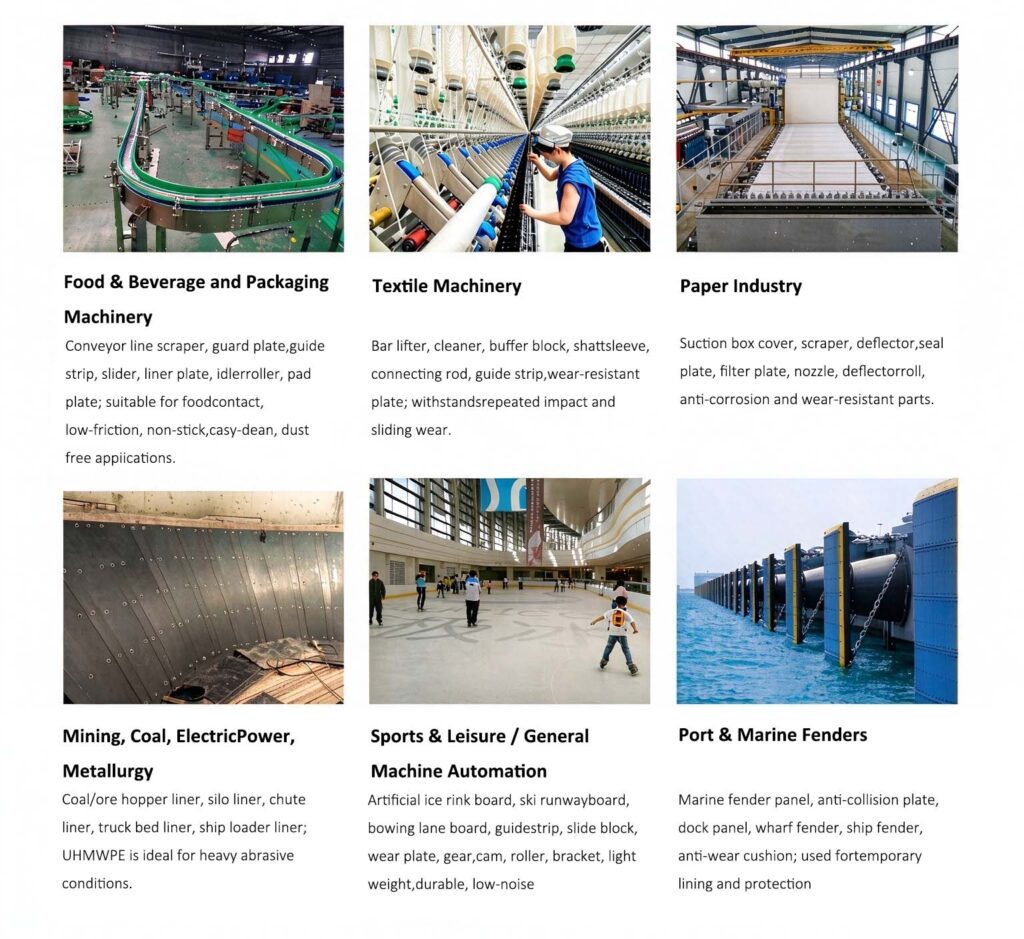

Application

UPE (Ultra-High Molecular Weight Polyethylene) offers excellent wear resistance, corrosion resistance, impact strength, and ease of processing, and is food-grade compliant. It is widely used for wear-resistant parts in conveying machinery, corrosion-resistant components for harsh environments, and shock-absorbing elements. It serves as a material for various mechanical components—such as worms, bushings, sliding plates, guide rails, guide plates, washers, trench covers, hopper liners, partitions, fender panels, temporary roadway mats, and can-turning devices—as well as other machined plastic parts.

Customized products can also be manufactured to meet specific environmental requirements by incorporating special additives, such as rubber-modified sheets, anti-static sheets, radiation-shielding sheets (containing rubber), and UV-resistant sheets.

Food & Beverage and Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.


Food & Beverage and Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.
Food & Beverage and Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.
Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.
Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.
Packaging Machinery

Conveyor line scraper, guard plate,guide strip, slider, liner plate, idlerroller, pad plate; suitable for foodcontact,low-friction, nonstick,casy-dean, dust free applications.

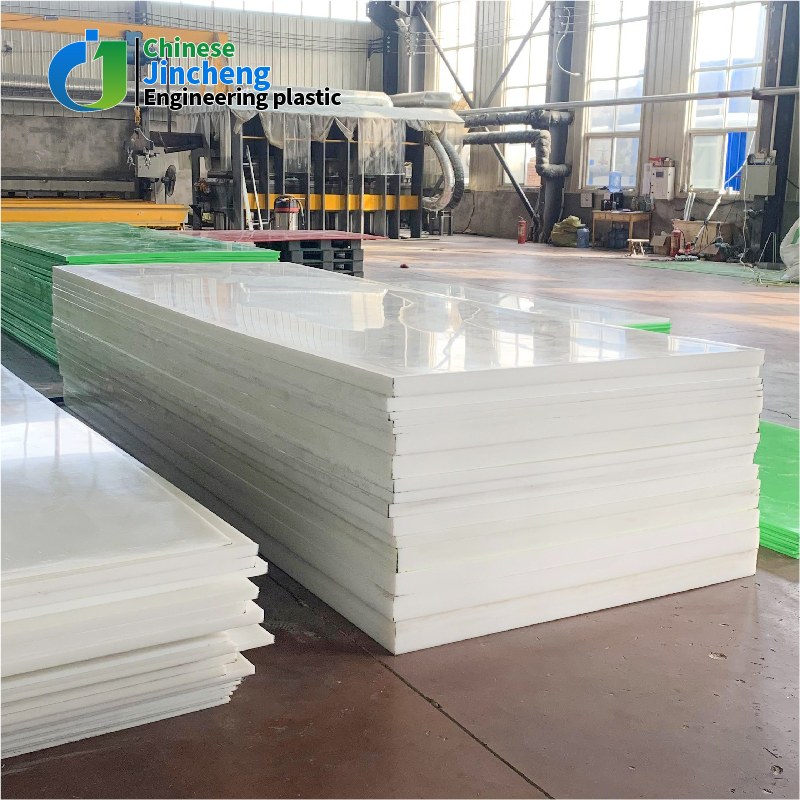

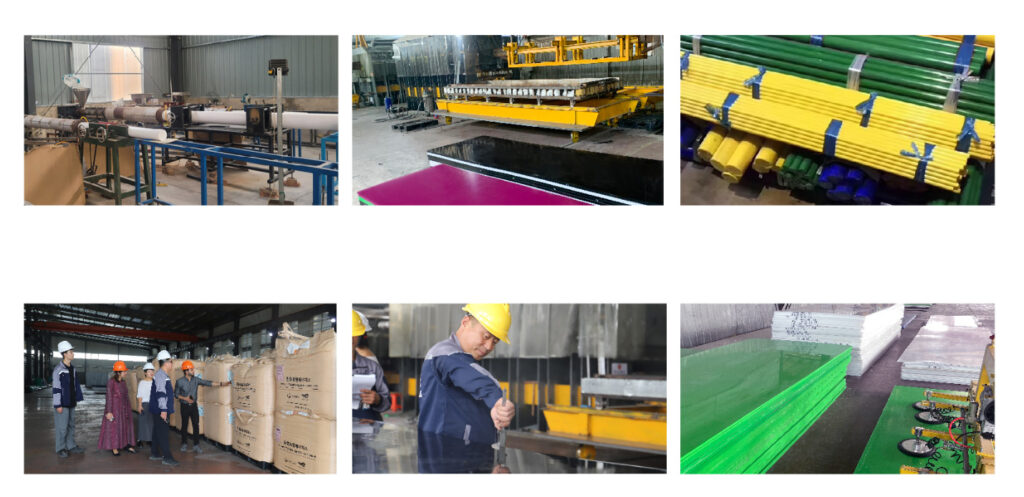

Factory

Factory covers an area of ​​20,000 square meters, is equipped with 150 production units, and has an annual output exceeding 10,000 tons, enabling end-to-end production ranging from engineering plastic raw materials to finished machined parts.

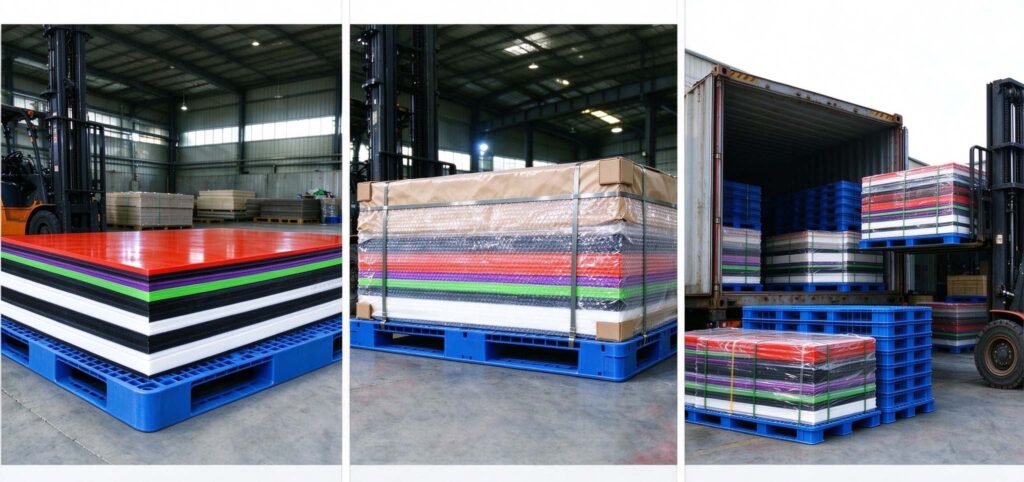

Shipping&Package



FAQ

FAQs:
1. Do you use brand-new UHMWPE material?
Yes, we use 100% virgin PE1000 raw material; no recycled plastic is included.
2. Can you customize dimensions and thickness?
Yes, we accept customization for all sizes, thicknesses, and colors.
3. What are your MOQ and lead time?
The MOQ is one sheet. In-stock items ship within 3 days, while customized products ship within 7–10 days.
4. Do you provide test certificates?
We can provide material property reports; customers may also designate third-party laboratories, such as SGS, for testing.
5. What payment methods do you accept?
Price terms: EXW, FOB, CIF & CFR, DDP.
Payment terms: Generally 30% deposit and 70% balance via T/T.
