HDPE sheet/rod

HDPE (High Density Polyethylene) is a common engineering plastic. It features excellent chemical resistance, low water absorption, good impact resistance and electrical insulation. Non-toxic and recyclable, it can be processed into sheets and rods, widely used in food equipment, chemical industry, water treatment and machinery fields.

Specification
(Customization available for all items)
HDPE sheet
Size Width 1000-2440mm, length 1000-12000mm
HDPE rod
Diameter 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 145mm, 150mm, 160mm, 170mm, 180mm, 200mm etc.
Category:

Description

HDPE (High Density Polyethylene) is a common engineering plastic. It features excellent chemical resistance, low water absorption, good impact resistance and electrical insulation. Non-toxic and recyclable, it can be processed into sheets and rods, widely used in food equipment, chemical industry, water treatment and machinery fields.

Specification
(Customization available for all items)

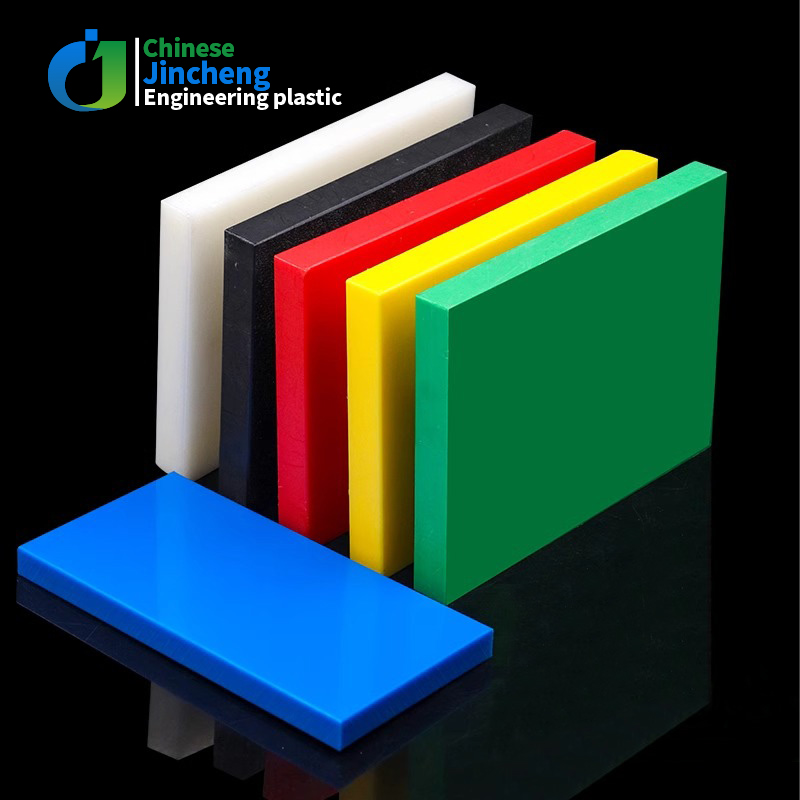

HDPE sheet
Size Width 1000-2440mm, length 1000-12000mm
Thickness 3-50mm
Color black/white/yellow/green/blue/red, Customized
MOQ 1 pc
Lead time 3-5 days

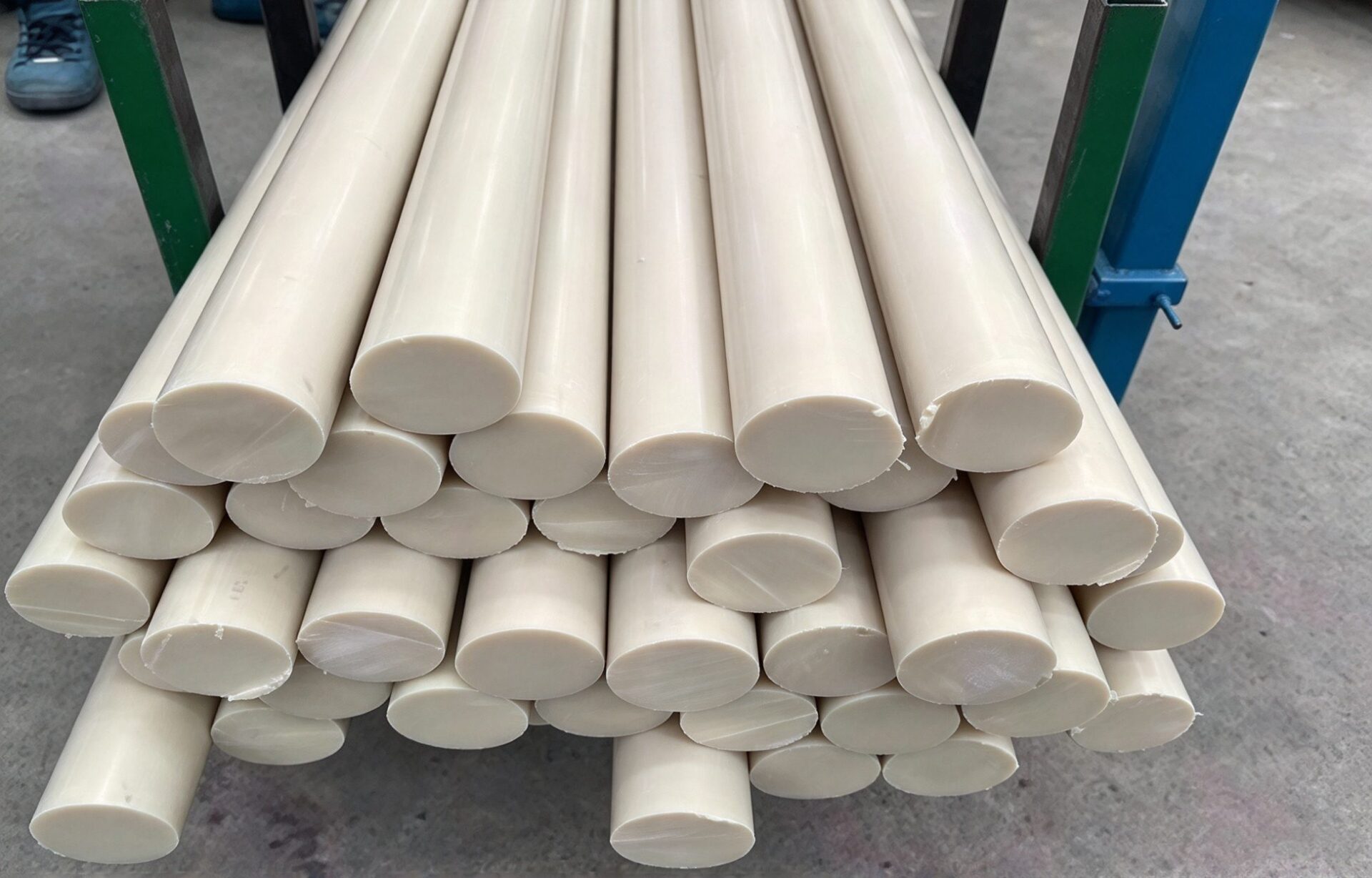

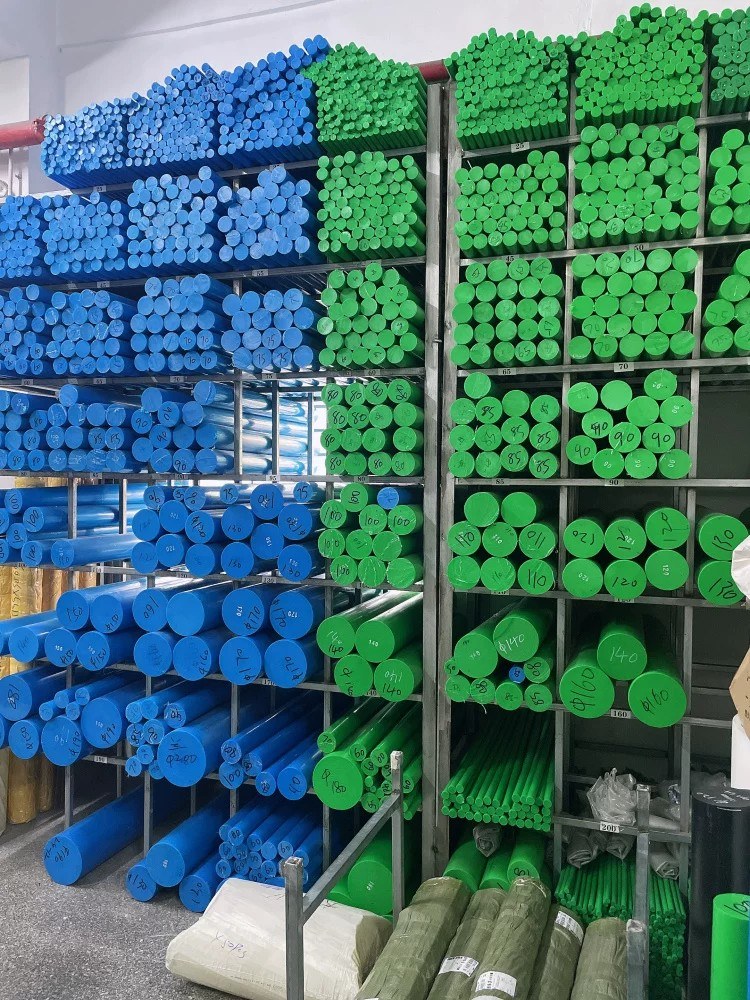

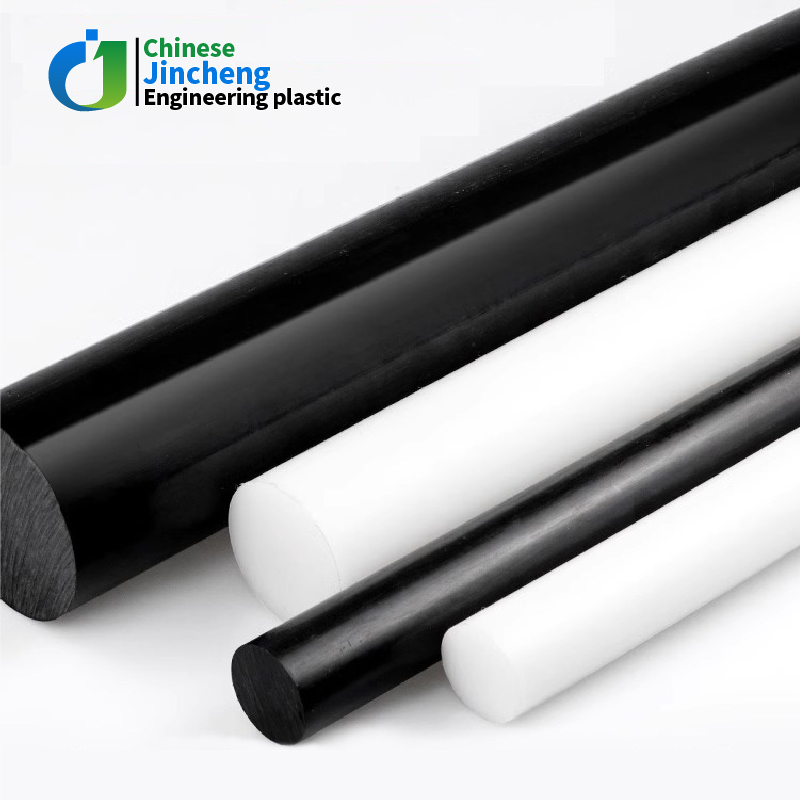

HDPE rod
Diameter 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 145mm, 150mm, 160mm, 170mm, 180mm, 200mm etc.
Length 1000mm
Color black/white/green/blue/red, Customized
MOQ 1 pc
Lead time 3-5 days

Material Properties

HDPE belongs to the polyethylene family; it features a relatively narrow molecular weight distribution, a crystallinity of 80–90%, and a natural milky-white appearance (with a translucent quality in film form). With a density of 0.941–0.965 g/cm³—making it lighter than water—it is a widely used general-purpose engineering plastic. Although it belongs to the same PE family as LDPE and LLDPE, it has a significantly lower molecular weight.

Features Description
Excellent chemical resistance Resistant to most acid, alkali and salt solutions and organic solvents. It does not absorb water and is mould-proof. Suitable for chemical pipelines and sewage panels. Not resistant to strong oxidants (concentrated nitric acid).
Balanced mechanical properties Its rigidity, tensile strength and hardness are higher than LDPE. It has good low-temperature toughness and impact resistance, and excellent resistance to environmental stress cracking.
Non-toxic & eco-friendly, food grade Tasteless, complies with food contact standards. Can be used for food containers and food conveying base plates.
Easy to process & recyclable Melting point: 120-135°C, good fluidity. Suitable for hot bending, welding and CNC machining. Its processing cost is lower than UPF. 100% recyclable and remanufacturable.
Outstanding insulation performance Water absorption is nearly zero. Suitable for wire & cable insulation and electrical insulation base plates.
Low water absorption Barely absorbs water, and maintains stable dimensions in humid environments.
Basic Performance Parameters
Category Item Typical Value Unit Test Standard
Basic Physical Properties Density 0.941-0.965 g/cm³ ASTM D792
Water absorption (24h) <0.01 % ASTM D570
Mechanical Properties Yield tensile strength 20-37 MPa ASTM D638
Elongation at break 100~600 % ASTM D638
Thermal Properties Melting point 120-130 °C DSC
Continuous service temperature -40 ~ +80 °C –
Heat deflection temperature (0.45MPa) 70-100 °C ASTM D648
Linear thermal expansion coefficient 11-13×10⁻⁵ /°C ASTM D696
Electrical Properties Dielectric strength 20-30 kV/mm ASTM D149
Volume resistivity >10¹⁴ Ω·cm ASTM D257





Application

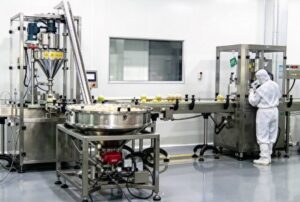

Food & Beverage Machinery
1. Equipment backing plates, mechanical lining plates, corrosion-resistant sheets
2. Conveyor platform plates, assembly line anti-stick plates, wear-resistant plates

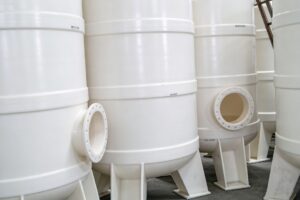

3. Food-contact cutting boards, chopping boards		 Chemical, Environmental & Water Treatment Industries
1. Pickling tanks, electroplating tanks, wastewater treatment lining plates, corrosion-resistant tank bodies
2. Storage tank lining plates, anti-corrosion lining plates, pickling workpiece lining plates
3. Battery separator plates, anti-corrosion flange gaskets, umbrella-plate anti-corrosion machined parts		 General Automation Machinery & Conveying
1. Wear-resistant conveyor base plates, equipment base plates, insulating support plates
2. Conveyor line anti-slip plates, anti-stick baffles, mounting base plates
3. Fixture backing plates, positioning plates

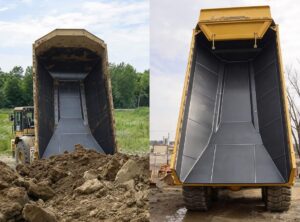

Mining, Earthwork, Logistics & Warehousing
1. Wear-resistant chute lining plates
2. Warehousing spacer plates, cargo anti-stick plates, simple cargo container liners
3. Wear-resistant silo lining plates		 Power & Electrical Industry
1. Electrical insulation base plates, low-voltage external insulation boards, insulation supports

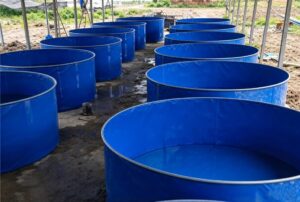

2. Electrical insulation base plates, distribution box bottom plates, insulating support plates		 Aquaculture & Farming Industry
1. Aquaculture tank partition plates, reservoir lining plates, aquaculture trough plates
2. Anti-slip plates for aquaculture

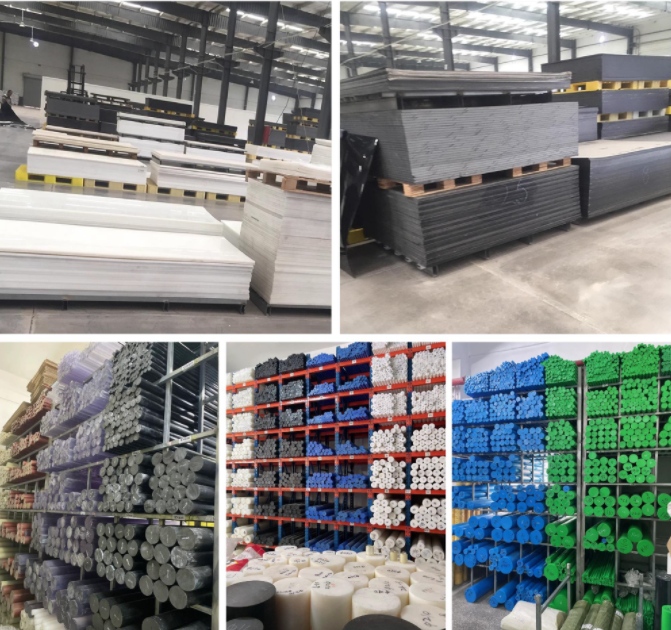

Factory

Factory covers an area of ​​20,000 square meters, is equipped with 150 production units, and has an annual output exceeding 10,000 tons, enabling end-to-end production ranging from engineering plastic raw materials to finished machined parts.

Shipping&Package

FAQ

1. Do you use brand-new HDPE material?
Yes, we use 100% virgin HDPE raw material; no recycled plastic is included.
2. Can you customize dimensions and thickness?
Yes, we accept customization for all sizes, thicknesses, and colors.
3. What are your MOQ and lead time?
The MOQ is one sheet. In-stock items ship within 3 days, while customized products ship within 7–10 days.
4. Do you provide test certificates?
We can provide material property reports; customers may also designate third-party laboratories, such as SGS, for testing.
5. What payment methods do you accept?
Price terms: EXW, FOB, CIF & CFR, DDP.
Payment terms: Generally 30% deposit and 70% balance via T/T.
