Conveyor Chains & Modular Belts

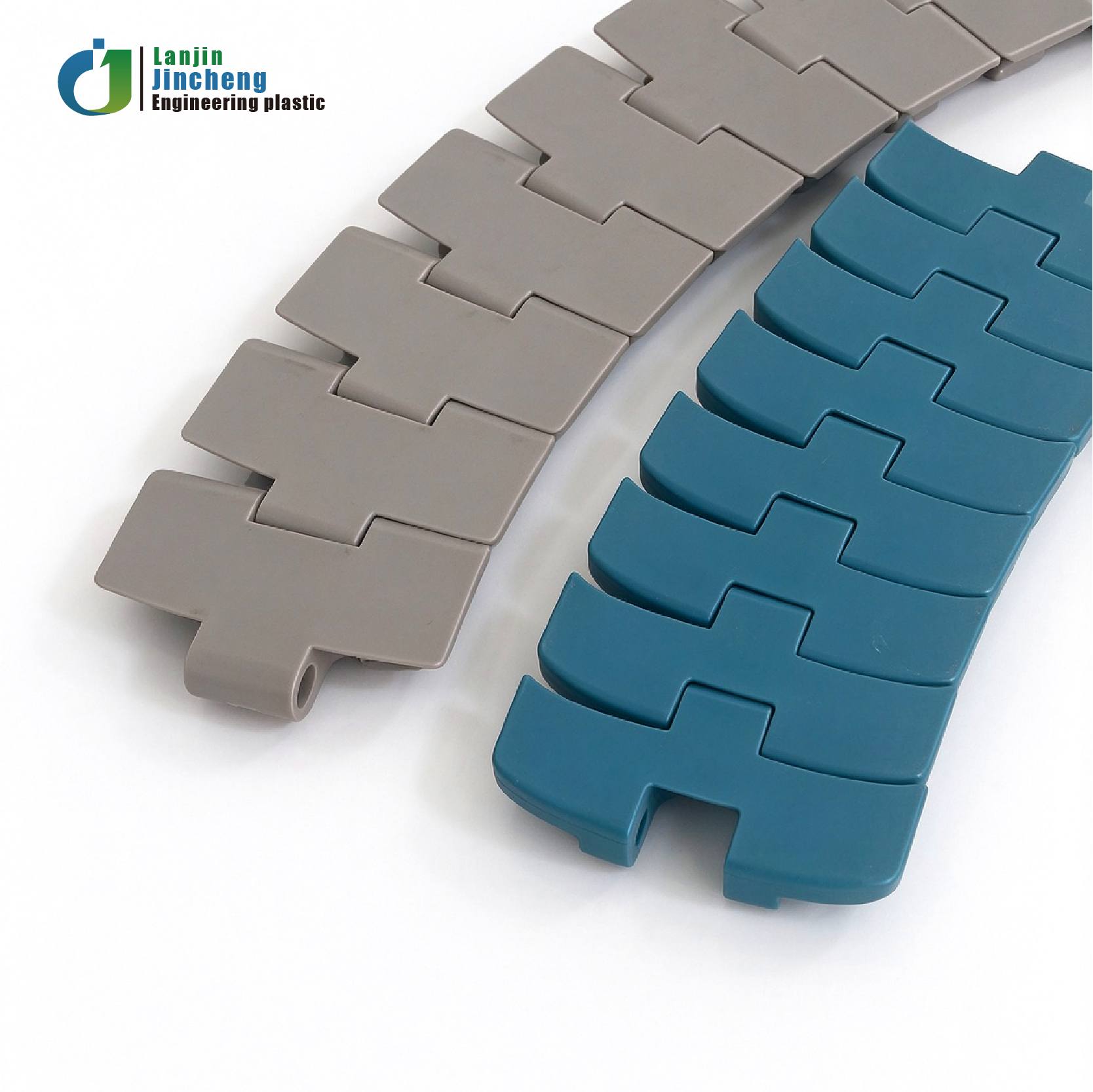

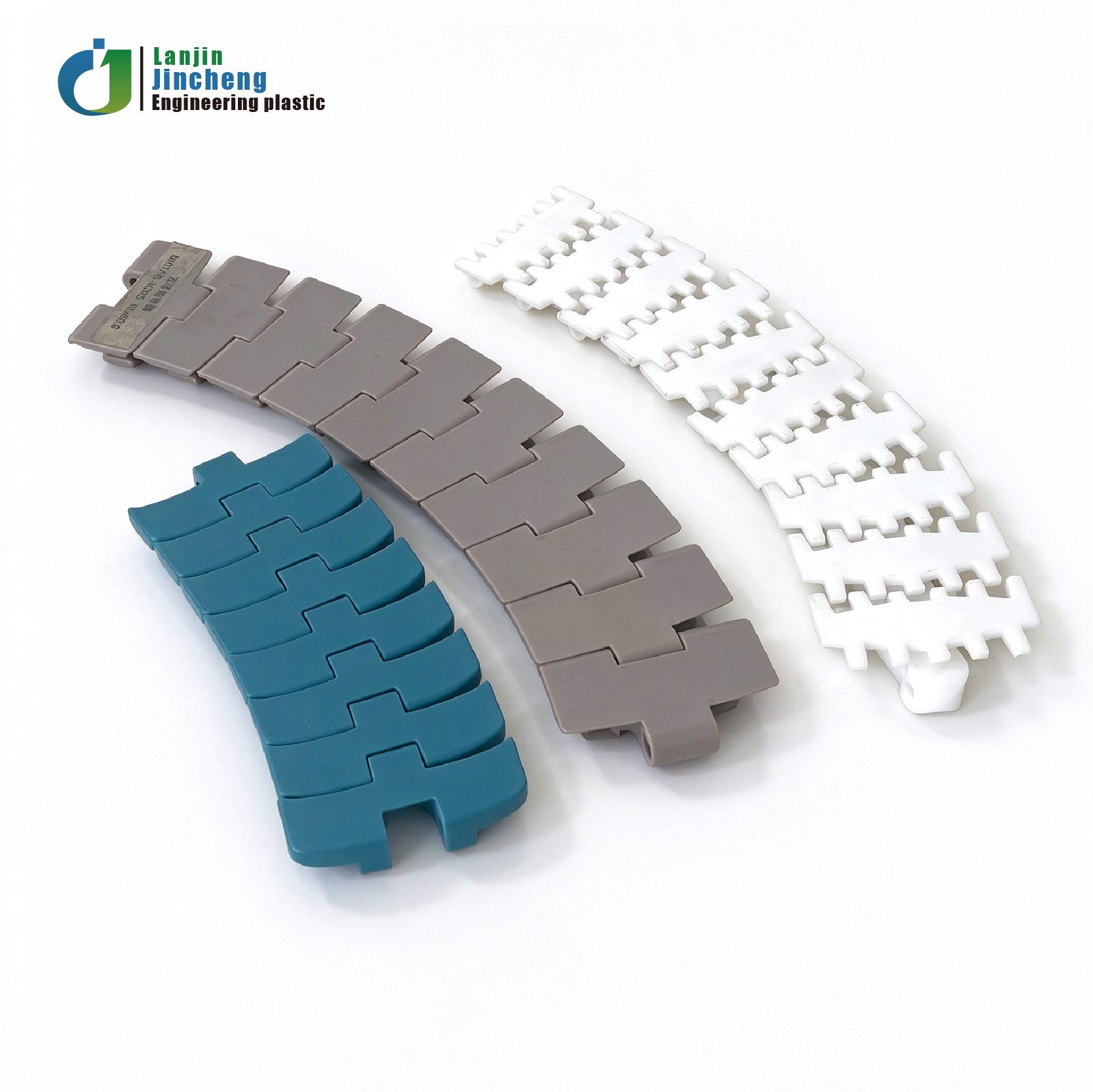

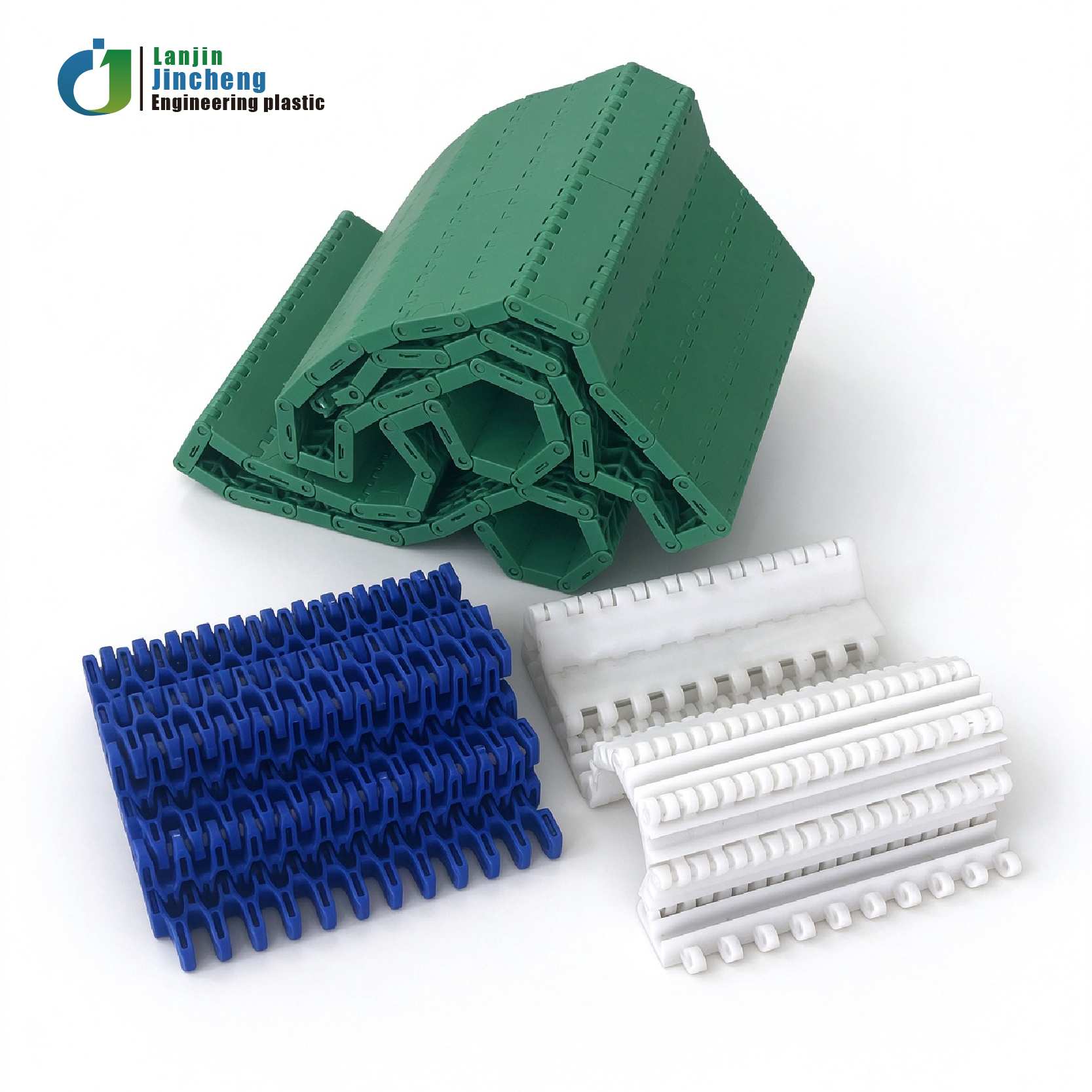

Conveyor chains are rigid plastic links hinged with pins—solid flat plates driven by sprockets for straight or side-flexing transport of bottles and cans. Modular belts are interlocking grid/mesh plastic modules forming a continuous, drainable belt for washing, cooling and wide loads. Both are mainly POM (−30 °C to +90 °C), used in food, beverage and packaging lines.

Common types:

1.40P/60P Plastic Chain
2. 821 Double Hinge Straight Running Chain
3. 880 Series Dovetail Type
4. 880M Magnetic Side-flexing Chain
5. 880TAB-RT Small Radius Side-flexing Chain
6. 882TAB π-Guide Side-flexing Chain
7. 1060 Heavy-duty Side-flexing Chain
8. 5935 Modular Belt
9. 7100 Flat Top Modular Belt

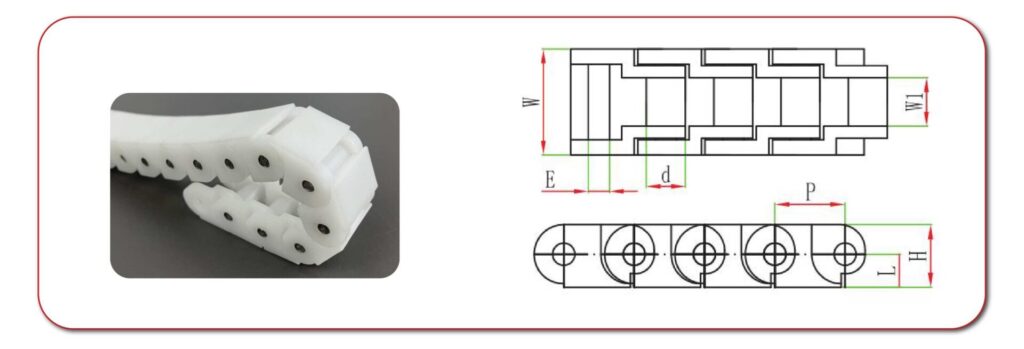

1.40P/60P Plastic Chain

Model	Width W (mm)	W1 (mm)	Pitch P (mm)	E (mm)	H (mm)	L (mm)	d (mm)
40P	20	8	12.7	4	12.7	6.4	7.94
60P	30	13.6	19.05	6	17	9	11
Suitable for low-noise, light-weight, non-magnetic and anti-static applications; widely used in chemical, electronic and pharmaceutical manufacturing equipment.
Material: POM, color white; operating temperature -30°C to +90°C.
Pin material: cold-rolled austenitic stainless steel; 60P is available with PP pins.
Working load (POM): 40P = 440 N; 60P = 880 N.
Packaging: each strand length 1.524 m.
Sprocket: 40P uses 08A standard roller-chain sprocket; 60P uses 60-chain sprocket.
Weight: 40P = 0.57 kg/strand; 60P = 1.14 kg/strand.

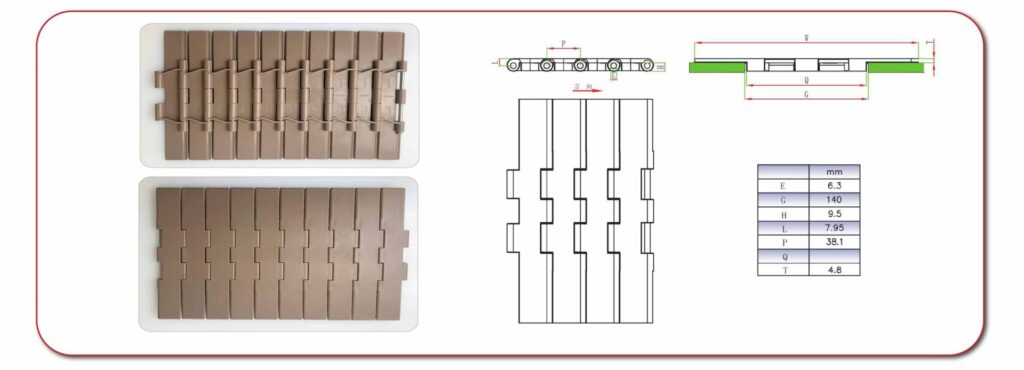

2. 821 Double Hinge Straight Running Chain

Drawing Dim.	E	G	H	L	P / T
Value (mm)	6.3	140	9.5	7.95	P=38.1, T=4.8
Chain Model	Width (mm)	Weight (kg/m)	Q Value (mm)	Reverse Bending Radius (mm)
821-K750	190.5	2.48	133.5	50
821-K1000	254	2.73	136.5	50
821-K1200	304.8	3.22	137.8	50
Suitable for conveying food, beverages, PET bottles, aluminum cans and various containers.
Material: POM, coffee / brown color; operating temperature -30°C to +90°C.
Pin material: cold-rolled austenitic stainless steel.
Max speed: 50 m/min with lubricant; 30 m/min dry.
Working load (25°C): 2680 N; maximum conveyor length 15 m.

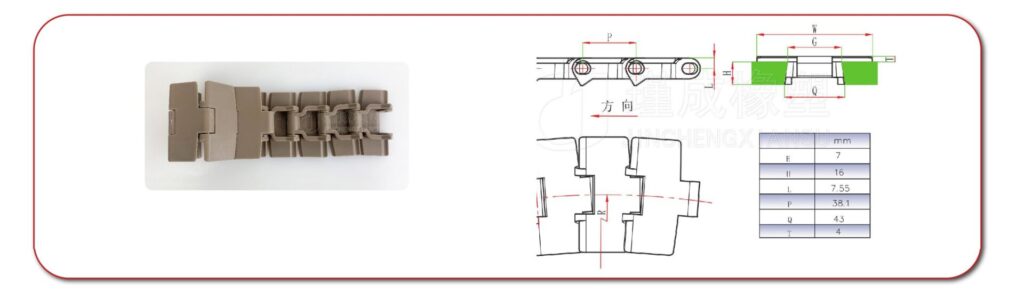

3. 880 Series Dovetail Type

Drawing Dim.	E	H	L	P	Q / T
Value (mm)	7	16	7.55	38.1	Q=43, T=4
Chain Model	Width (mm)	Weight (kg/m)	Reverse Bending Radius (mm)	Turning Radius (mm)
880-K325	82.6	0.89	75	500
880-K450	114.3	1.04	75	610
• Suitable for conveying food, beverages, PET bottles, aluminum cans and various containers.
• Material: POM, coffee / brown color; operating temperature -30°C to +90°C.
• Pin material: cold-rolled austenitic stainless steel.
• Max speed: 50 m/min with lubricant; 30 m/min dry.
• Working load (25°C): 2100 N; maximum conveyor length 9 m.

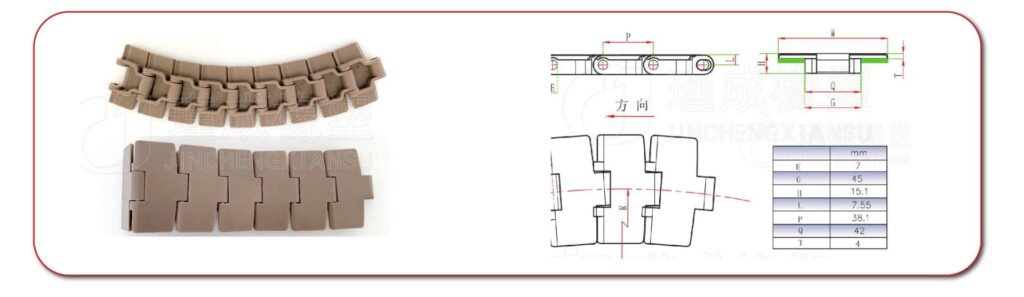

4. 880M Magnetic Side-flexing Chain

Drawing Dim.	E	G	H	L	P / Q / T
Value (mm)	7	45	15.1	7.55	P=38.1, Q=42, T=4
Chain Model	Width (mm)	Weight (kg/m)	Reverse Bending Radius (mm)	Turning Radius (mm)
880M-K325	82.6	1.03	75	500
• Suitable for conveying food, beverages, PET bottles, aluminum cans and various containers.
• Material: POM, coffee / brown color; operating temperature -30°C to +90°C.
• Pin material: carbon steel.
• Max speed: 50 m/min with lubricant; 30 m/min dry.
• Working load (25°C): 2100 N; maximum conveyor length 9 m.

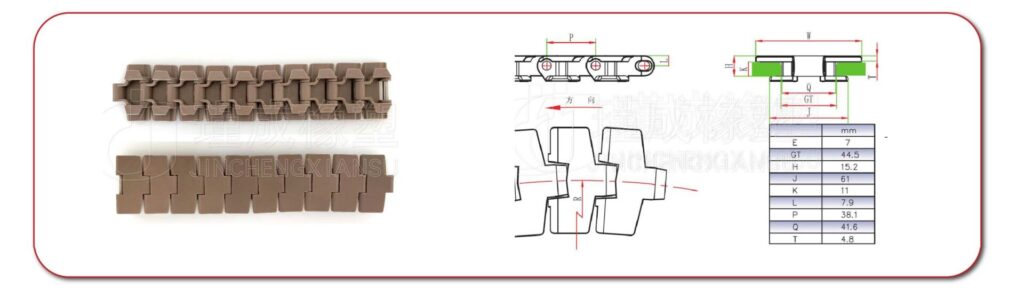

5. 880TAB-RT Small Radius Side-flexing Chain

Drawing Dim.	E	GT	H	J	K / L / P / Q / T
Value (mm)	7	44.5	15.2	61	K=11, L=7.9, P=38.1, Q=41.6, T=4.8
Chain Model	Width (mm)	Weight (kg/m)	Reverse Bending Radius (mm)	Turning Radius (mm)
880TAB-RT-K325	82.6	1.05	75	200
880TAB-RT-K450	114.3	1.15	75	200
• Suitable for light-load applications and 360° turning conveyors.
• Material: POM, coffee / brown color; operating temperature -30°C to +90°C.
• Pin material: cold-rolled austenitic stainless steel.
• Max speed: 50 m/min with lubricant; 30 m/min dry.
• Working load (25°C): 2100 N; maximum conveyor length 12 m.

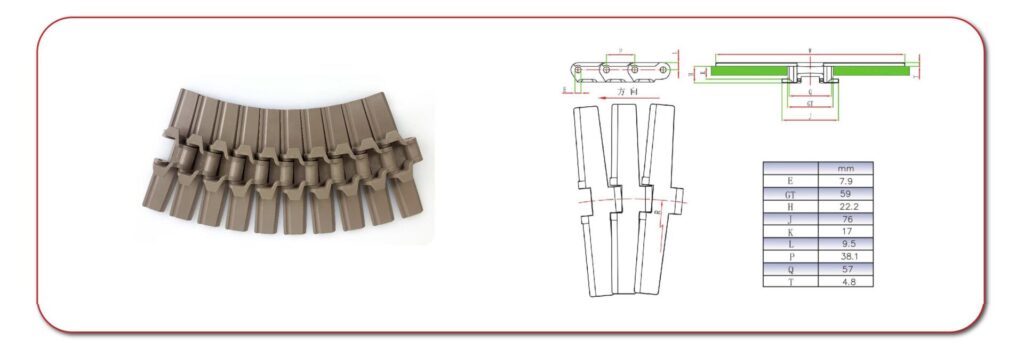

6. 882TAB π-Guide Side-flexing Chain

Drawing Dim.	E	GT	H	J	K / L / P / Q / T
Value (mm)	7.9	59	22.2	76	K=17, L=9.5, P=38.1, Q=57, T=4.8
Chain Model	Width (mm)	Weight (kg/m)	Reverse Bending Radius (mm)	Turning Radius (mm)
882TAB-K500	127	1.9	75	610
882TAB-K600	152.4	2.1	75	610
882TAB-K750	190.5	2.38	75	610
882TAB-K1000	254	2.69	75	610
882TAB-K1200	304.8	2.94	75	610
• Suitable for conveying food, beverages, PET bottles, aluminum cans and various containers.
• Material: POM, coffee / brown color; operating temperature -30°C to +90°C.
• Pin material: cold-rolled austenitic stainless steel.
• Max speed: 50 m/min with lubricant; 30 m/min dry.
• Working load (25°C): 3830 N; maximum conveyor length 15 m.

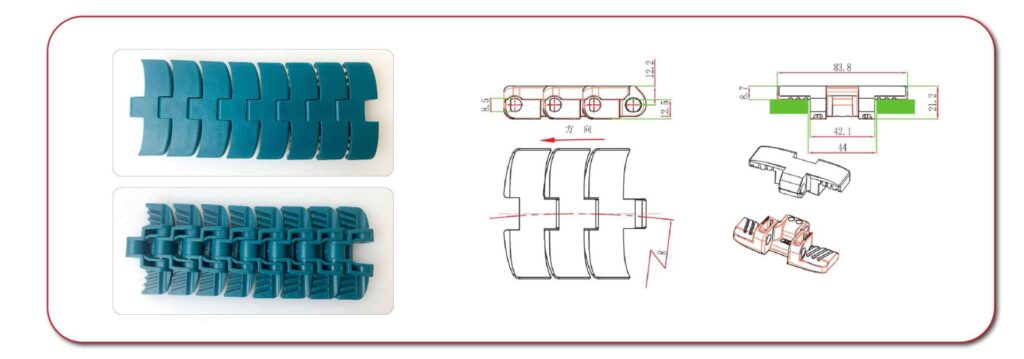

7. 1060 Heavy-duty Side-flexing Chain

Drawing Dim.	83.8 (W)	21.2	12.2	8.7	42.1 / 44 / 8.5 / 12.5
Value (mm)	overall width	height	pin line	side wall	support dims (mm)
Chain No.	Width (mm)	Weight (kg/m)	Reverse Bending Radius (mm)	Turning Radius (mm)
1060-K325	83.8	1.9	130	500
• Suitable for conveying food, beverages, PET bottles, aluminum cans and various containers.
• Material: POM, dark green color; operating temperature -30°C to +90°C.
• Pin material: cold-rolled austenitic stainless steel.
• Max speed: 50 m/min with lubricant; 30 m/min dry.
• Working load (25°C): 1710 N; maximum conveyor length 12 m.

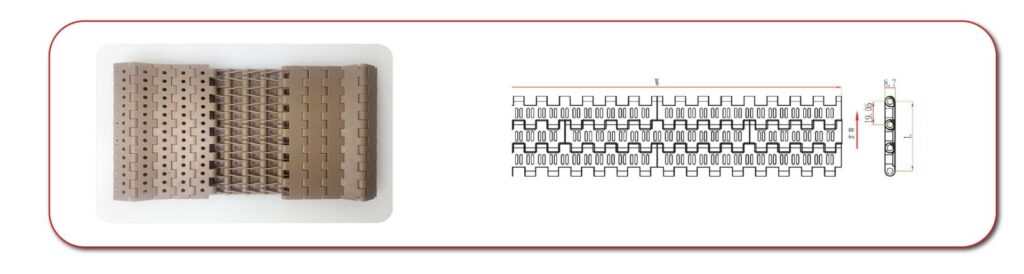

8. 5935 Modular Belt

Item	Specification
Standard belt width W	W = 76.2 × N  (available: 76.2, 152.4, 228.6, 304.8, 381, 457.2, 533.4, 609.6, 685.8, 762 mm)
Non-standard width W	W = 76.2 × N + 19 × n
Note	N, n are integer multiples; due to material shrinkage the actual width is slightly below the nominal value.
• Suitable for food, beverages, pharmaceutical, chemical injection-molded parts and packaging-machine conveyors.
• Belt material: POM; operating temperature -30°C to +90°C.
• Pin material: polypropylene (PP).
• Belt working load: 10500 N/m (POM); 5840 N/m (PP).
• Belt color: coffee / brown.
• Belt weight: 5.96 kg/m.

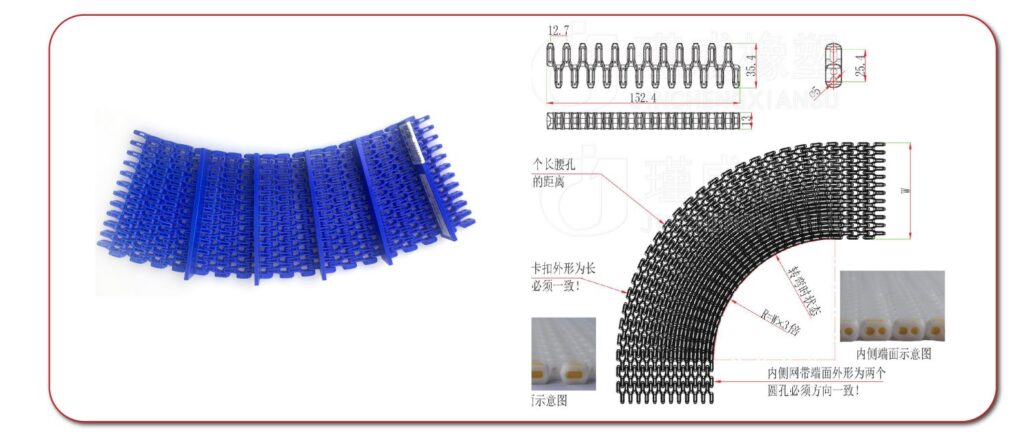

9. 7100 Series Modular Plastic Belt (Grid Type)

Item	Specification	Item	Specification
Series	7100 Modular Plastic Belt (Grid)	Pitch P	25.4 mm
Belt material	POM	Belt color	Blue, White
Clip material	POM	Clip color	Yellow
Belt working load	15000 N/m	Open area	55%
Belt weight	6.8 kg/m²	Turning inner radius R	R = 3 × belt width W
Standard width	76.2 × N	Non-standard width	76.2 × N + 12.7n  (N/n are integer multiples)
• Suitable for meat, poultry, fruits, vegetables, bread, beverages and other items for horizontal turning and low-tension spiral conveying.
• Turning belt: pitch 25.4 mm, thickness 13 mm; turning inner radius R = 3 × belt width W.
• The 7100 grid modular belt has an oblong hole at one end of each module, giving poor pin control. When turning, the outer tension is very high and the inner tension is zero. Standard pin: diameter 5 mm, PP material; it can be replaced with metal pins to increase belt tension.

Q1: What material are these conveyor chains made of?
A: Main body is POM (acetal); hinge pins are stainless‑steel. Modular belts can also be PP. Operating temperature range: ‑30℃ ~ +90℃.
Q2: Can the side‑flexing chains make 360‑degree turns?
A: Yes. Side‑flex table‑top chains are designed for curved / 360‑degree loop conveyor layouts. Straight‑run models cannot bend sideways.
Q3: What is the maximum running speed?
A: Max 50 m/min with lubrication; 30 m/min when running dry without lubricant.
Q4: Can I get custom widths?
A: Widths follow standard model sizes. Custom widths are not available; select from our existing product series.
Q5: What industries commonly use these products?

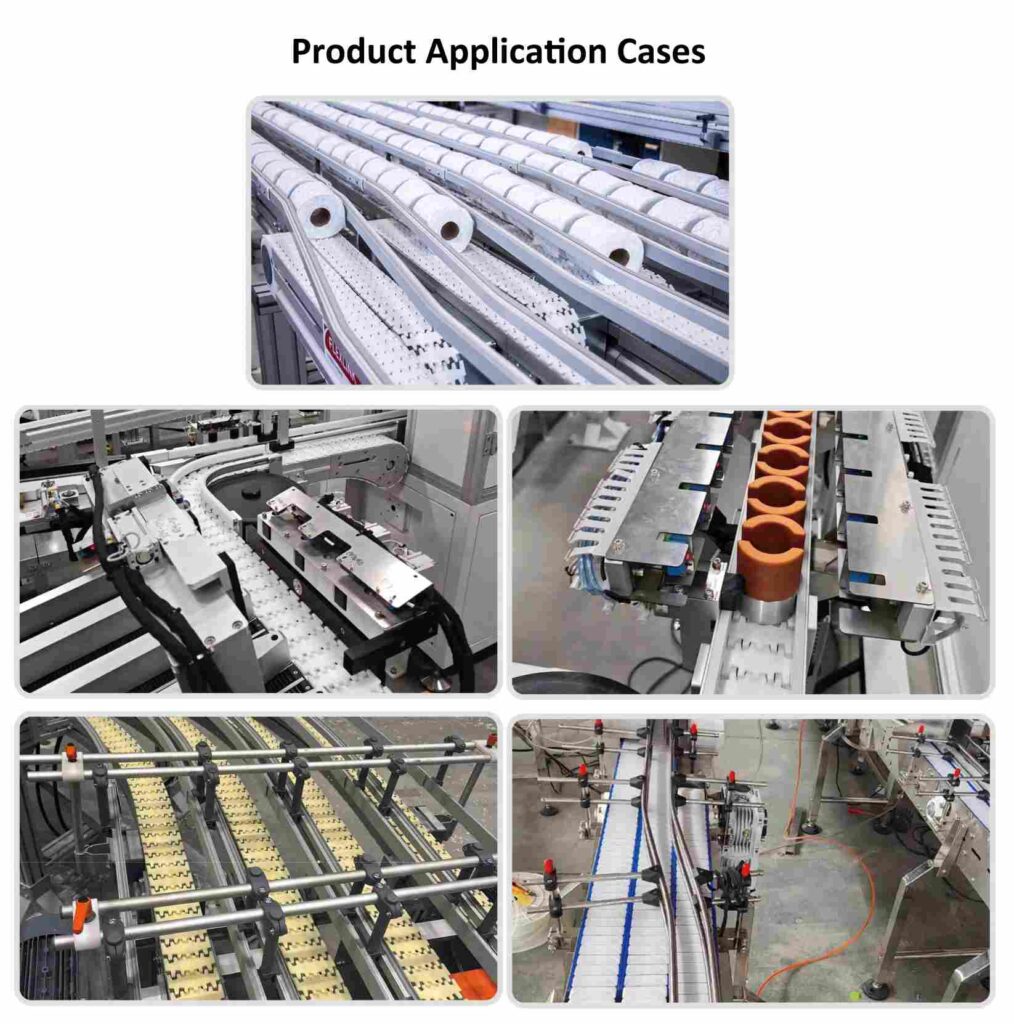

A: Mostly food & beverage bottling, canning, pharmaceutical and packaging production lines.
Q6: What is the difference between conveyor chains and modular belts?
A: Conveyor chains are pin‑hinged flat links for bottle conveying. Modular belts are interlocking mesh‑style belts for draining, cooling and wider conveying surfaces.
