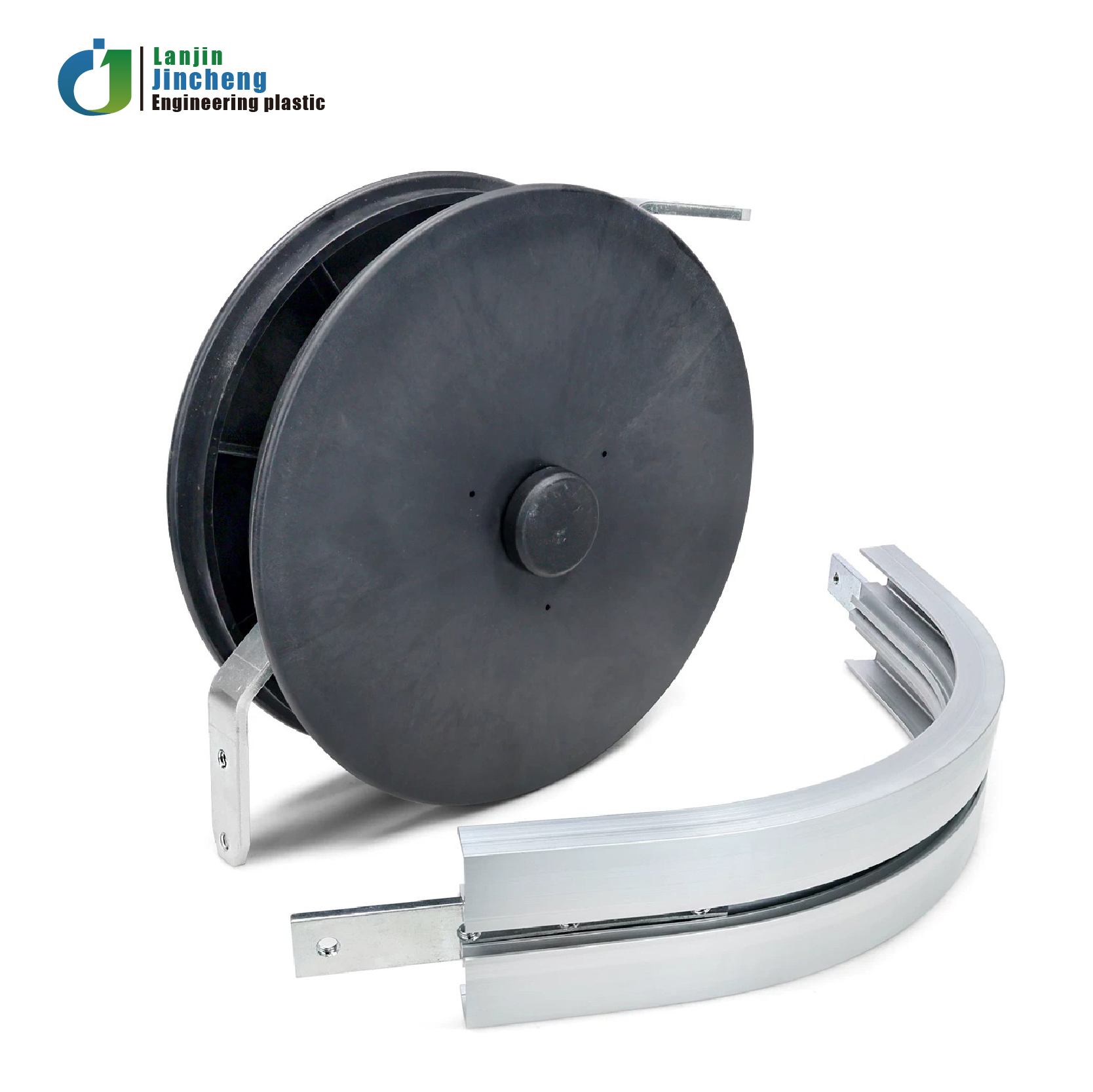

Flexible Chain Corner Wheels

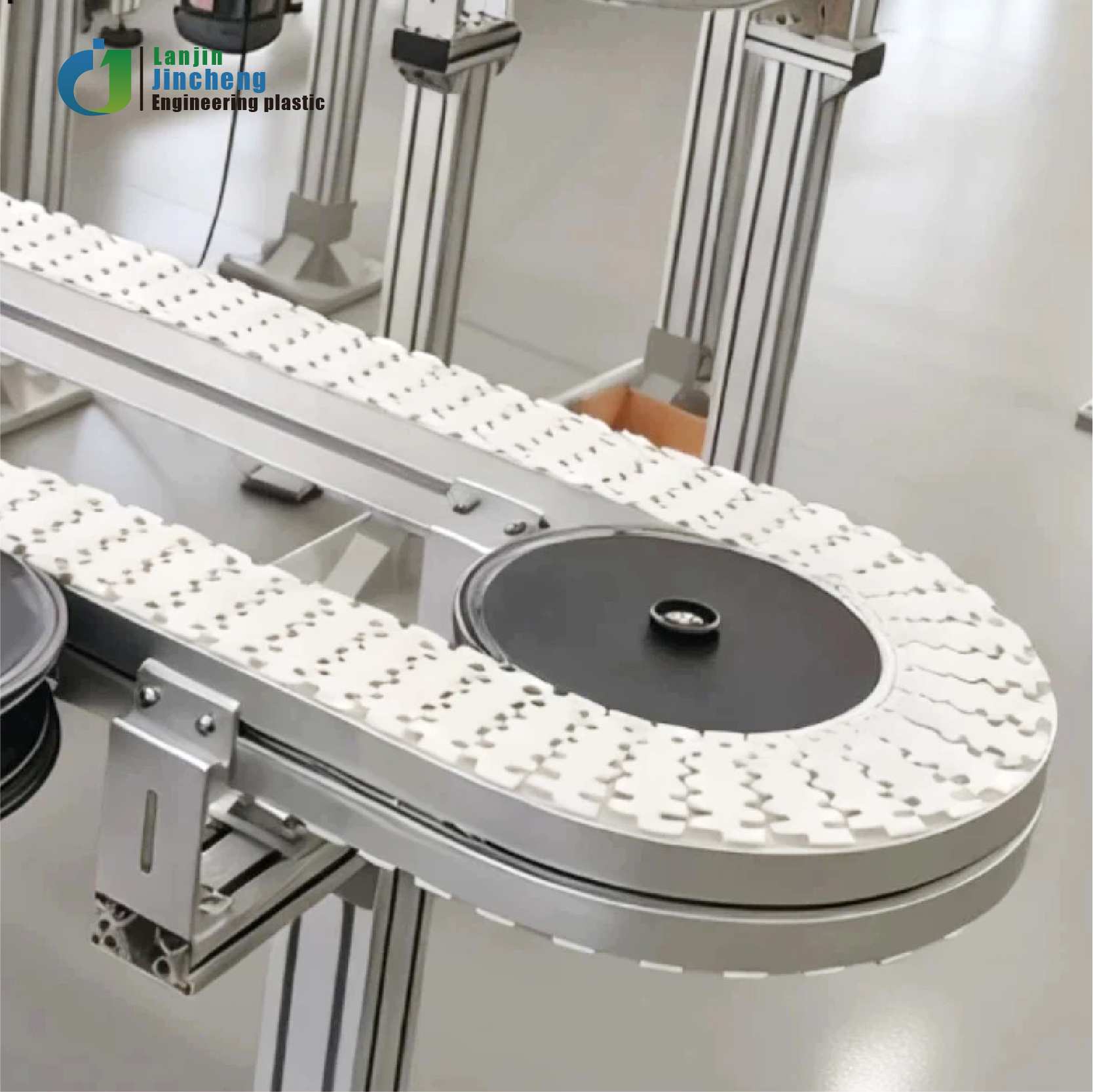

A flexible chain corner wheel is a driven turning unit used on flexible (modular) chain conveyors. It replaces the plain curve rail wherever the conveyor has to make a tight horizontal 90° or 180° loop, such as around machinery or in a compact layout.

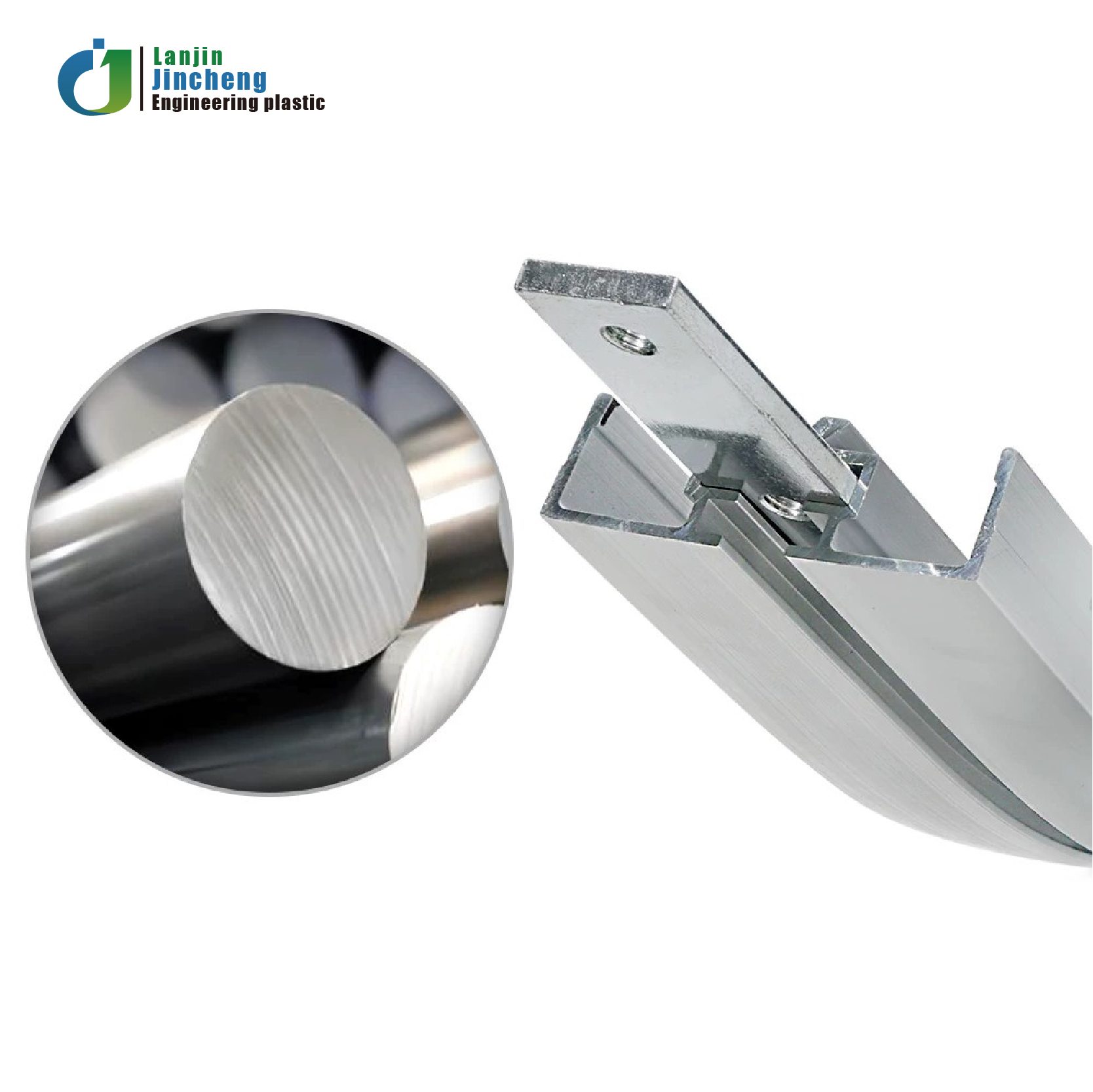

It consists of a circular plate that cradles the chain, a curved aluminum guide track, and the wheel itself — normally made of 6063-T5 aluminum alloy with a nylon (plastic) contact face. The chain runs around the wheel, and the wheel positively drives and turns the chain instead of letting it slide through a passive bend.

Flexible Chain Corner Wheels (Wheel Bends)

Horizontal Curve Rails

Vertical Curve Rails

– It turns the flexible chain through 90° or 180° at a defined radius (e.g. R150 / R160 / R170), matching the chain width (63 / 83 / 103 mm series).
– It provides positive drive and tension, reducing chain wear, noise and slipping in the corner.
– The nylon face protects the chain and the conveyed products; aluminum keeps it light.

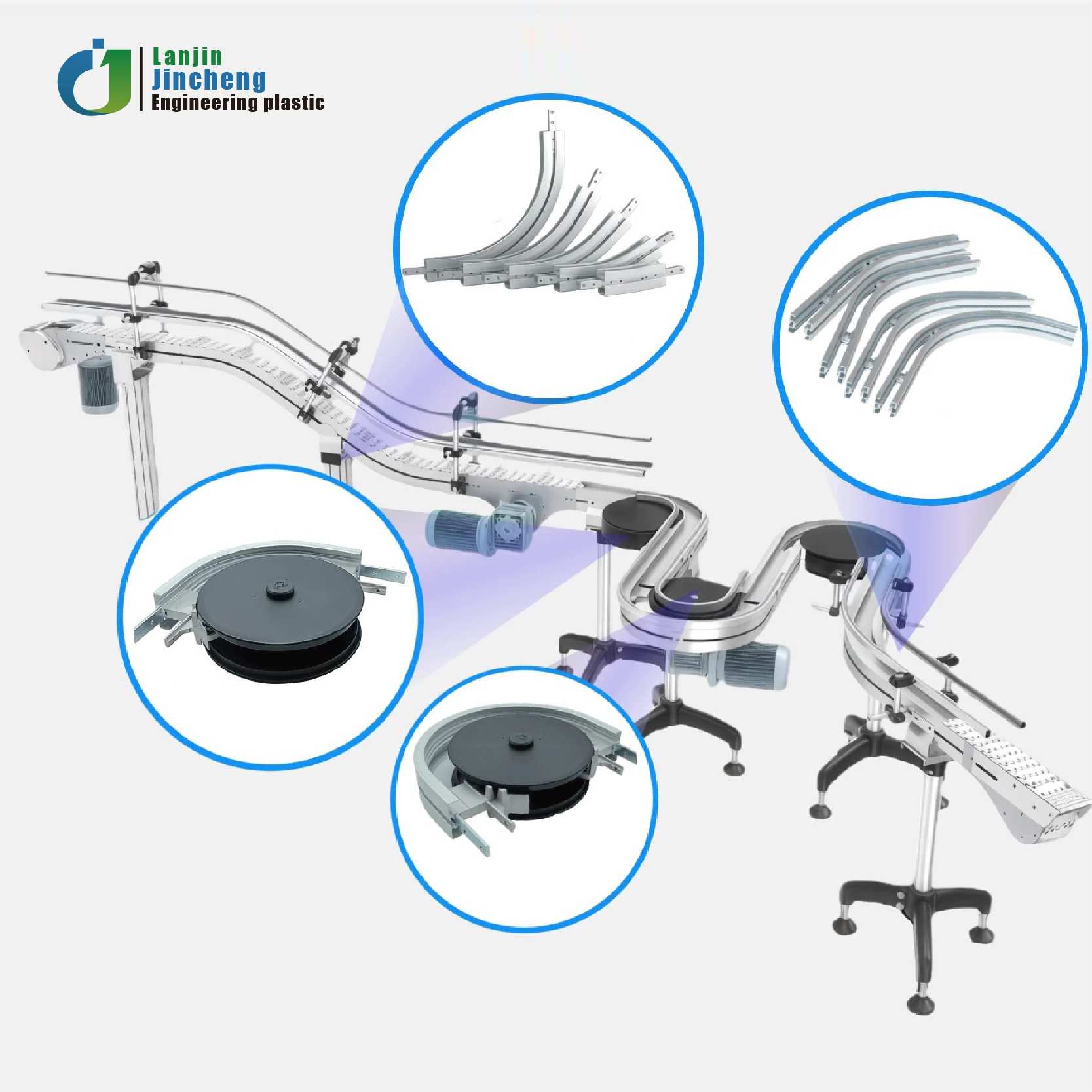

– It is installed together with horizontal/vertical curve rails to route the conveyor around corners, elevation changes and machines.

In short: it is the powered “pulley wheel” that bends and drives a flexible chain conveyor around tight 90°/180° corners.

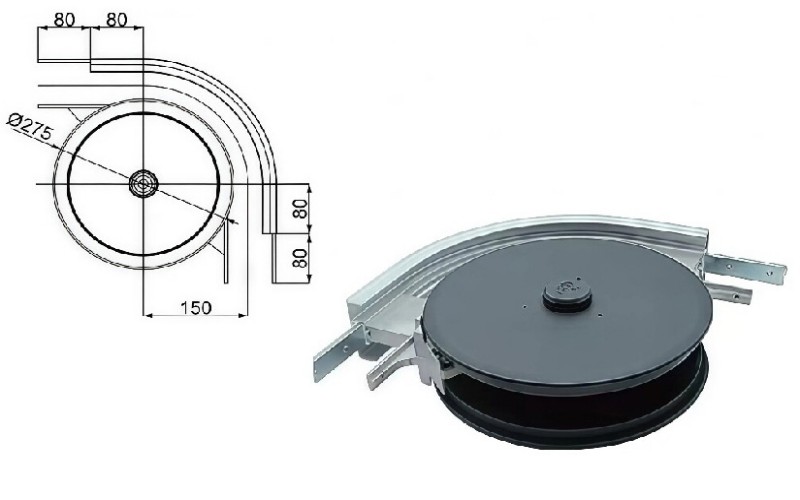

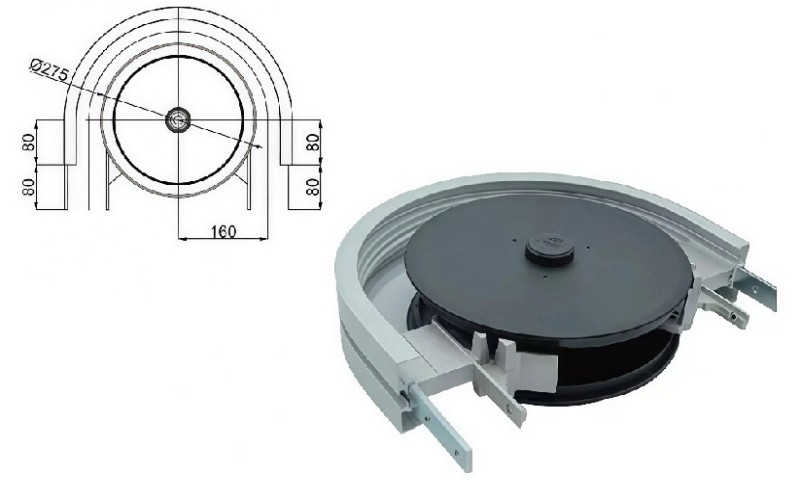

1.Flexible Chain Corner Wheels (Wheel Bends)

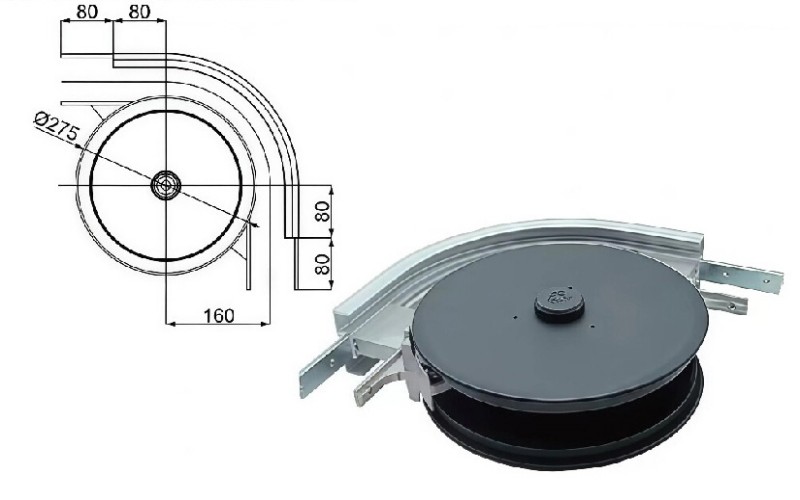

63 Flexible Chain Corner Wheel-90°	63 Flexible Chain Corner Wheel-180°
Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 90° Turning radius: R150 Corner wheel model: SRT‑63LW‑90	Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 180° Turning radius: R150 Corner wheel model: SRT‑63LW‑180

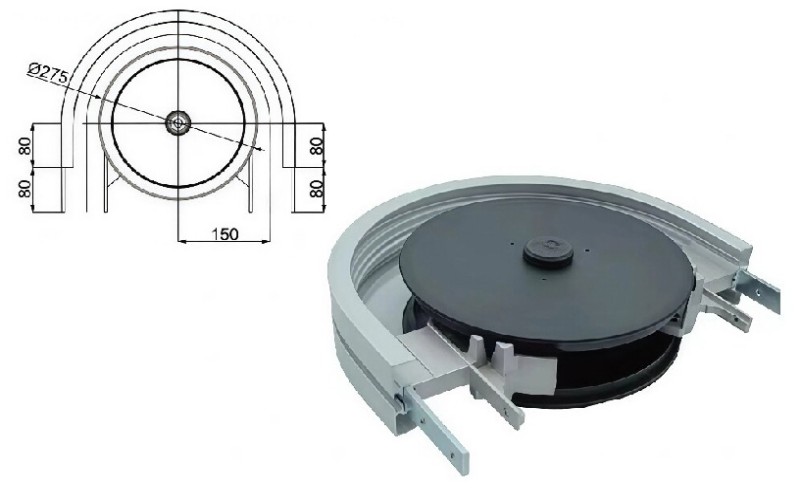

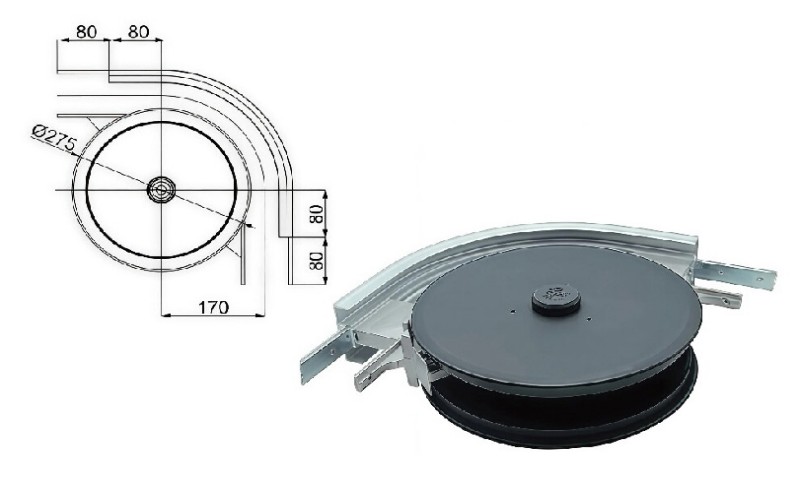

83 Flexible Chain Corner Wheel-90°	83 Flexible Chain Corner Wheel-180°
Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 90° Turning radius: R160 Corner wheel model: SRT‑83LW‑90	Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 180° Turning radius: R160 Corner wheel model: SRT‑83LW‑180

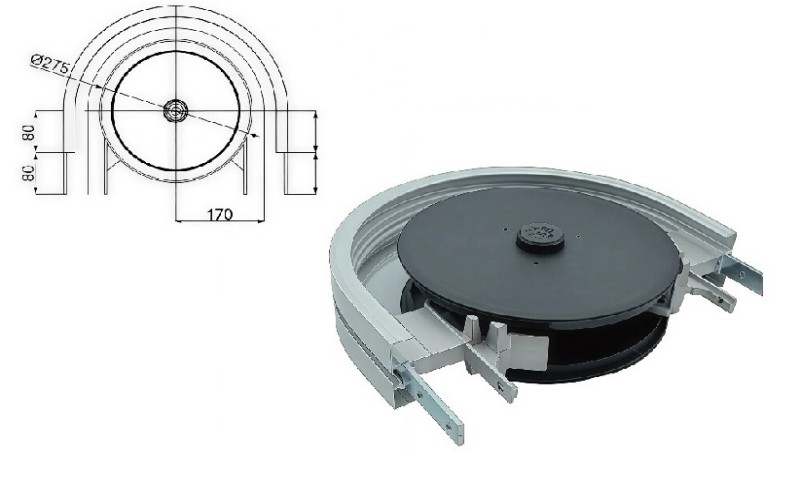

103 Flexible Chain Corner Wheel-90°	103 Flexible Chain Corner Wheel-180°
Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 90° Turning radius: R170 Corner wheel model: SRT‑103LW‑90	Corner wheel material: 6063‑T5 aluminum alloy + nylon plastic Corner wheel turning angle: 180° Turning radius: R170 Corner wheel model: SRT‑103LW‑180

2.Horizontal Curve

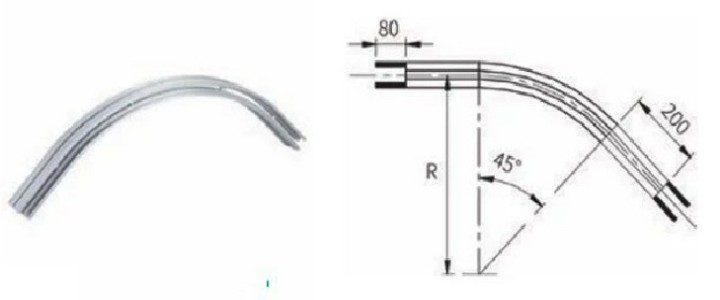

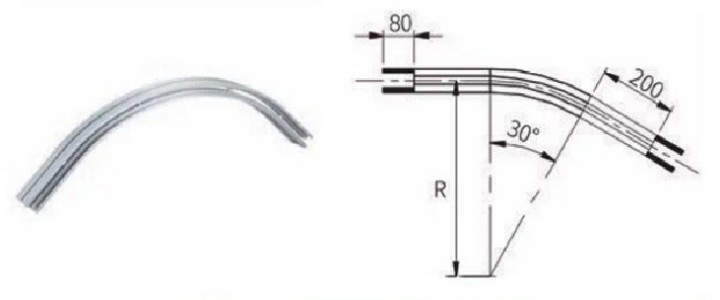

45‑Series Horizontal Curve, 30°					45‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	1.47	43	500	0.8	1.6	1.62	43
700	0.8	1.55	1.58		700	0.95	1.9	1.79
1000	0.95	1.85	1.77		1000	1.2	2.4	2.06

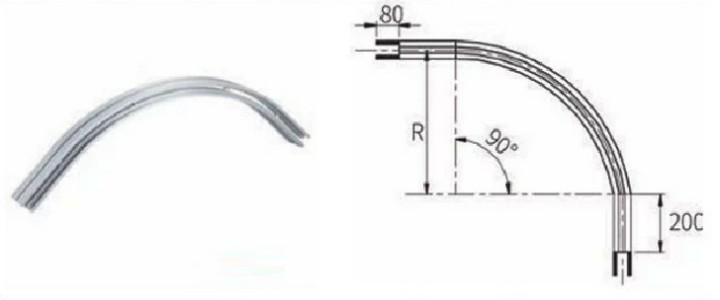

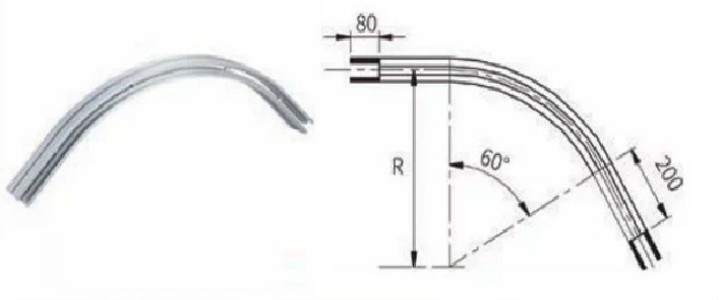

45‑Series Horizontal Curve, 60°					45‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	1.77	43	500	1.2	2.4	2.06	43
700	1.15	2.3	2		700	1.5	3	2.42
1000	1.45	2.9	2.36		1000	2	3.95	2.95

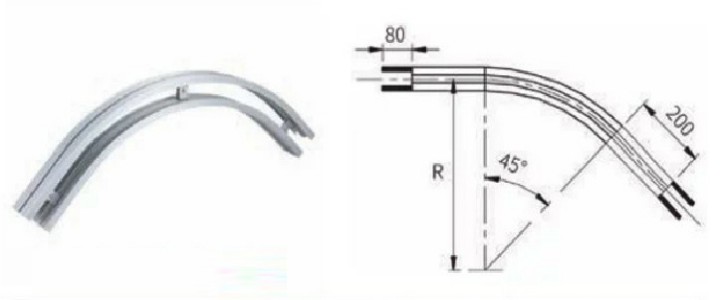

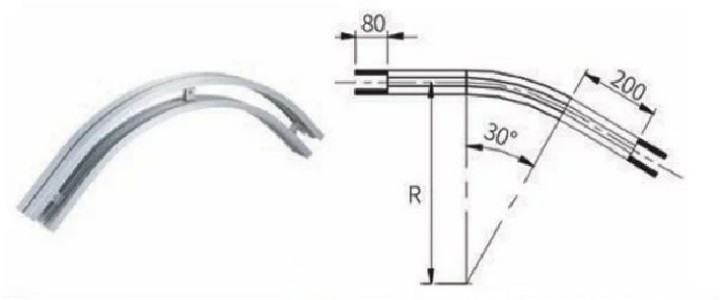

65‑Series Horizontal Curve, 30°					65‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	2.12	63	500	0.8	1.6	2.39	63
700	0.8	1.55	2.33		700	0.95	1.9	2.72
1000	0.95	1.85	2.69		1000	1.2	2.4	5.25

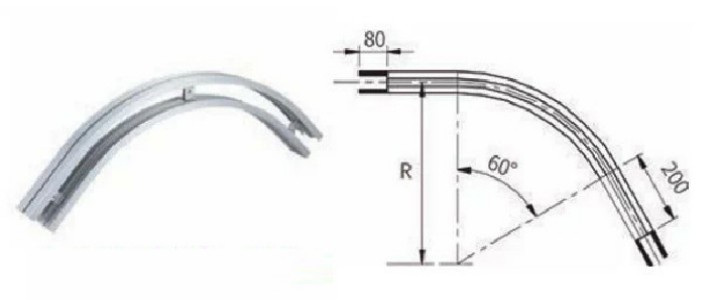

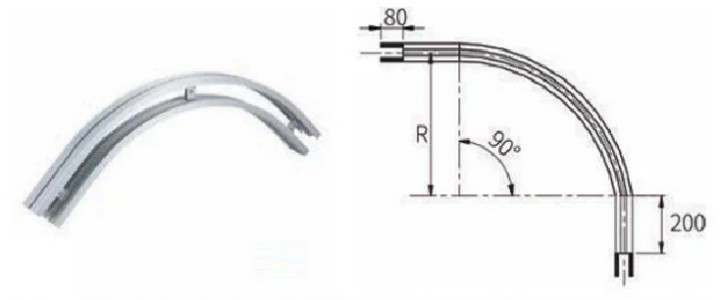

65‑Series Horizontal Curve, 60°					65‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	2.69	63	500	1.2	2.4	3.25	63
700	1.15	2.3	3.15		700	1.5	3	3.92
1000	1.45	2.9	3.84		1000	2	3.95	4.9

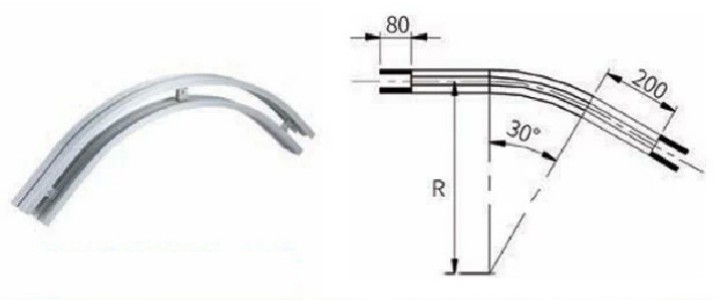

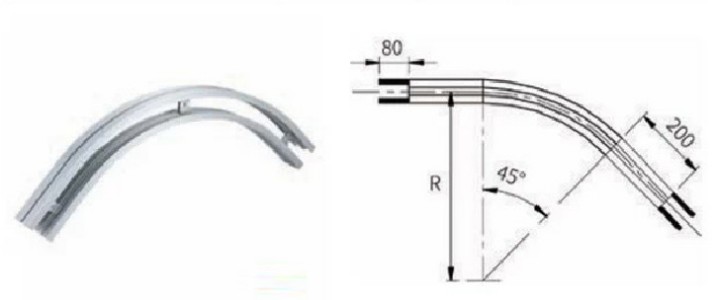

85‑Series Horizontal Curve, 30°					85‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	2.23	83	500	0.8	1.6	2.5	83
700	0.8	1.55	2.45		700	0.95	1.9	2.84
1000	0.95	1.85	2.82		1000	1.2	2.4	3.33

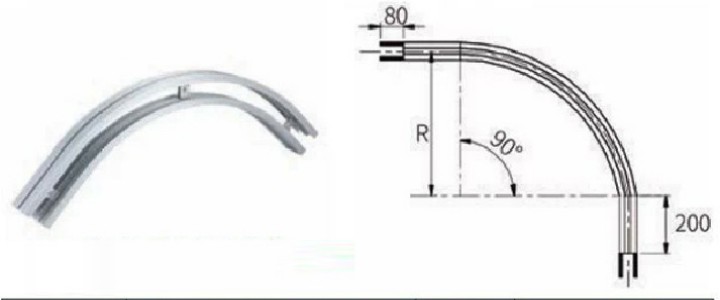

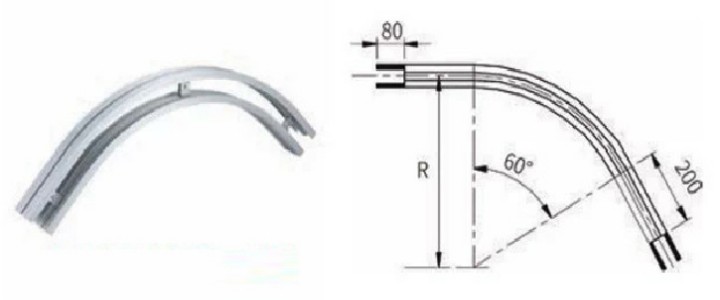

85‑Series Horizontal Curve, 60°					85‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	2.8	83	500	1.2	2.4	3.39	83
700	1.15	2.3	3.28		700	1.5	3	4.05
1000	1.45	2.9	3.94		1000	2	3.95	5.04

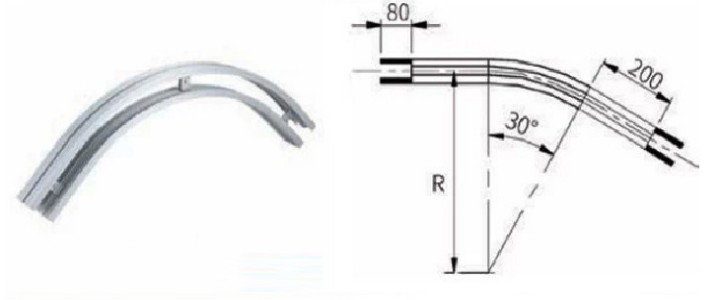

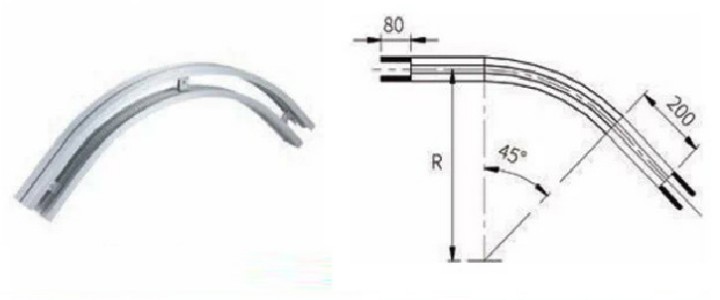

105‑Series Horizontal Curve, 30°					105‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	2.36	103	500	0.8	1.6	2.72	103
700	0.8	1.55	2.59		700	0.95	1.9	3.07
1000	0.95	1.85	3.02		1000	1.2	2.4	3.68

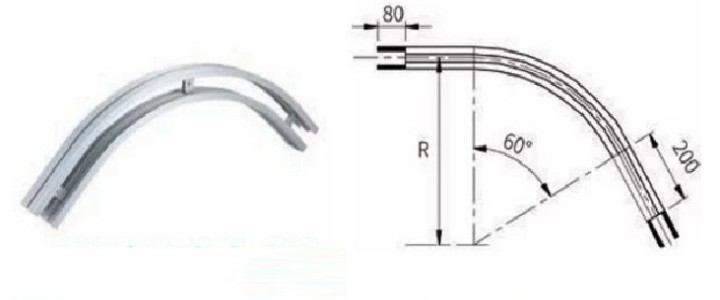

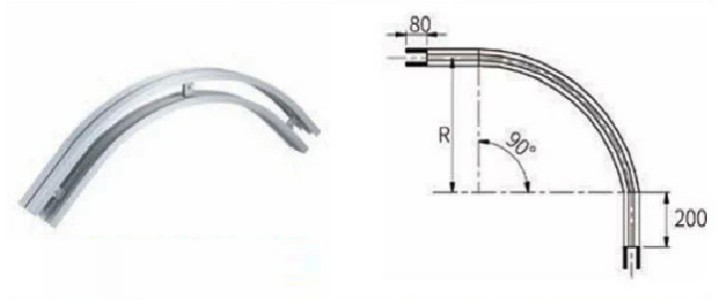

105‑Series Horizontal Curve, 60°					105‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	3.02	103	500	1.2	2.4	3.68	103
700	1.15	2.3	3.56		700	1.5	3	4.42
1000	1.45	2.9	4.32		1000	2	3.95	5.52

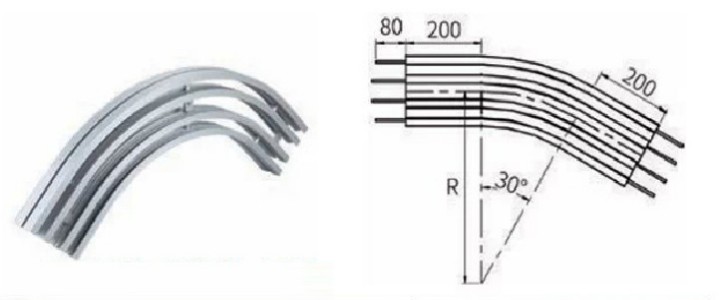

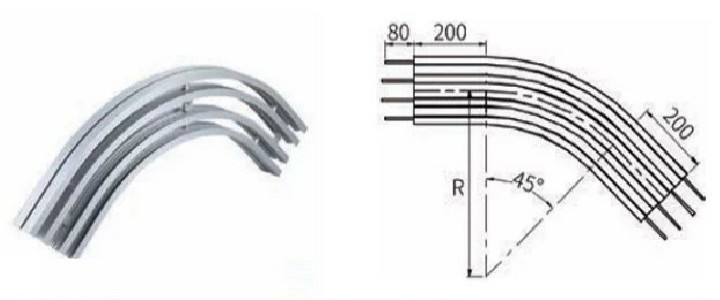

145‑Series Horizontal Curve, 30°					145‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	4.74	140	500	0.8	1.6	5.37	140
700	0.8	1.55	5.26		700	0.95	1.9	6.04
1000	0.95	1.85	5.98		1000	1.2	2.4	8.04

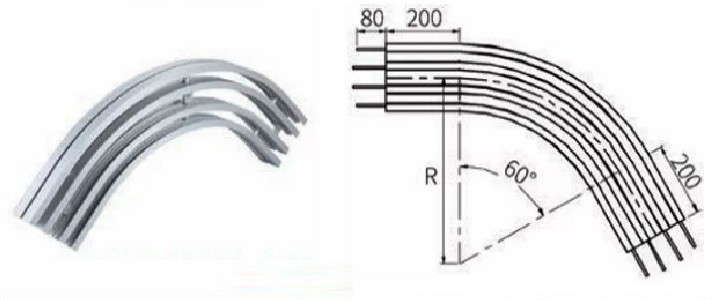

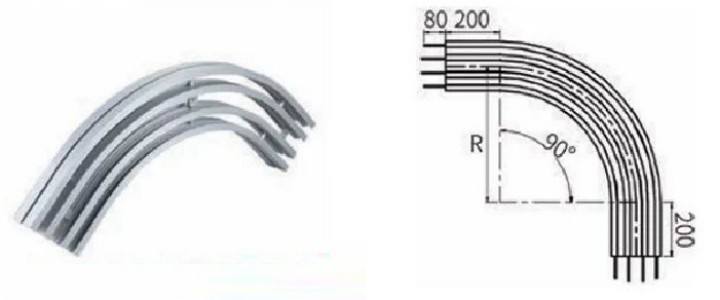

145‑Series Horizontal Curve, 60°					145‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	5.94	140	500	1.2	2.4	7.04	140
700	1.15	2.3	6.84		700	1.5	3	8.39
1000	1.45	2.9	8.14		1000	2	3.95	9.72

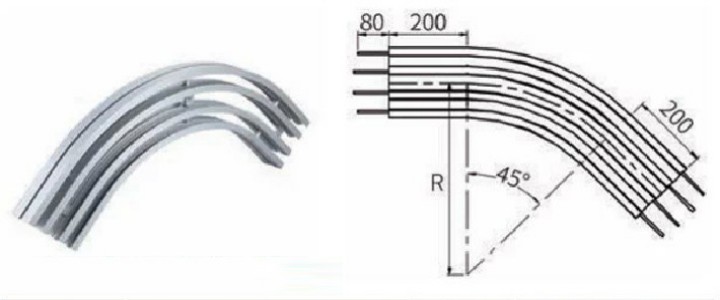

155‑Series Horizontal Curve, 30°					155‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	5.04	150	500	0.8	1.6	5.64	150
700	0.8	1.55	5.54		700	0.95	1.9	6.34
1000	0.95	1.85	6.34		1000	1.2	2.4	7.34

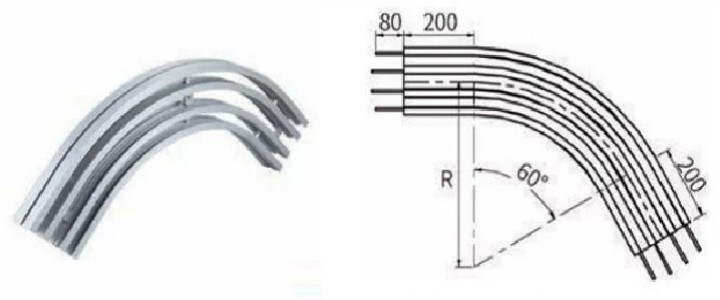

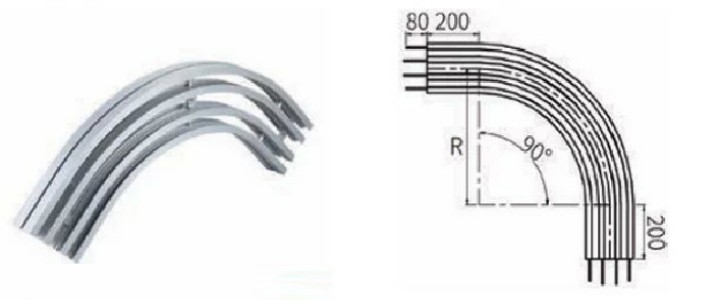

155‑Series Horizontal Curve, 60°					155‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	6.24	150	500	1.2	2.4	7.34	150
700	1.15	2.3	7.14		700	1.5	3	8.74
1000	1.45	2.9	8.44		1000	2	3.95	10.74

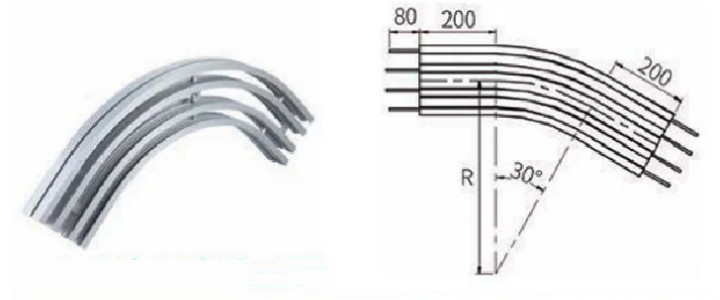

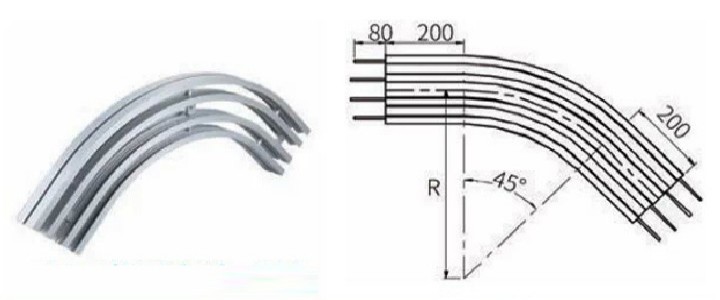

180‑Series Horizontal Curve, 30°					180‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.7	1.35	5.34	175	500	0.8	1.6	5.94	175
700	0.8	1.55	5.84		700	0.95	1.9	6.64
1000	0.95	1.85	6.64		1000	1.2	2.4	7.64

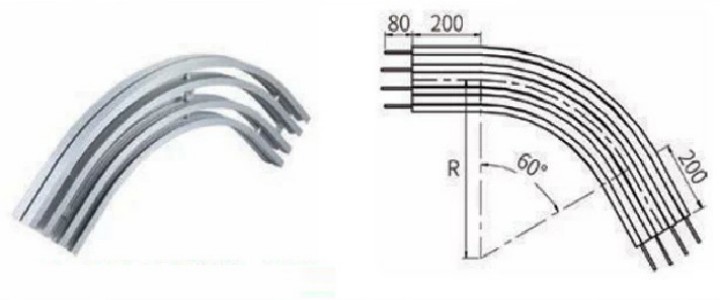

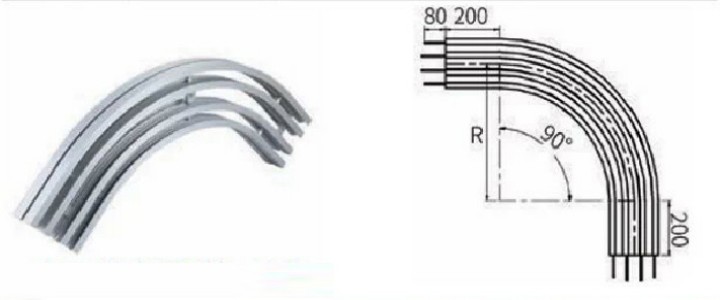

180‑Series Horizontal Curve, 60°					180‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
500	0.95	1.85	6.54	175	500	1.2	2.4	7.64	175
700	1.15	2.3	7.44		700	1.5	3	9.04
1000	1.45	2.9	8.74		1000	2	3.95	11.04

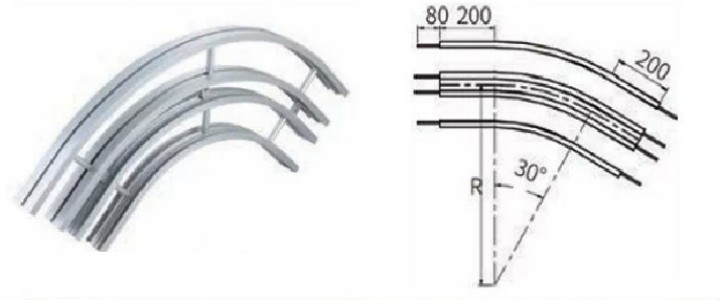

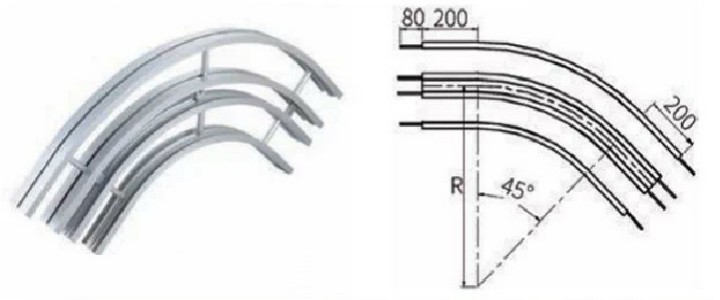

300‑Series Horizontal Curve, 30°					300‑Series Horizontal Curve, 45°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
700	0.8	1.55	6.44	295	700	0.95	1.9	7.24	295
1000	0.95	1.85	7.24		1000	1.2	2.4	8.24

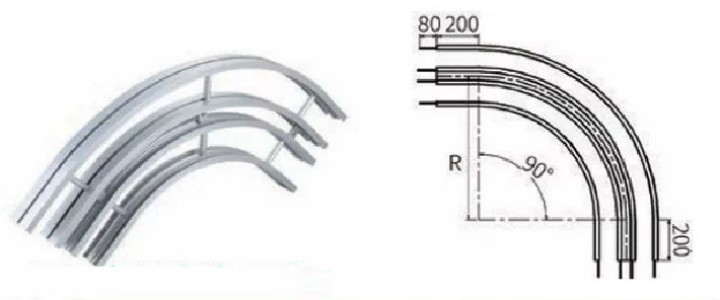

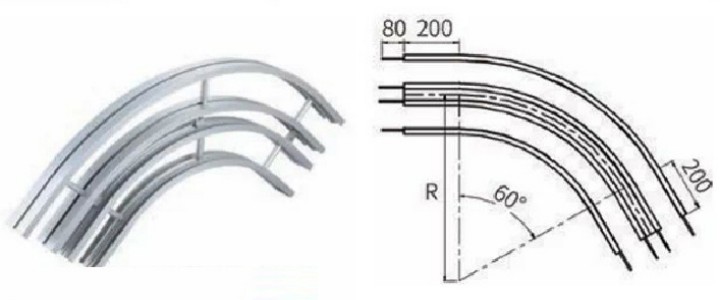

300‑Series Horizontal Curve, 60°					300‑Series Horizontal Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
700	1.15	2.3	8.04	295	700	1.5	3	9.64	295
1000	1.45	2.9	9.34		1000	2	3.95	11.64

3.Vertical Curve

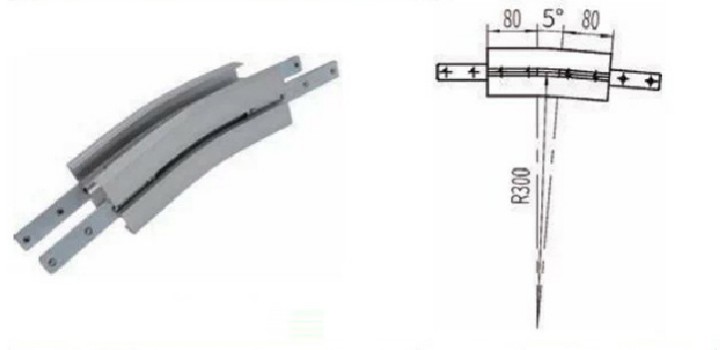

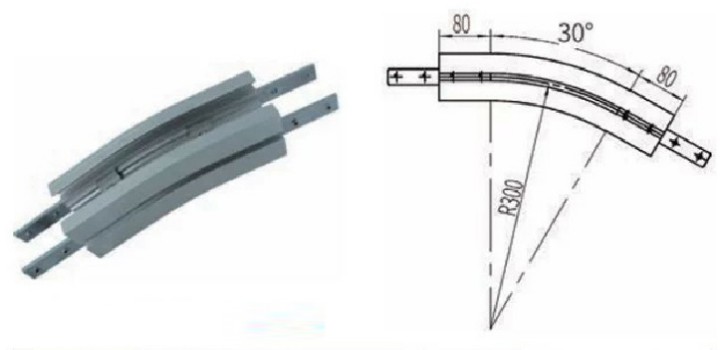

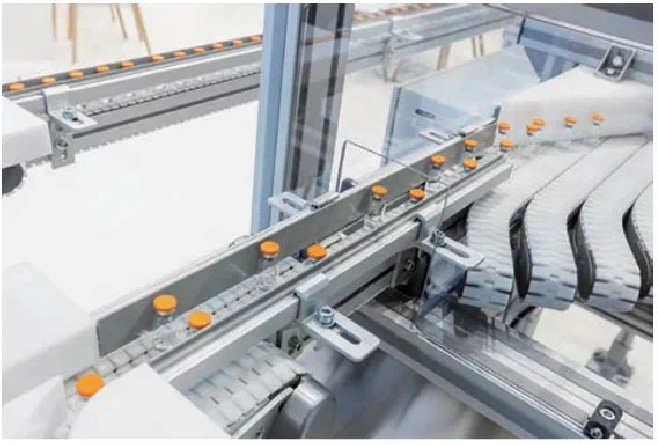

45 series Vertical Curve, 5°					45 series Vertical Curve, 30°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.2	0.4	1.1	43	300	0.35	0.65	1.31	43

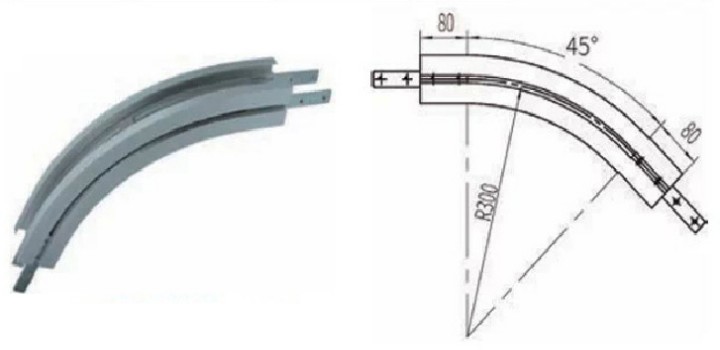

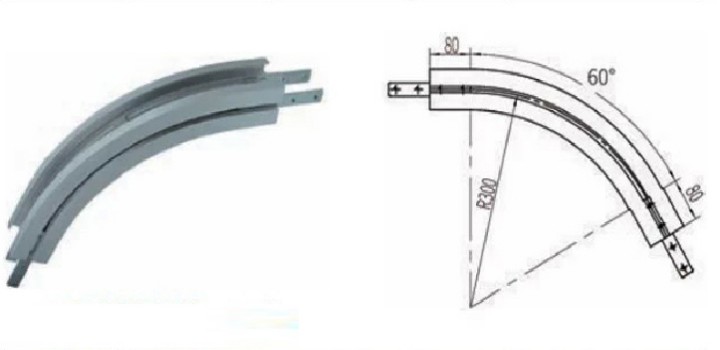

45 series Vertical Curve, 45°					45 series Vertical Curve, 60°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.4	0.8	1.46	43	300	0.5	0.95	1.62	43

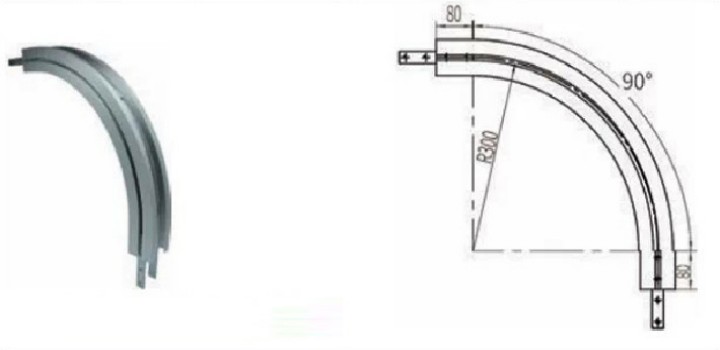

45 series Vertical Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.7	1.3	1.89	43

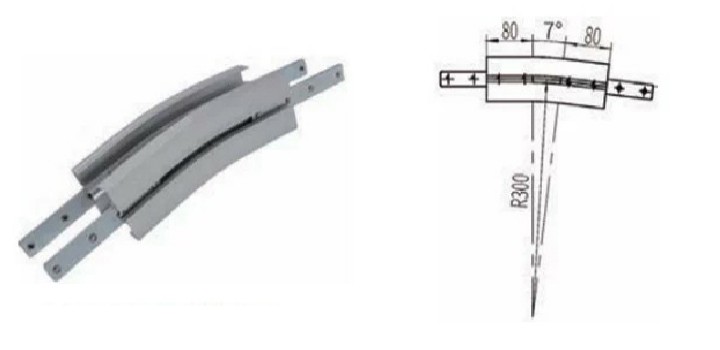

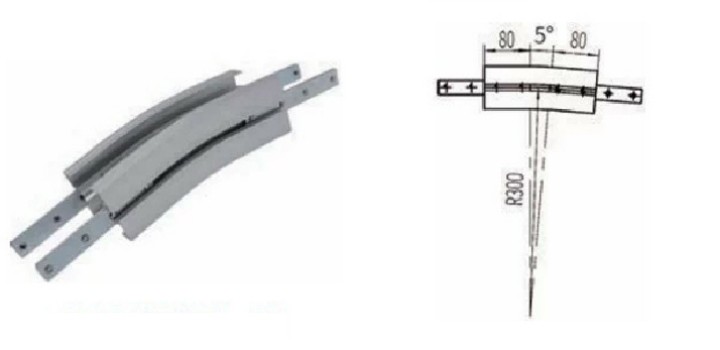

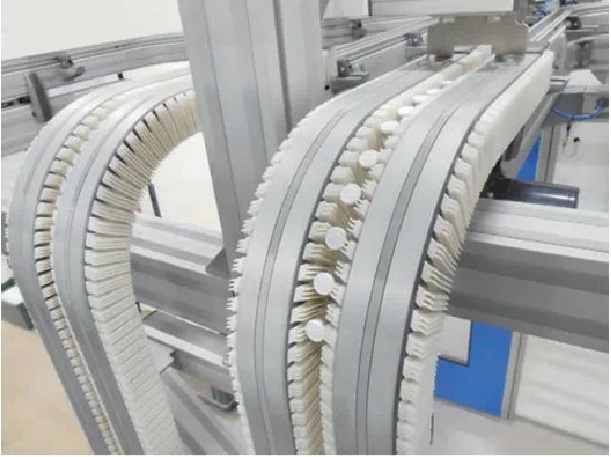

65 series Vertical Curve, 5°					65 series Vertical Curve, 7°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.2	0.4	1.12	63	300	0.2	0.4	1.16	63

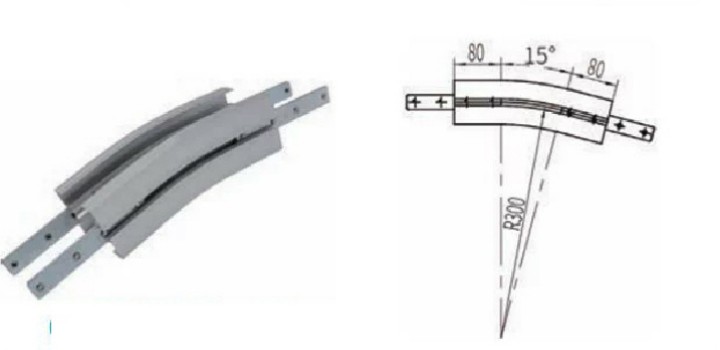

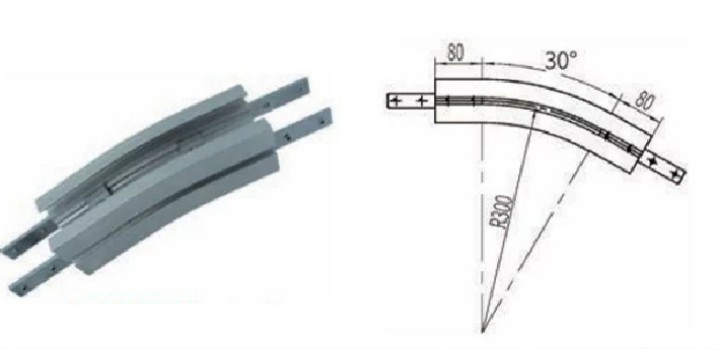

65 series Vertical Curve, 15°					65 series Vertical Curve, 30°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.25	0.5	1.24	63	300	0.35	0.65	1.32	63

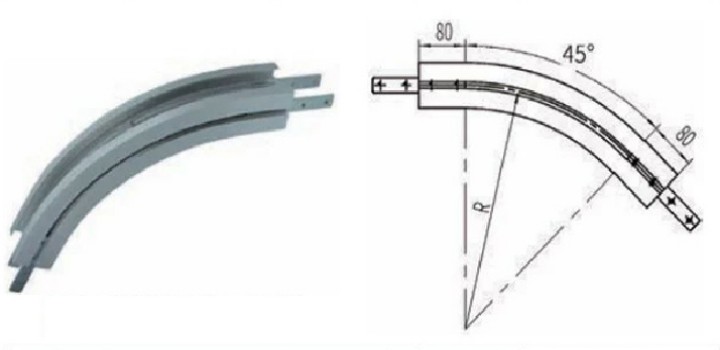

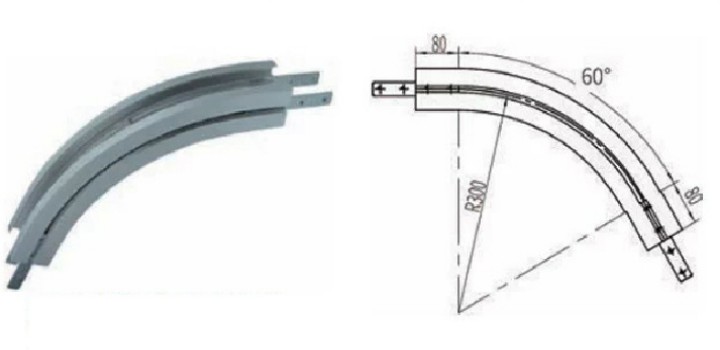

65 series Vertical Curve, 45°					65 series Vertical Curve, 60°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.45	0.8	1.44	63	300	0.5	0.95	1.54	63
1000	0.95	1.9	2.72

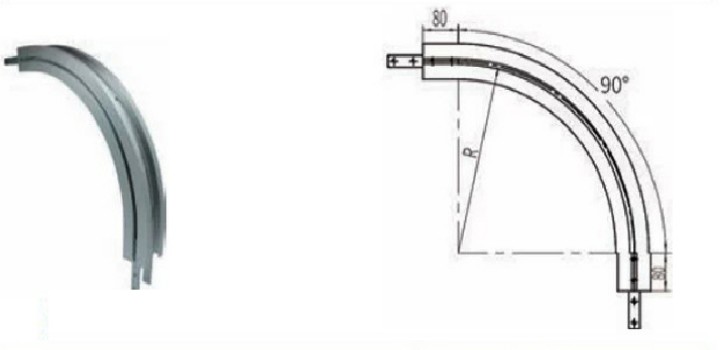

65 series Vertical Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
300	0.7	1.3	1.86	63
1000	1.75	3.5	4.28

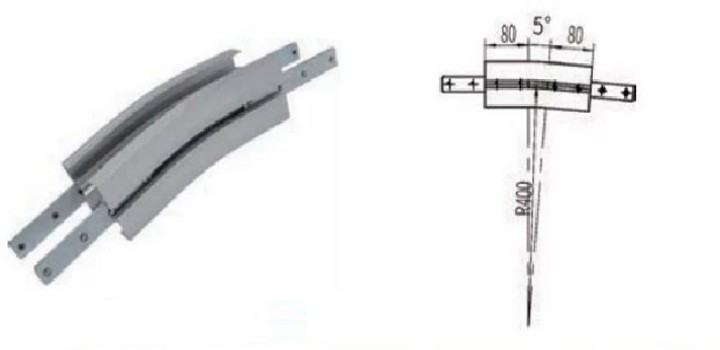

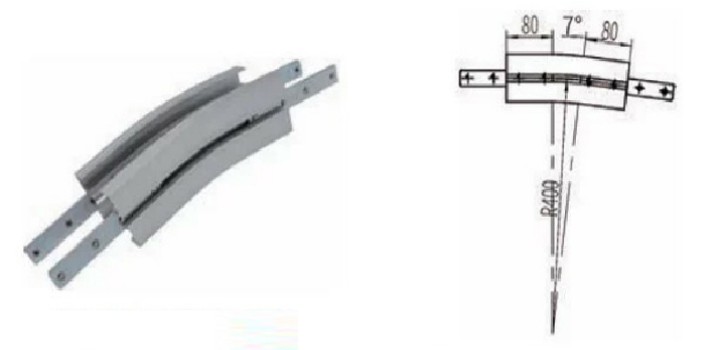

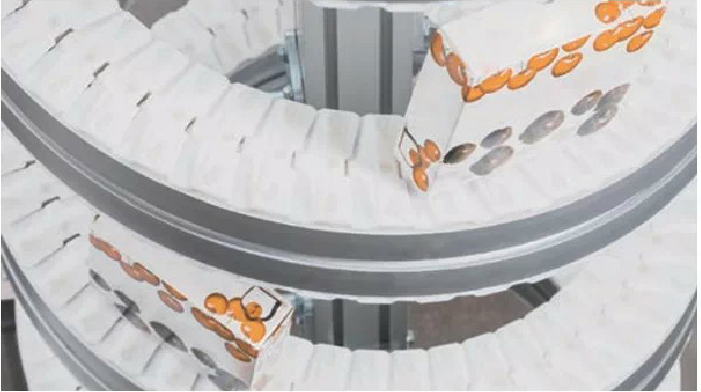

85 series Vertical Curve, 5°					85 series Vertical Curve, 7°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.2	0.4	1.22	83	400	0.25	0.45	1.28	83

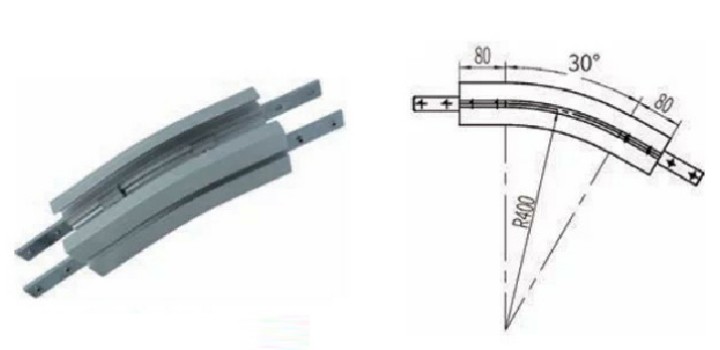

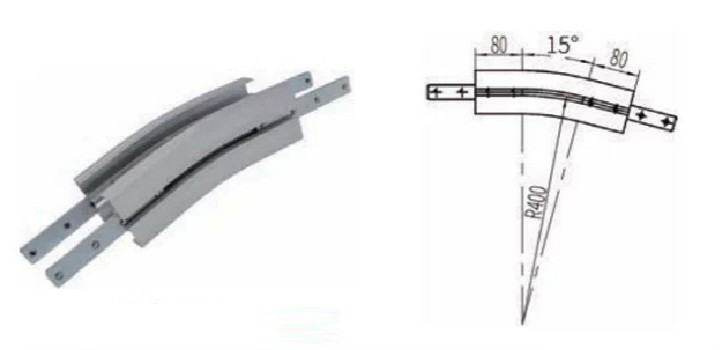

85 series Vertical Curve, 15°					85 series Vertical Curve, 30°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.35	0.65	1.32	83	400	0.4	0.75	1.52	83

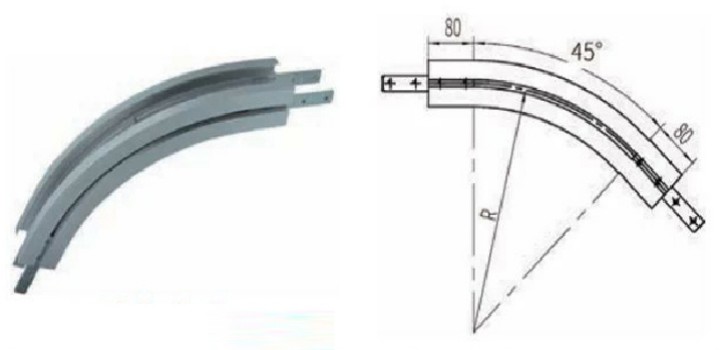

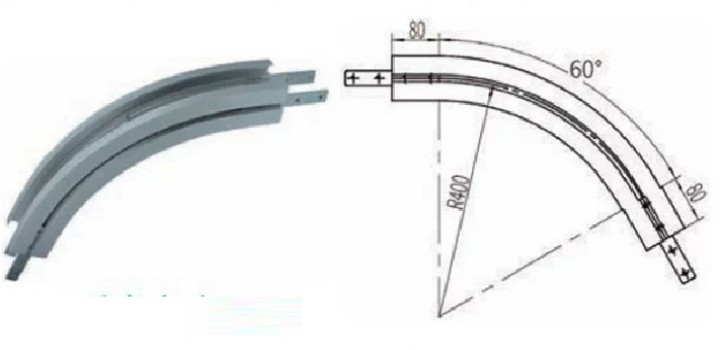

85 series Vertical Curve, 45°					85 series Vertical Curve, 60°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.5	0.95	1.8	83	400	0.65	1.2	1.92	83
1000	0.95	1.9	2.89

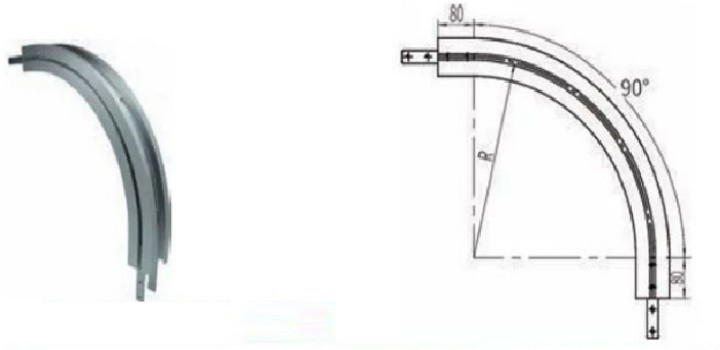

85 series Vertical Curve, 90°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.85	1.6	2.02	83
1000	1.75	3.5	4.54

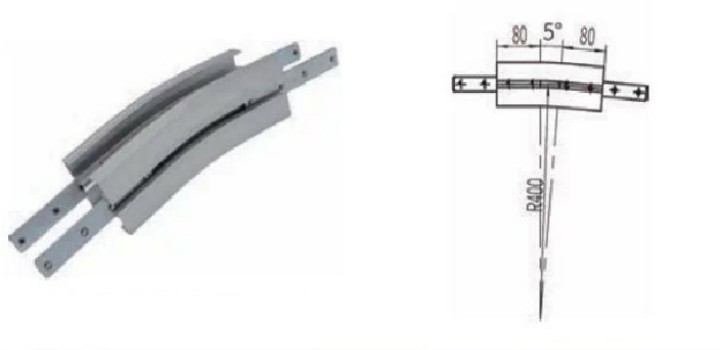

105 series Vertical Curve, 5°					105 series Vertical Curve, 7°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.2	0.4	1.32	103	400	0.35	0.65	1.34	103

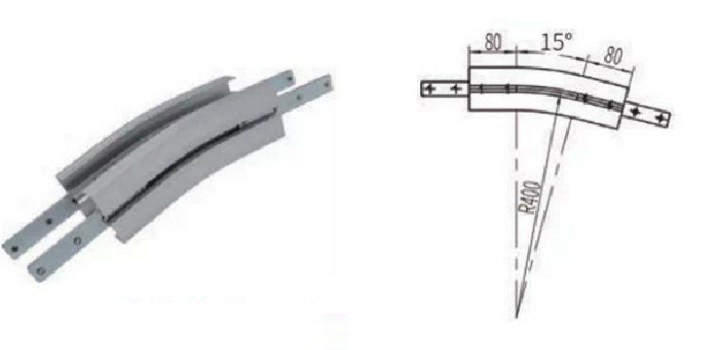

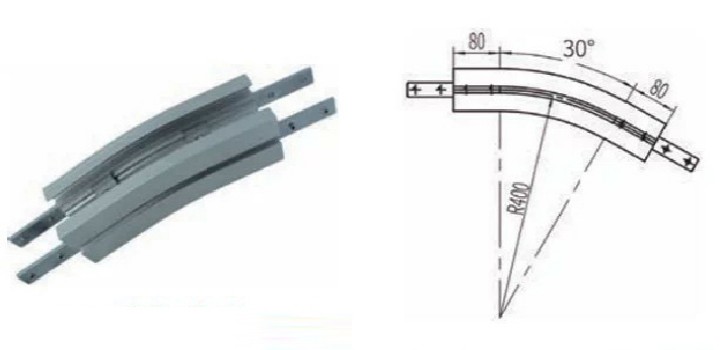

105 series Vertical Curve, 15°					105 series Vertical Curve, 30°
R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)	R (mm)	Eff. Track L Single (m)	Eff. Track L Double (m)	Weight (kg)	Chain Width (mm)
400	0.35	0.65	1.44	103	400	0.35	0.65	1.62	103

Flexible Chain Curves & Corner Wheels
Q1: What is the difference between Horizontal Curve and Corner Wheel?
A: Horizontal Curve is a passive sliding curved rail. Corner Wheel is rotating powered turn unit with smaller turning radius, less chain wear and noise.
Q2: What does 45‑Series /65‑Series mean?
A: Series number matches flexible chain width. It is NOT the turning angle. Turning angles are 30°/45°/60°/90°.
Q3: What radii are available for Horizontal Curve?
A: Standard radii: R500, R700, R1000 mm. Some wide‑chain models only have R700 & R1000.
Q4: What is Vertical Curve used for?
A: For uphill & downhill elevation change of conveyor lines, multiple incline angles optional.
Q5: How to choose curve radius R?
A: Larger radius suits high‑speed / fragile goods; smaller radius saves installation space for low‑speed lines.
Q6: Does Corner Wheel need an independent motor?
A: No. It runs by main‑drive chain tension, no extra motor required.
Q7: Can custom‑size curves be made?
A: Custom radii & angles are acceptable, subject to MOQ requirement.
