Magnetic Corner Track

Magnetic corner tracks enable smooth, low-noise conveying for food, beverage & packaging sectors, with balanced tension and retention. They cut bend tension by up to 60% to lower drive power and support longer conveyors. Optimized magnet layout ensures consistent force; good sliding reduces chain wear. Made of robust materials, offered in standard specs and custom drawings.

Category:

Description

The magnetic corner tracks ensure pulsation-free, low-noise conveying for the food, beverage and packaging industries, with evenly balanced tensile and retaining forces across all tracks. They reduce bend tensile forces by up to 60%, cutting drive power consumption and allowing longer conveyors without added drive performance. Track-specific magnet arrangements deliver near-identical forces in every track, while outstanding sliding properties reduce flat top chain wear. Made from high-quality, durable materials, they are available in all standard sizes, radii and angles (including TAB and bevel curves), and can be manufactured to customer drawings.

Product Description
Name Magnetic corner tracks / Chain plate curved track / Magnetic curves
Brand Jincheng plastic
Material Polyethylene UHMW-PE
Color Black, White, Green, Purple, Red, Yellow, Blue, Purple(Customized)
Working temperature -30℃ ~ +90℃（Using temperatures from -30℃ to 90℃）
Application Magnetic Chain Curve Guides Conveyor
Angle α = 15° ~ 90°
Chain Type 880M/1050/1060 Table Top chains
Highlights
Reduced power consumption possible, longer conveyor lines possible, fewer transfer stations required
High energy savings guaranteed
Longer conveyors without increasing drive performance possible
Reduced chain wear
No stick-slip effect (pulsation)
Gentle conveying with low noise emissions absolutely jolt-free
Outstanding sliding properties of magnetic corner tracks
Superlative material quality for long service life
Magnetic corner tracks are available in all standard sizes.
Magnetic corner tracks can be manufactured in accordance with customer drawings.





Standard type

Conventional product series include 880TAB-881TAB series, 882TAB series, 1050 series, 880M series, 1873 series, silent chain series and other series. Drawing parameters are shown below.

Customization & OEM drawing processing are available for all series.

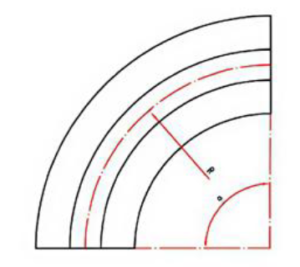

Note:Corner track model designation: Matching chain plate model + Corner track center radius + Corner track width + Number of tracks

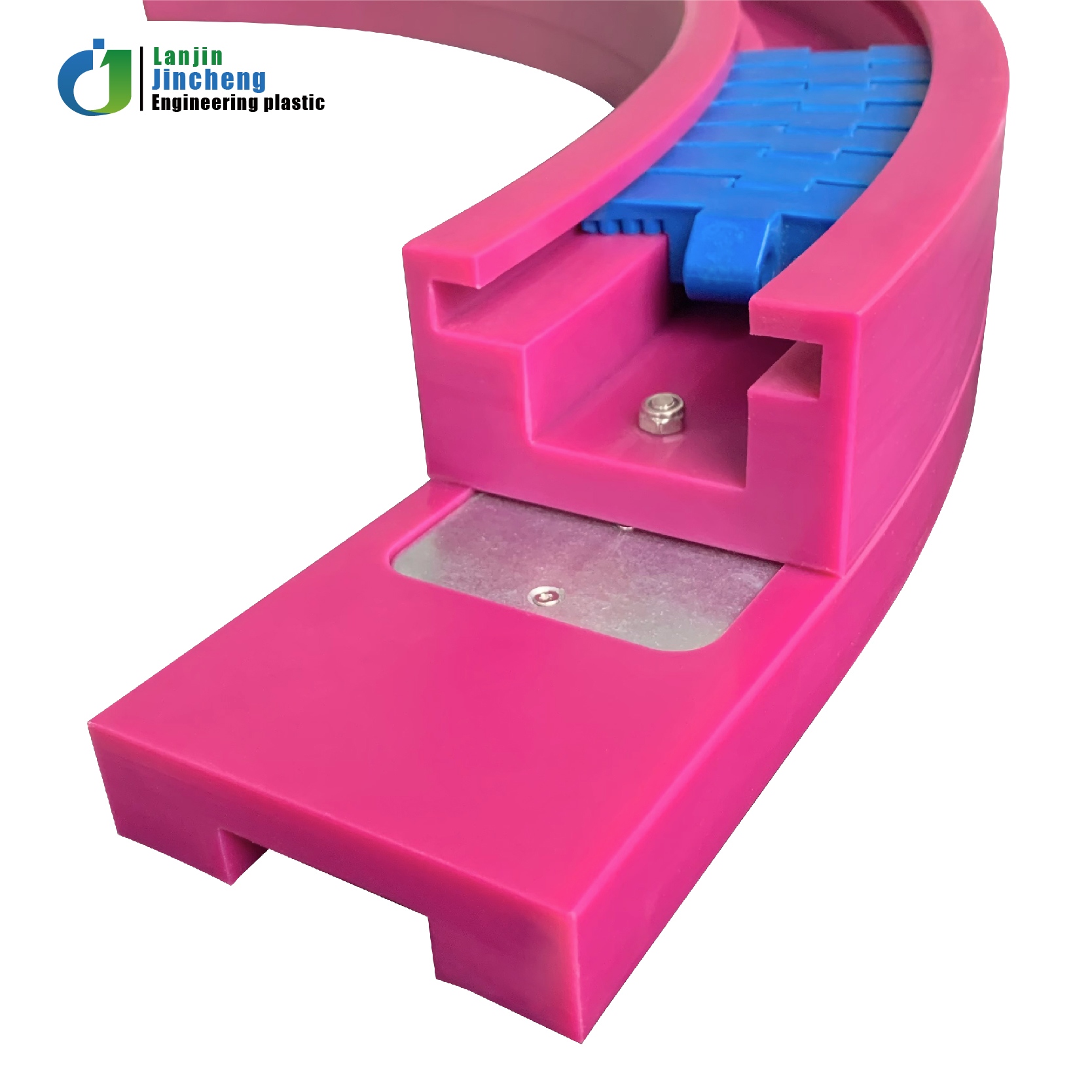

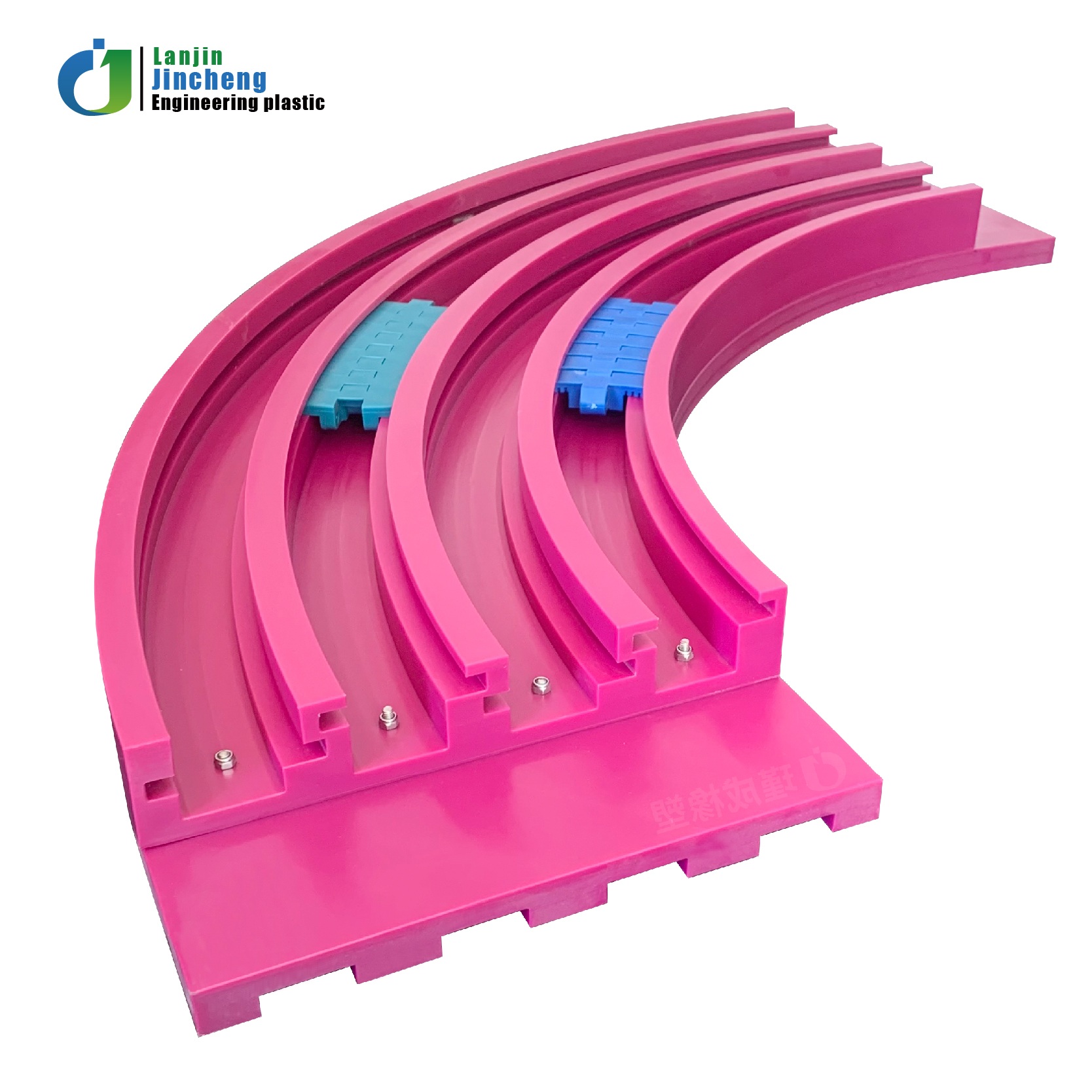

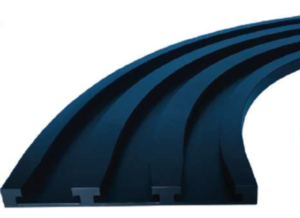

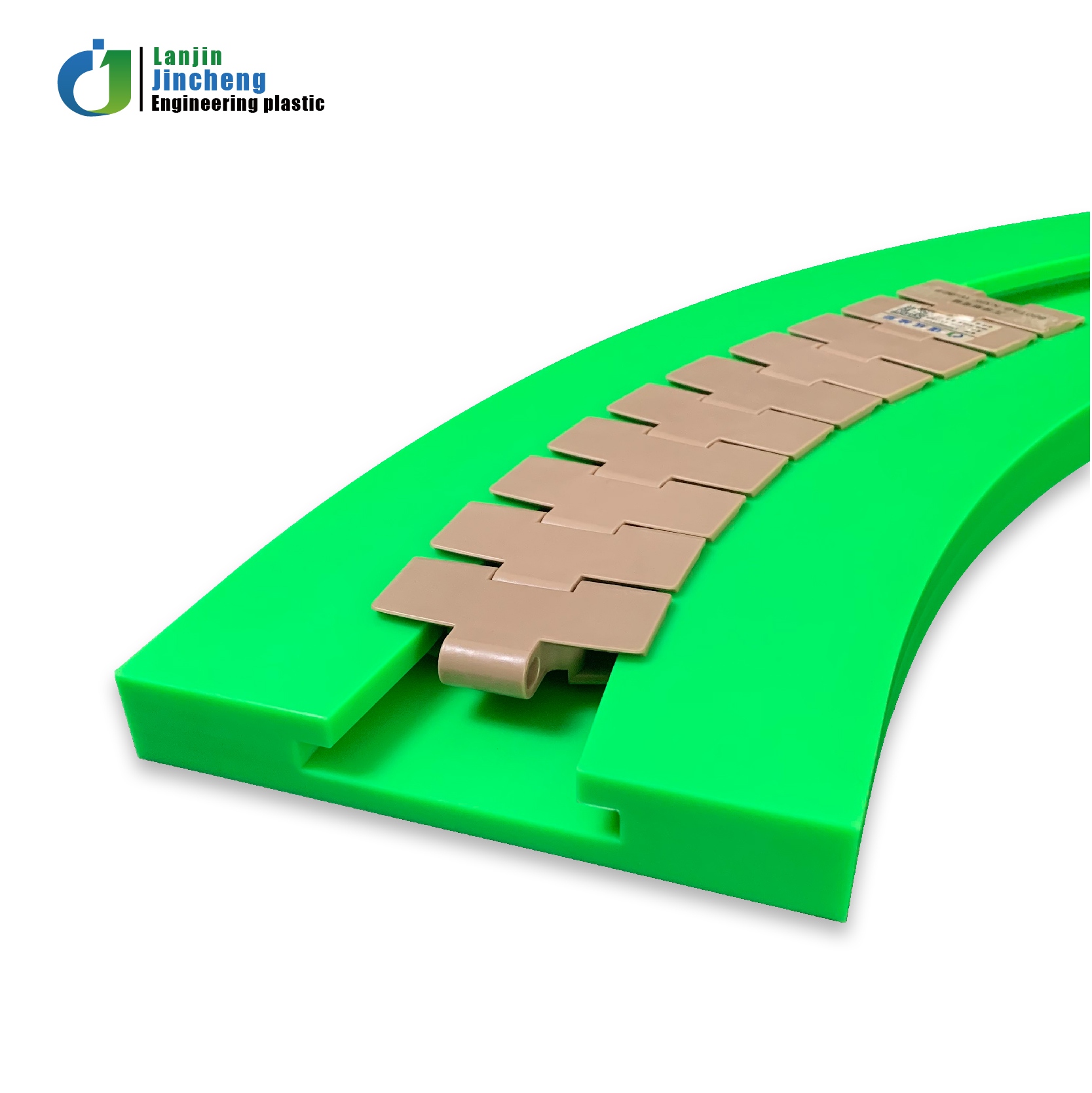

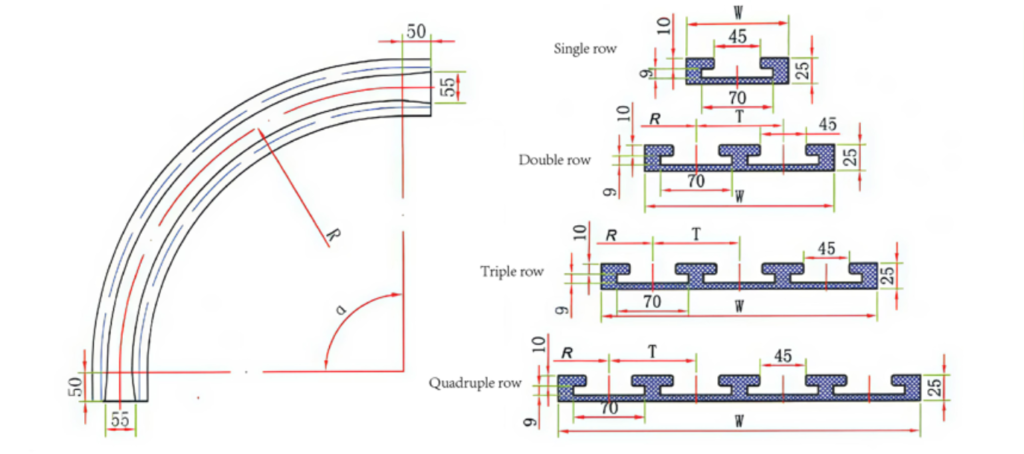

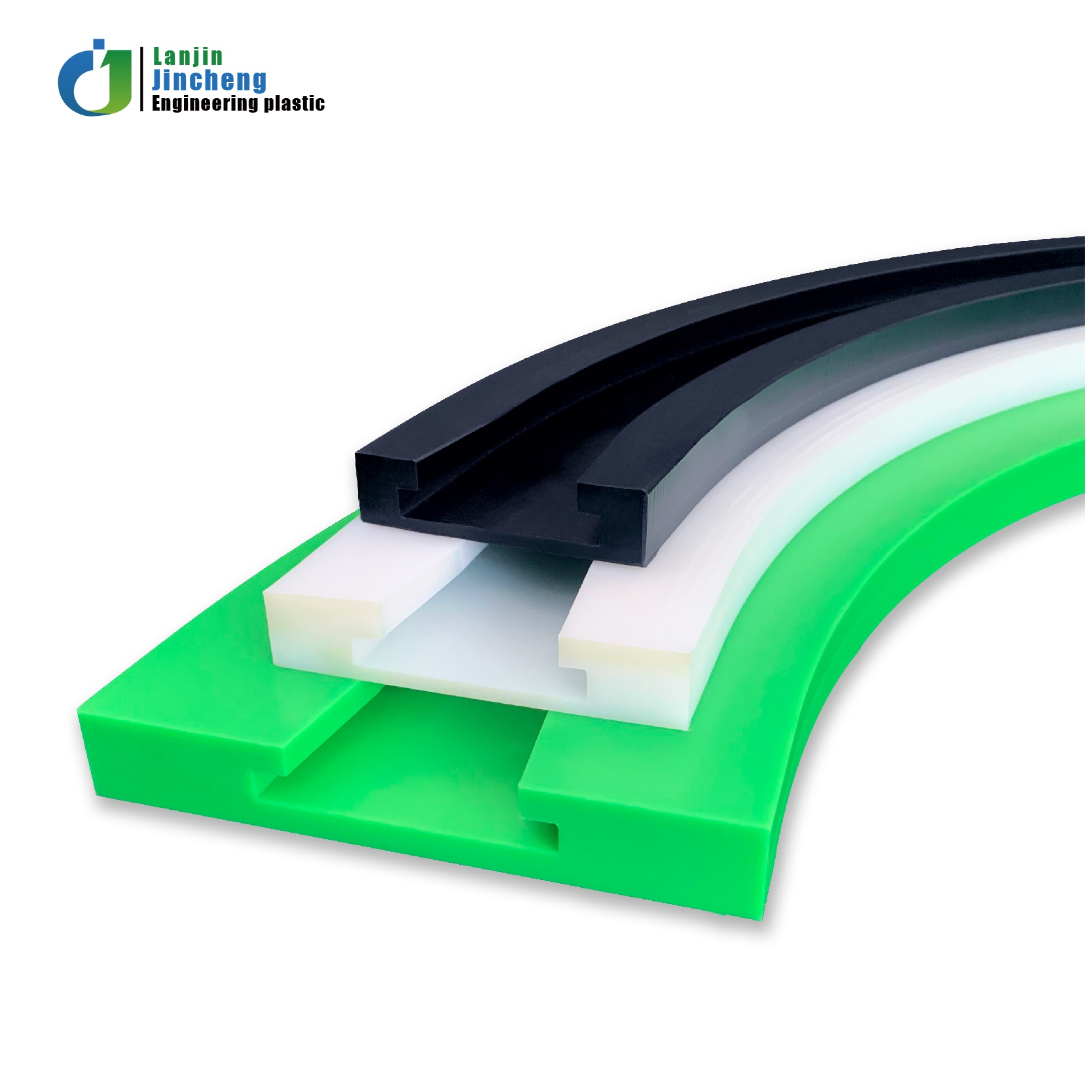

1. 880TAB/881TAB Series — π-Guide Lateral-Bend Chain Corner Tracks

Material: UHMWPE, black.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°
880TAB-K325/K450 & SS881TAB-K325/K450 share same-width chain plates. Curved and straight tracks are interchangeable.

880TAB/881TAB Series — π-Guide Lateral-Bend Chain Corner Tracks
(Material: UHMWPE, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius R (mm) Width W (mm) Pitch T (mm)
880TAB-K325 Single-row corner track 880TAB-K325-R500-100-1 500 100 –
880TAB-K325 Double-row corner track 880TAB-K325-R500-185-2 500 185 85
880TAB-K325 Triple-row corner track 880TAB-K325-R500-270-3 500 270 85
880TAB-K325 Quadruple-row corner track 880TAB-K325-R500-355-4 500 355 85
880TAB-K450 Single-row corner track 880TAB-K450-R500-130-1 500 130 –
880TAB-K450 Double-row corner track 880TAB-K450-R500-250-2 500 250 120
880TAB-K450 Triple-row corner track 880TAB-K450-R500-370-3 500 370 120
880TAB-K450 Quadruple-row corner track 880TAB-K450-R500-490-4 500 490 120
880TAB-K600 Single-row corner track SS881TAB-K600-R610-160-1 610 160 –
880TAB-K600 Double-row corner track SS881TAB-K600-R610-320-2 610 320 160
880TAB-K750 Single-row corner track SS881TAB-K750-R610-200-1 610 200 –
880TAB-K750 Double-row corner track SS881TAB-K750-R610-400-2 610 400 200

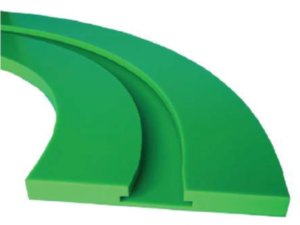

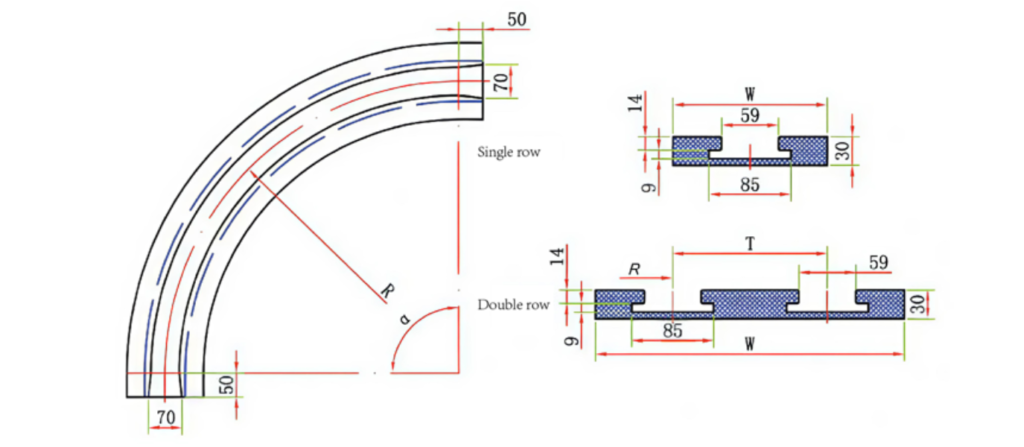

2. 880TAB/881TAB Series — π-Guide Lateral-Bend Chain Corner Tracks

Material: Ultra-high-molecular-weight polyethylene (UHMWPE),
Color: Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°

880TAB/881TAB Series — π-Guide Lateral-Bend Chain Corner Tracks
(Material: UHMWPE, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius
R (mm)		 Width
W (mm)		 Pitch
T (mm)
882TAB-K500 Single-row corner track 882TAB-K500-R610-135-1 610 135 –
882TAB-K500 Double-row corner track 882TAB-K500-R610-270-2 610 270 130
882TAB-K600 Single-row corner track 882TAB-K600-R610-160-1 610 160 –
882TAB-K600 Double-row corner track 882TAB-K600-R610-320-2 610 320 160
882TAB-K750 Single-row corner track 882TAB-K750-R610-200-1 610 200 –
882TAB-K750 Double-row corner track 882TAB-K750-R610-400-2 610 400 200
882TAB-K1000 Single-row corner track 882TAB-K1000-R610-260-1 610 260 –
882TAB-K1000 Double-row corner track 882TAB-K1000-R610-520-2 610 520 260
882TAB-K1200 Single-row corner track 882TAB-K1200-R610-320-1 610 320 –
882TAB-K1200 Double-row corner track 882TAB-K1200-R610-630-2 610 630 310

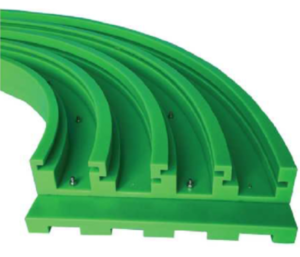

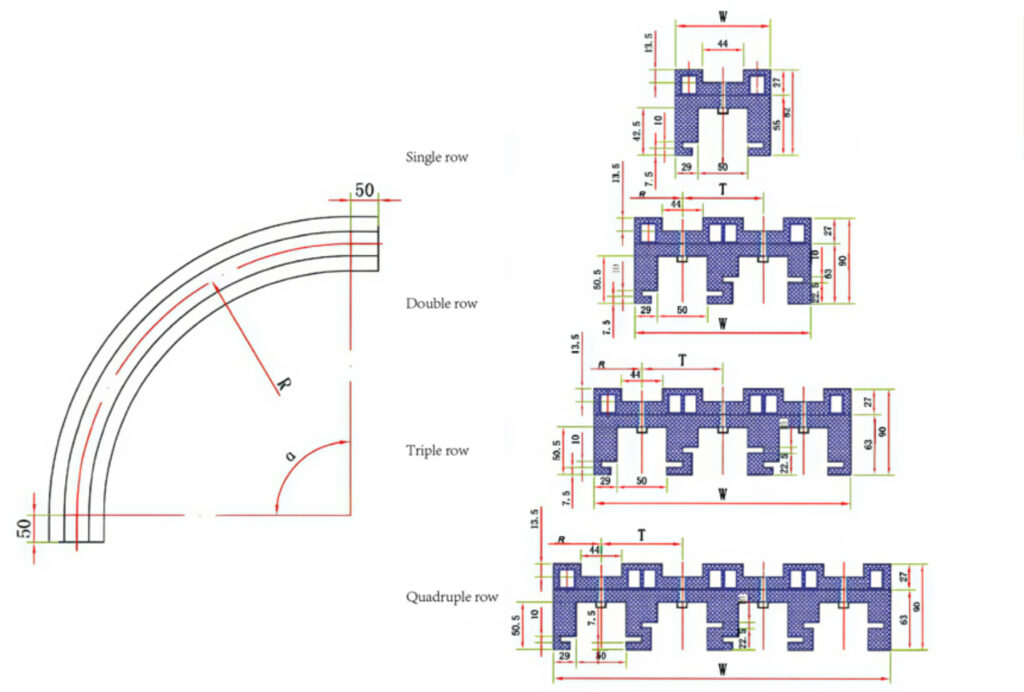

3.1050 Series — Heavy-Duty Lateral-Bend Chain Corner Tracks

Material: Ultra-high-molecular-weight polyethylene (UHMWPE),
Color:  Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°.

1050 Series Heavy-Duty Corner Track Parameters
(Material: UHMWPE, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius R (mm) Width W (mm) Pitch T (mm)
1050-K325 Single-row corner track 1050-K325-R500-100-1 500 100 –
1050-K325 Double-row corner track 1050-K325-R500-185-2 500 185 85
1050-K325 Triple-row corner track 1050-K325-R500-270-3 500 270 85
1050-K325 Quadruple-row corner track 1050-K325-R500-355-4 500 355 85

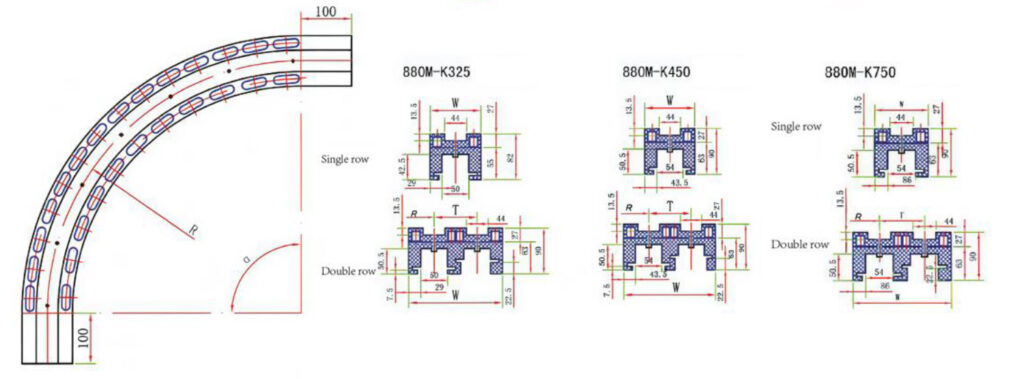

4.880 Series — Magnetic Lateral-Bend Chain Corner Tracks

Material: Material: Ultra-high-molecular-weight polyethylene (UHMWPE) + magnets + screw set
Color:  Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°.

880M Series Magnetic Corner Track Parameters
(Material: UHMWPE + Magnets + Screw Set, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius
R (mm)		 Width W (mm) Pitch
T (mm)
880M-K325 Single-row corner track 880M-K325-R500-100 500 100 –
880M-K325 Double-row corner track 880M-K325-R500-185 500 185 85
880M-K325 Triple-row corner track 880M-K325-R500-270 500 270 85
880M-K325 Quadruple-row corner track 880M-K325-R500-355 500 355 85
880M-K450 Single-row corner track 880M-K450-R610-130 610 130 –
880M-K450 Double-row corner track 880M-K450-R610-250 610 250 120
880M-K450 Triple-row corner track 880M-K450-R610-370 610 370 120
880M-K450 Quadruple-row corner track 880M-K450-R610-490 610 490 120
880M-K750 Single-row corner track 880M-K750-R610-214 610 214 –
880M-K750 Double-row corner track 880M-K750-R610-410 610 410 196

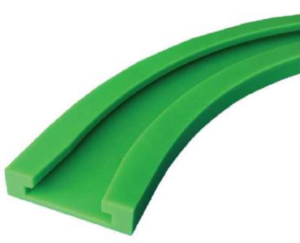

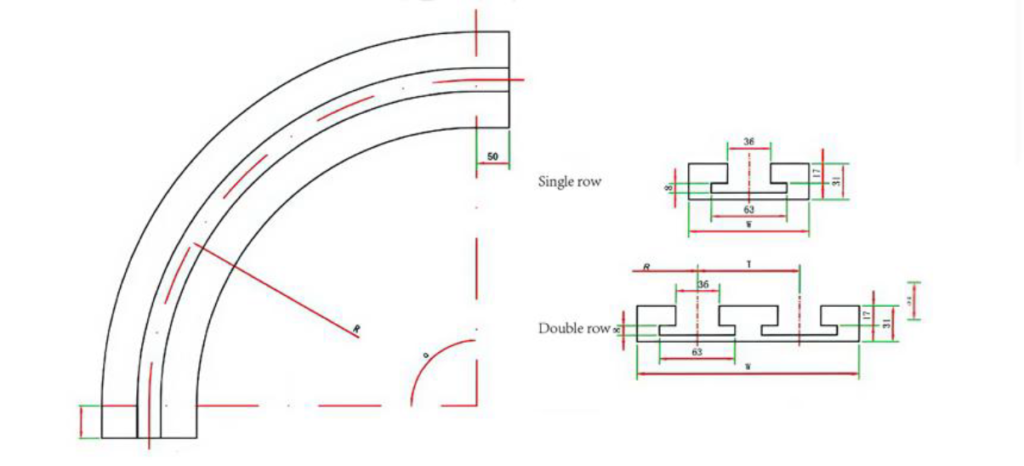

5.1873 Series — Corner Tracks

Material: Material: Ultra-high-molecular-weight polyethylene (UHMWPE) + magnets + screw set
Color:  Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°.

1873 Series Corner Track Parameters
(Material: UHMWPE, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius
R (mm)		 Width
W (mm)		 Pitch
T (mm)
1873-K325 Single-row corner track 1873-K325-R400-100-1 400 100 –
1873-K325 Double-row corner track 1873-K325-R400-185-2 400 185 85
1873-K450 Single-row corner track 1873-K450-R400-130-1 400 130 –
1873-K450 Double-row corner track 1873-K450-R400-250-2 400 250 120
1873-K600 Single-row corner track 1873-K600-R500-160-1 500 160 –
1873-K600 Double-row corner track 1873-K600-R500-320-2 500 320 160
1873-K750 Single-row corner track 1873-K750-R500-200-1 500 200 –
1873-K750 Double-row corner track 1873-K750-R500-400-2 500 400 200
1873-K1000 Single-row corner track 1873-K1000-R500-260-1 500 260 –
1873-K1000 Double-row corner track 1873-K1000-R500-520-2 500 520 260
1873-K1200 Single-row corner track 1873-K1200-R500-310-1 500 310 –
1873-K1200 Double-row corner track 1873-K1200-R500-620-2 500 620 310

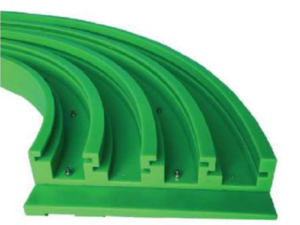

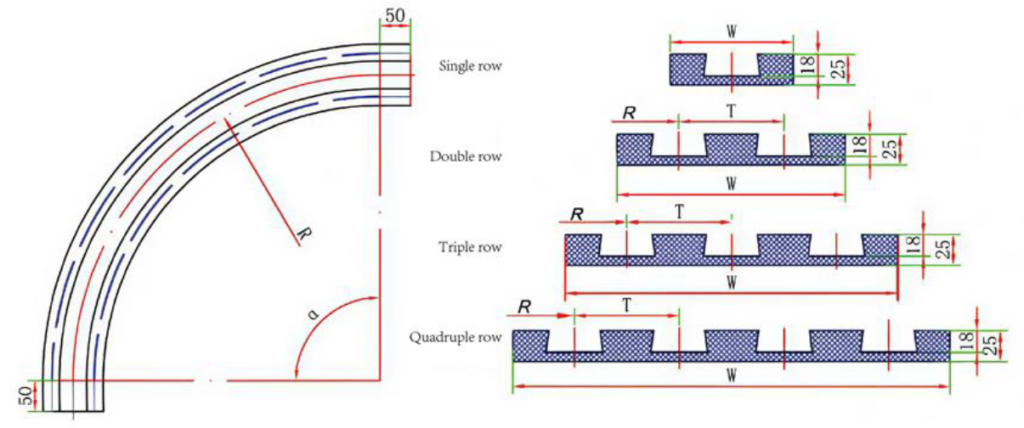

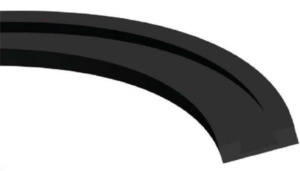

6.880 Series — Dovetail-Tail Lateral-Bend Chain Corner Tracks

Material: Material: Ultra-high-molecular-weight polyethylene (UHMWPE) + magnets + screw set
Color:  Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°.

880 Series Dovetail-Tail Corner Track Parameters
Corner Track Name Track Model Min. Center Radius
R (mm)		 Width W (mm) Pitch T (mm)
880-K325 Single-row corner track 880-K325-R500-100-1 500 100 –
880-K325 Double-row corner track 880-K325-R500-185-2 500 185 85
880-K325 Triple-row corner track 880-K325-R500-270-3 500 270 85
880-K325 Quadruple-row corner track 880-K325-R500-355-4 500 355 85
880-K450 Single-row corner track 880-K450-R610-130-1 610 130 –
880-K450 Double-row corner track 880-K450-R610-250-2 610 250 120
880-K450 Triple-row corner track 880-K450-R610-370-3 610 370 120
880-K450 Quadruple-row corner track 880-K450-R610-490-4 610 490 120

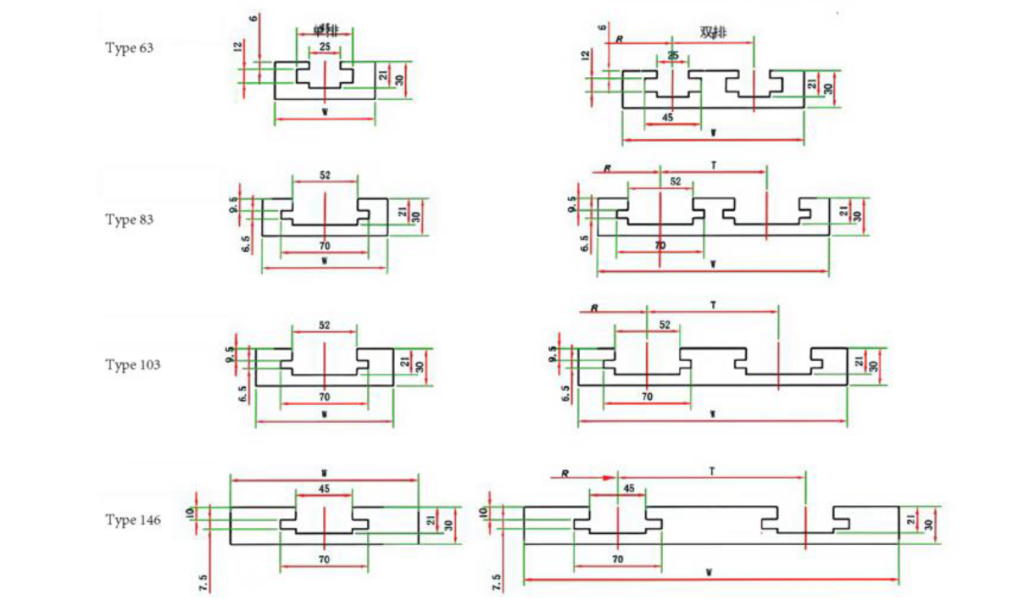

7.Silent chain series corner tracks

Material: Material: Ultra-high-molecular-weight polyethylene (UHMWPE) + magnets + screw set
Color:  Black, White, Blue, Yellow, Green, Red, Purple, Orange.
Working temperature: -30°C ~ 90°C.
Corner track angle: α = 15° ~ 90°.

Silent Chain Series Corner Track Parameters
 (Material: UHMWPE, Black; -30°C ~ 90°C; Angle 15°~90°)
Corner Track Name Track Model Min. Center Radius R (mm) Width
W (mm)		 Pitch
T (mm)
Tooth 63 Single-row corner track 63-R150-80-1 150 80 –
Tooth 63 Double-row corner track 63-R150-185-2 150 185 65
Tooth 83 Single-row corner track 83-R150-100-1 150 100 –
Tooth 83 Double-row corner track 83-R150-185-2 150 185 85
Tooth 103 Single-row corner track 103-R250-110-1 250 110 –
Tooth 103 Double-row corner track 103-R250-215-2 250 215 105
Tooth 146 Single-row corner track 146-R250-150-1 250 150 –
Tooth 146 Double-row corner track 146-R250-300-2 250 300 150





Shipping&Package

FAQ

Q1: What material are your corner tracks made of?
A: Made of black UHMWPE. Working temperature: -30℃ ~ 90℃.
Q2: What bending angles are available?
A: Standard angles:15°~90°, custom angles acceptable.
Q3: What types do you supply?
A: 1873, 880 dovetail & silent chain series; single/double/triple/quadruple row.
Q4: Can you customize sizes?
A: Yes. Custom radii & dimensions available per customer drawings.
Q5: What benefits do UHMWPE corner tracks have?
A: Low friction, wear-resistant, quiet operation, reduce chain wear & drive power consumption.
Q6: Can we get samples?
A: Yes, samples are available. Sample cost and freight to be borne by buyers.
Q7: What is your lead time?
A: 7–15 working days for standard items; custom products subject to confirmation.
Q8: What payment terms do you accept?
A: T/T (30% deposit, balance before shipment) is our main term. L/C also available.
