Split Nylon Bushing

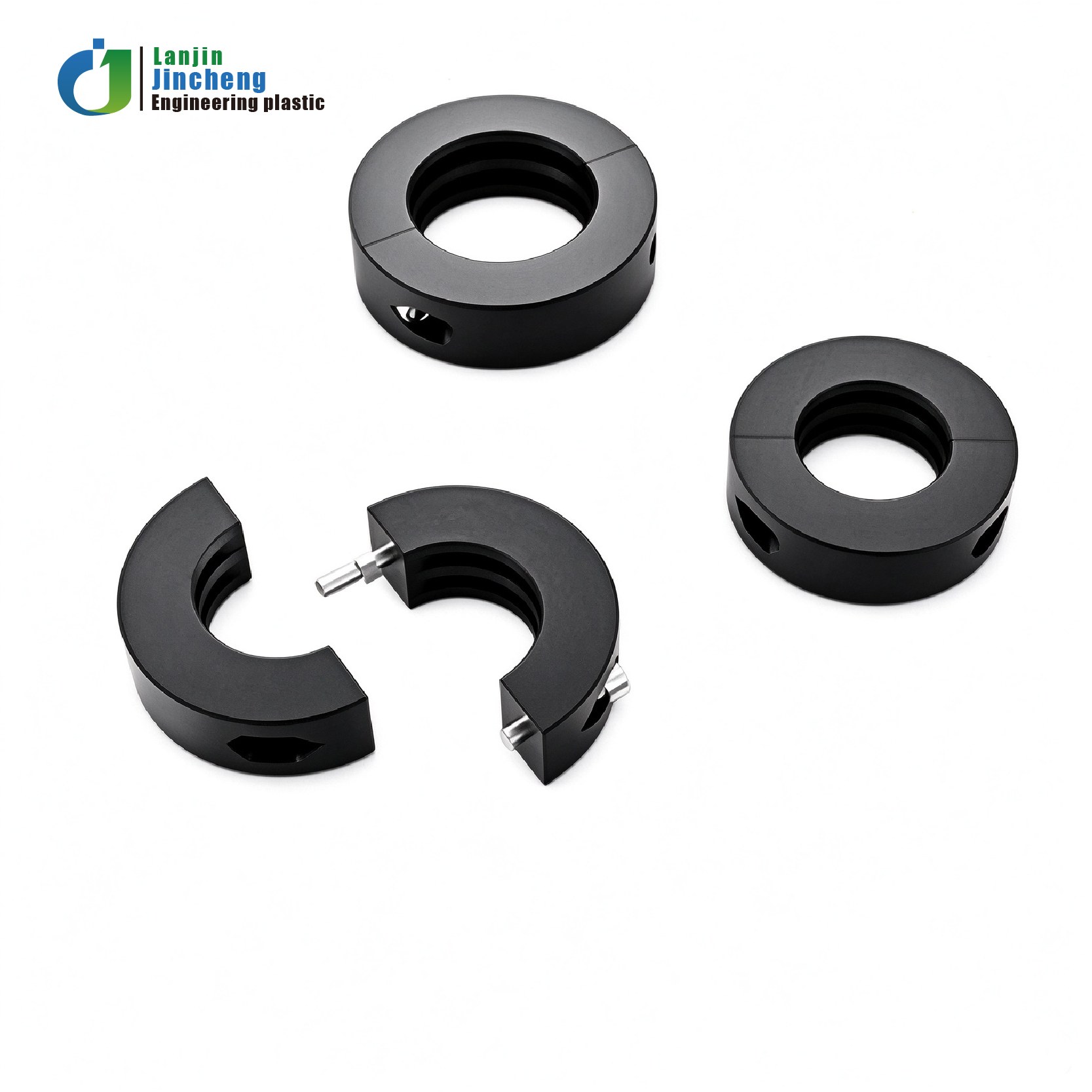

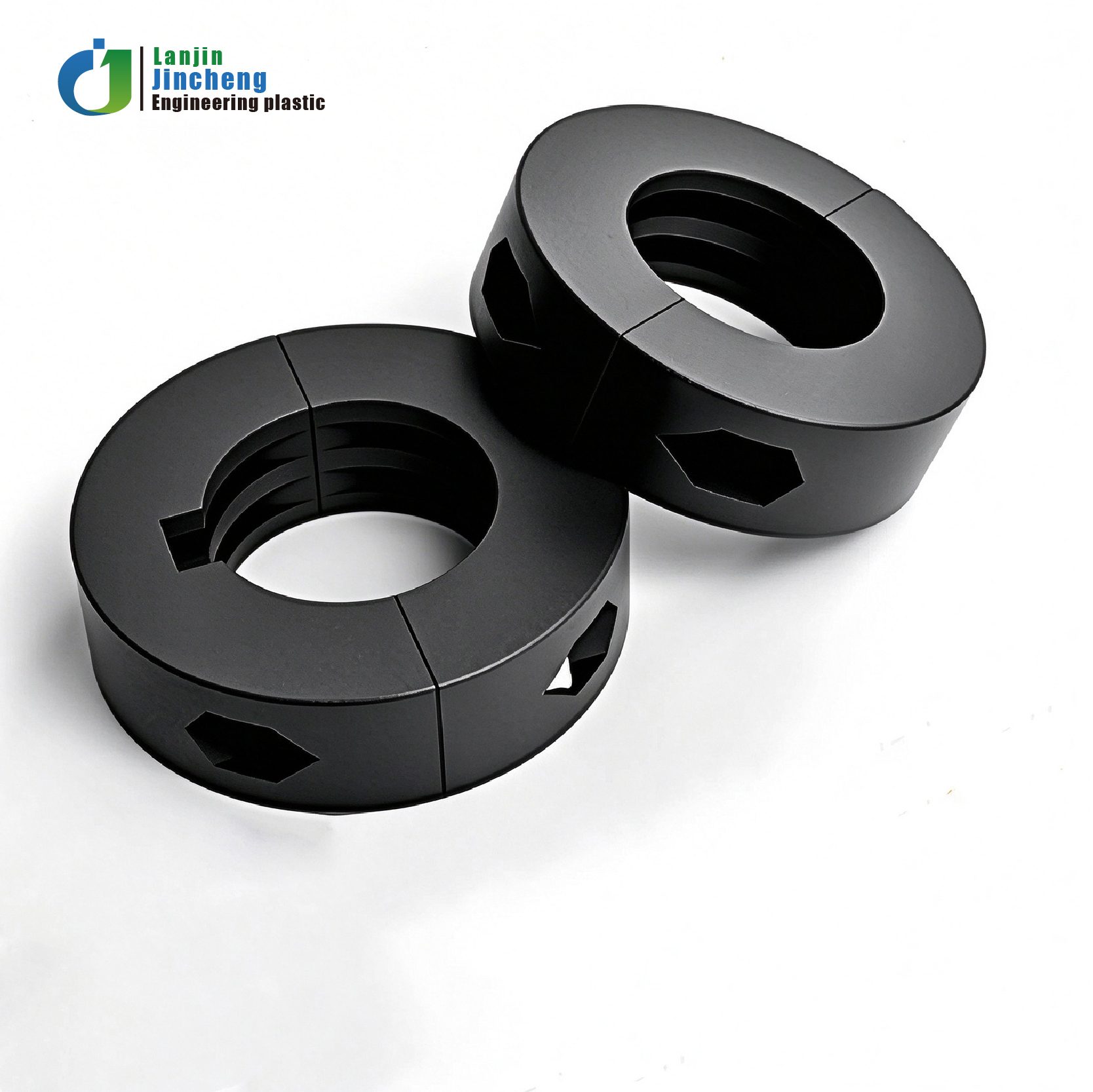

Split Nylon Bushing is a clamshell‑style two‑piece reinforced nylon bearing. It can be clipped onto the shaft directly without removing other shaft‑mounted components, greatly simplifying installation and on‑site replacement for conveyor systems.

Category:

Description

Split Nylon Bushing
• Material: Nylon PA6, machined molding, high wear resistance, self-lubricating, low noise.
• Structure: Half-split / split open design, easy to install and replace without removing the whole shaft.
• Application: Heavy-load conveying machinery, textile machinery, mining equipment, conveyor lines.
• Feature: Good shock absorption, corrosion resistance, protects the shaft from scratching.
• Tolerance: Bore diameter tolerance d: ±0.1mm.
• Customization: Oil groove, oil hole, flanged type, OEM custom machining available.

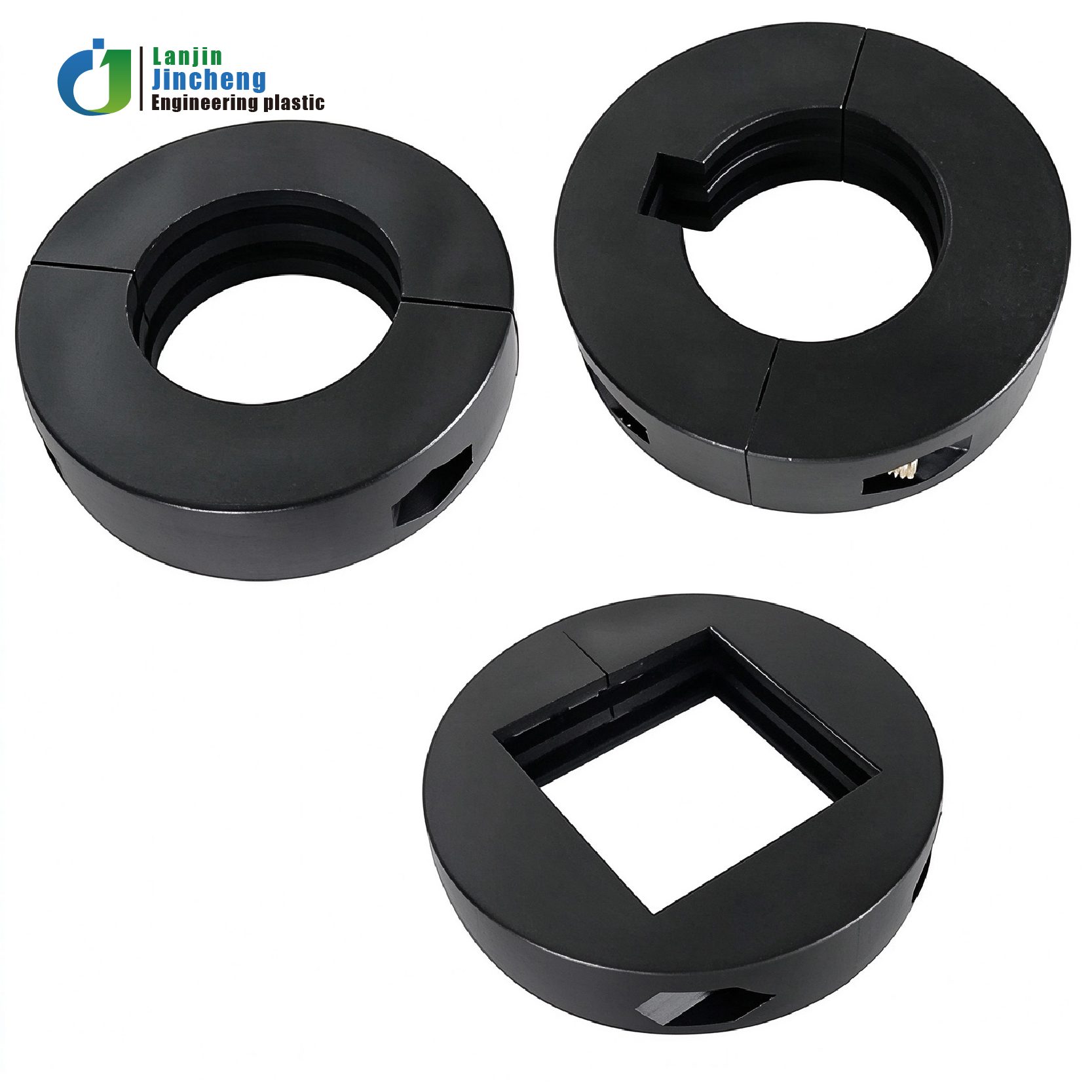

Product Range Summary
Product Family Type / Feature Model No. Dimension Range Material
Plastic Nylon Split Bushing (Without Keyway) Round bore, plain type DS-904-ZL ~ DS-908-ZL OD Φ45–Φ65 / ID Φ20–Φ40 Reinforced Nylon
Plastic Nylon Split Bushing (With Keyway) Round bore with keyway DS-909-ZL ~ DS-913-ZL OD Φ45–Φ65 / ID Φ20–Φ40, Keyway 8–12 Reinforced Nylon
Square-Bore Split Bushing Square bore, plain type DS-925-ZL ~ DS-927-ZL Bore 40×40–60×60 / OD Φ75–Φ110 Reinforced Nylon

Product selection guide

Drawing
Without keyway With keyway Square bore

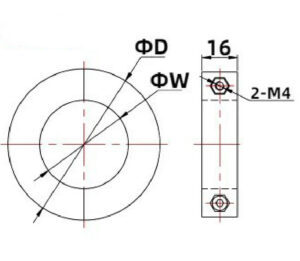

1. Plastic Nylon Split Bushing (Without Keyway)

Model No. Product Specification Outer Diameter
(D)		 Inner Diameter
(W)		 Material
DS-904-ZL Round Split Fixed Bushing Φ45 Φ20 Reinforced Nylon
DS-905-ZL Φ50 Φ25 Reinforced Nylon
DS-906-ZL Φ55 Φ30 Reinforced Nylon
DS-907-ZL Φ60 Φ35 Reinforced Nylon
DS-908-ZL Φ65 Φ40 Reinforced Nylon

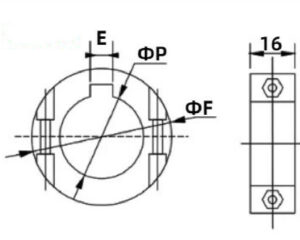

2.Plastic Nylon Split Bushing (With Keyway)

Model No. Product Specification Outer Diameter (F) Inner Diameter (P) Keyway (E) Material
DS-909-ZL Round Split Fixed Bushing Φ45 Φ20 8 Reinforced Nylon
DS-910-ZL Round Split Fixed Bushing Φ50 Φ25 8 Reinforced Nylon
DS-911-ZL Round Split Fixed Bushing Φ55 Φ30 8 Reinforced Nylon
DS-912-ZL Round Split Fixed Bushing Φ60 Φ35 10 Reinforced Nylon
DS-913-ZL Round Split Fixed Bushing Φ65 Φ40 12 Reinforced Nylon

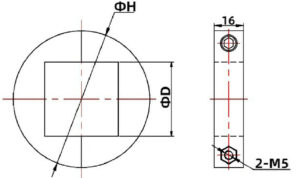

3.Square-Bore Split Bushing

Code Product Specification Bore Diameter (D) Outer Diameter (H) Material
DS-925-ZL Square Split Fixed Bushing 40×40 Φ75 Reinforced Nylon
DS-926-ZL Square Split Fixed Bushing 50×50 Φ95 Reinforced Nylon
DS-927-ZL Square Split Fixed Bushing 60×60 Φ110 Reinforced Nylon

Shipping&Package

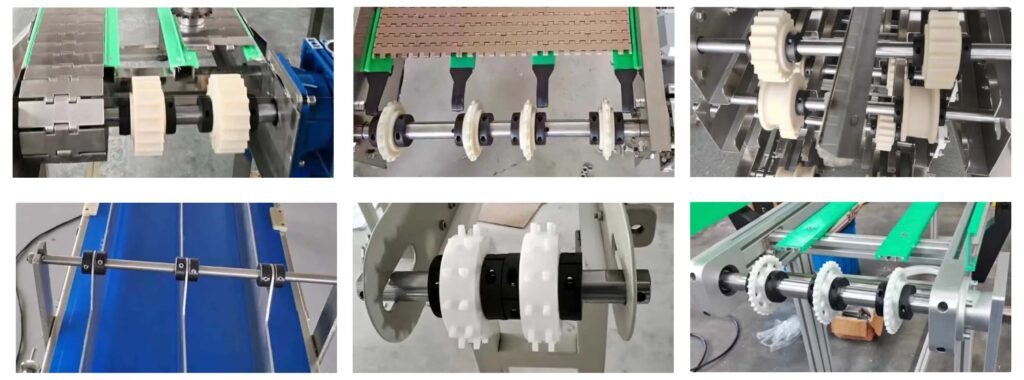

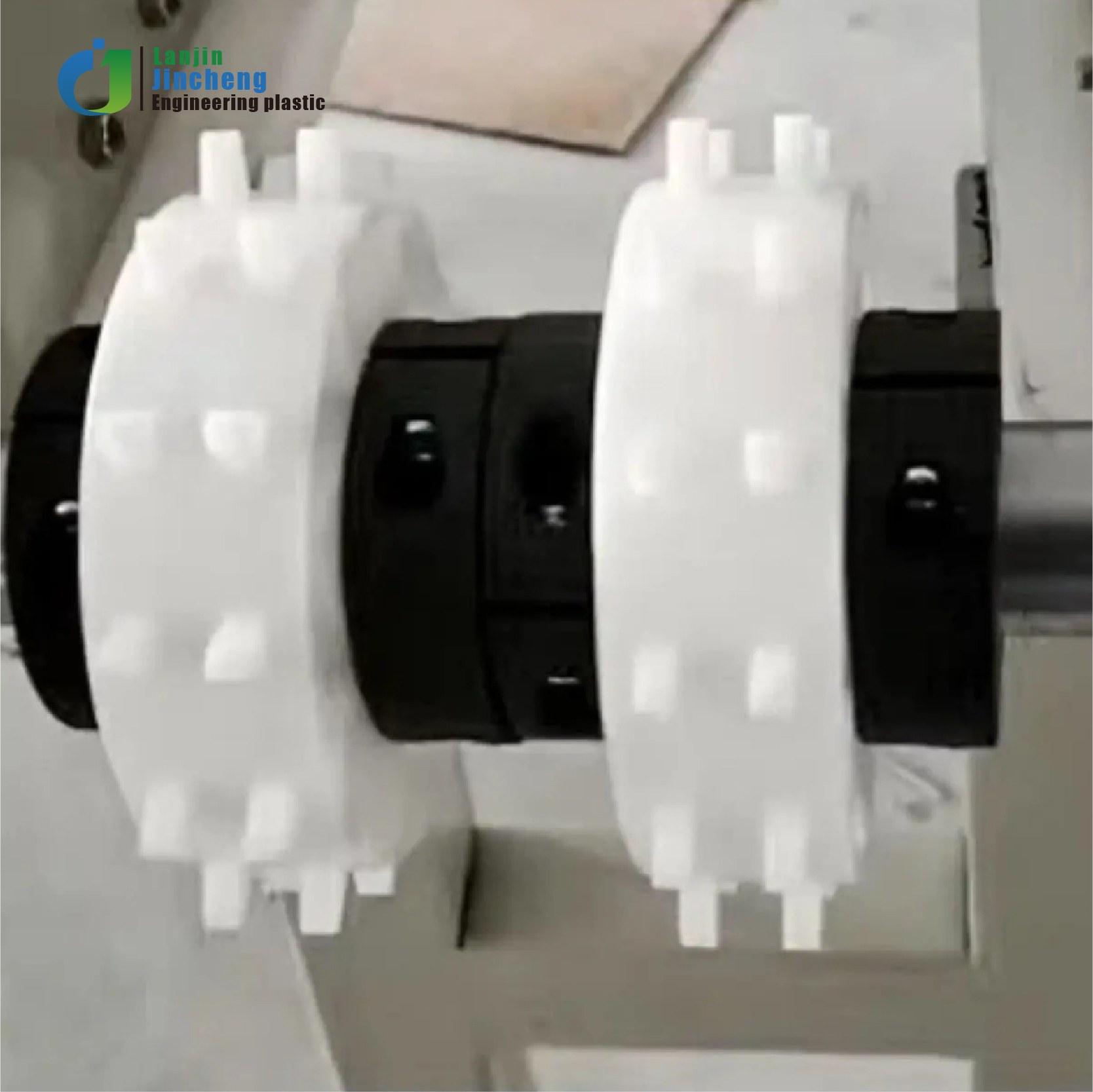

Application

FAQ

Q1. What is a nylon half‑split bushing?
A. It is a clamshell‑style two‑piece reinforced nylon bearing. It can be clipped onto the shaft directly without removing other shaft‑mounted components, greatly simplifying installation and on‑site replacement for conveyor systems.
Q2. What material are the split bushes made of?
A. They are manufactured from glass‑filled reinforced nylon. The material offers good self‑lubricating performance, low friction and excellent wear resistance. Extra grease lubrication is normally not necessary.
Q3. What bore types are available for this series?
A. Three standard bore versions are in stock: plain round bore without keyway, round bore with keyway, and square bore. Custom bore specifications can be developed upon request.
Q4. Do I need to disassemble the whole shaft during installation?
A. No disassembly of the complete shaft is required. Just open the two halves, clamp them around the shaft and tighten the set screws. Existing sprockets and rollers on the shaft can stay in place.
Q5. What is the operating temperature range?
A. The regular working temperature ranges from ‑20℃ to +80℃. Short‑term peak temperature can reach 100℃. Continuous operation above 100℃ is not recommended.
Q6. Can you provide samples for testing before bulk purchase?
A. Yes, test samples are available. Sample cost and courier freight are at the buyer’s expense. Partial sample fee can be refunded when you confirm a formal bulk order.
Q7. Can we get custom‑made sizes or OEM service?
A. OEM & ODM custom service is supported. We can open new injection molds according to your drawings for non‑standard dimensions. New molded items will apply to a minimum order quantity requirement.
