Outrigger Pads

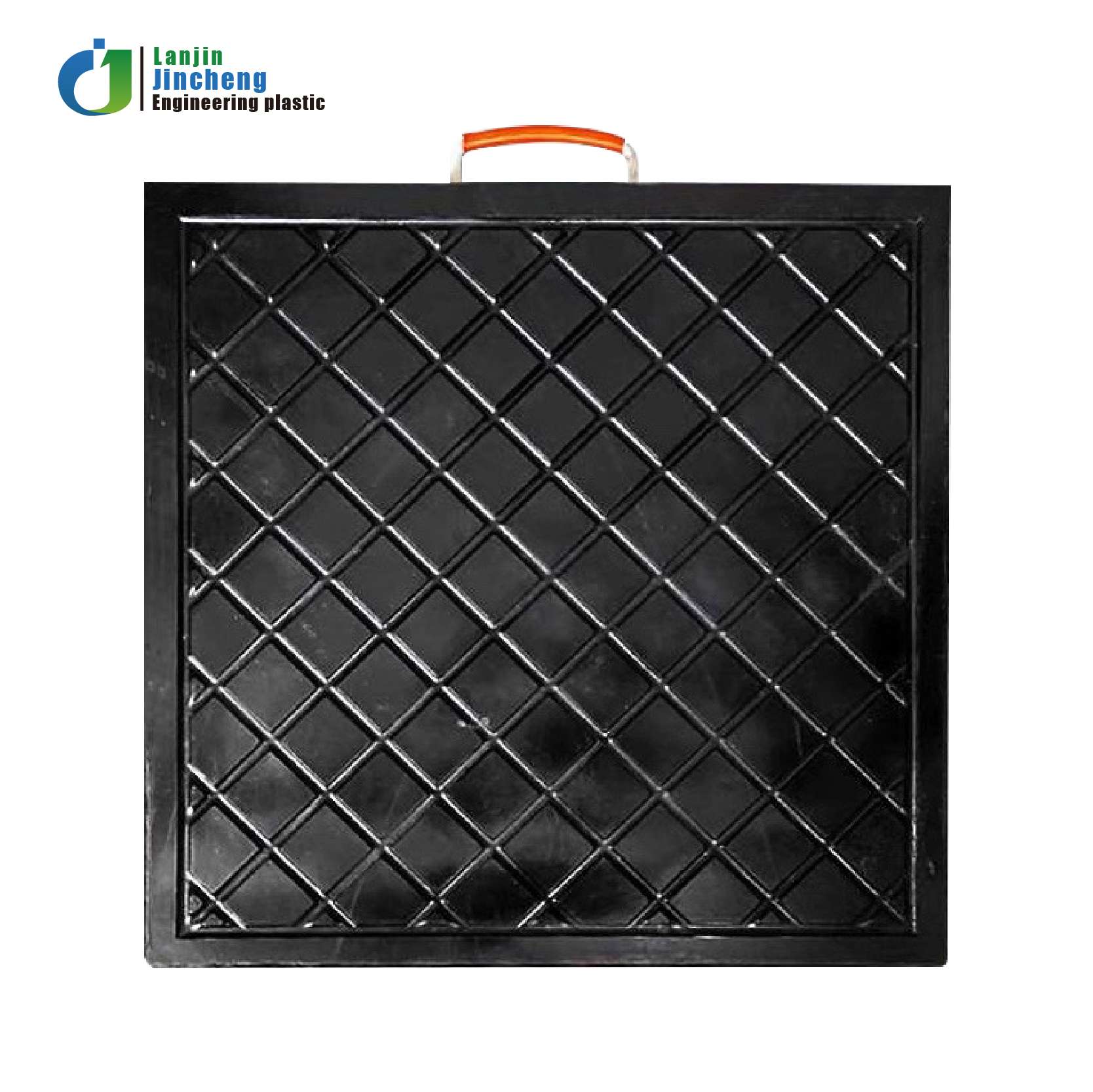

Outrigger Pads - Image 2

Outrigger Pads

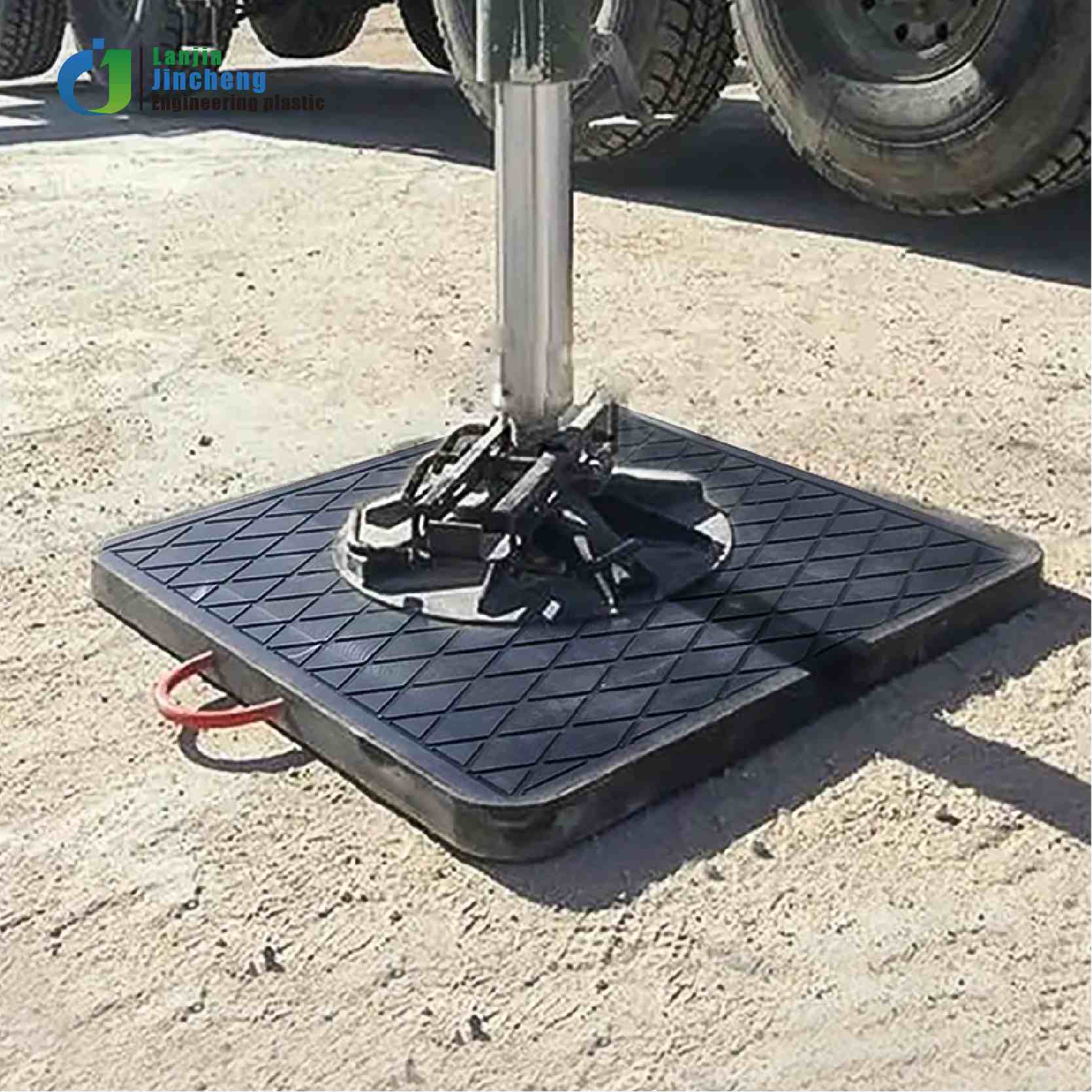

Outrigger Pad, also known as crane outrigger pad or pump truck support pad. It is placed underneath the outriggers of cranes, concrete pump trucks, aerial ladder trucks and other heavy construction machinery.
During lifting work, the outriggers create massive concentrated load. The pad enlarges the contact area and disperses pressure, preventing outrigger sinking, ground collapse and vehicle tipping over to guarantee construction safety.
Material: Virgin UHMWPE (Ultra-High Molecular Weight Polyethylene)

Category:

Description

Outrigger pads are heavy-duty load-spreading plates placed under the outriggers of cranes, concrete pump trucks and heavy machinery. They distribute concentrated pressure over a larger ground area, prevent sinking and tipping during lifting operations. Our UHMWPE outrigger pads are lightweight, impact-resistant and non-corrosive.

Product Name Outrigger Pad / Stabilizer Pad (for crane & pump truck legs)
Material Ultra-High Molecular Weight Polyethylene (UHMWPE)
Specification Custom / Non-standard sizes available
Material Quality 100% virgin material — no recycled filler
Key Advantages High strength, unbreakable, impact-resistant, anti-slip
Manufacturing Process Ultra-high pressure molding + CNC milling/engraving
Application Range Concrete pump trucks, truck cranes, aerial work platforms, and other heavy equipment outriggers

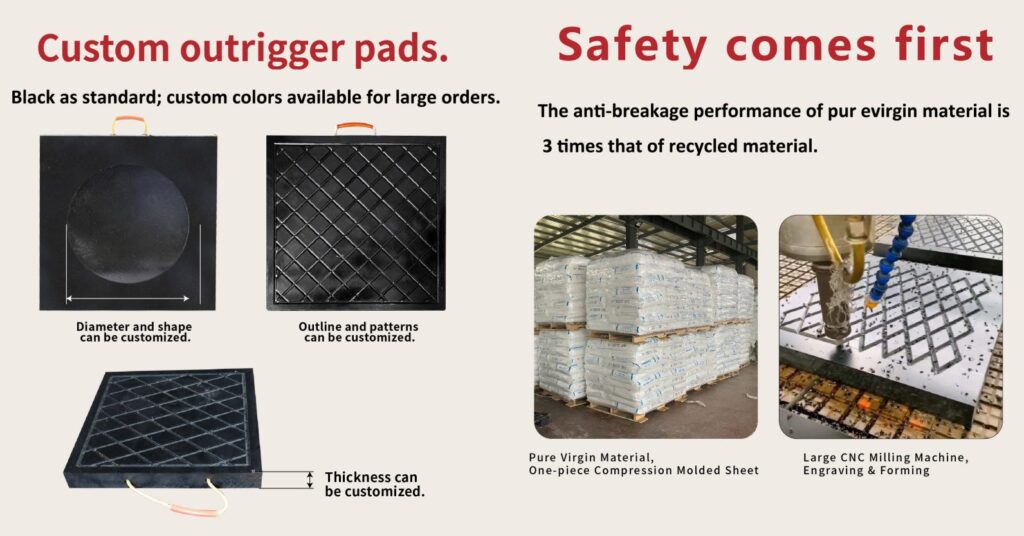

Customization Size, thickness, diameter, shape and anti-slip groove all customizable

Product selection guide



UHMWPE Outrigger Pad — Standard Specifications
Size Code (mm) Length (mm) Width (mm) Thickness (mm) Weight (kg) Application Range
300×300×40 310 310 40 3.844 Aerial ladder platform
300×300×50 310 310 50 4.805 Aerial ladder platform
400×400×40 410 410 40 6.724 Aerial ladder / below 5 tons
400×400×50 410 410 50 8.405 Pump truck / 5–10 tons
400×400×60 410 410 60 10.086 Pump truck / 10–15 tons
500×500×40 510 510 40 10.404 Pump truck / 15–20 tons
500×500×50 510 510 50 13.005 20–25 tons
500×500×60 510 510 60 15.606 25–30 tons
600×600×50 610 610 50 18.605 30–35 tons
600×600×60 610 610 60 22.326 35–40 tons
600×600×80 610 610 80 29.768 40–45 tons
800×800×50 810 810 50 32.805 45–50 tons
800×800×60 810 810 60 39.366 50–55 tons
800×800×80 810 810 80 52.488 55–60 tons

Notes:

1. Length and width include ~10 mm tolerance from nominal size. Thickness is exact.

2. Anti-slip diamond pattern on top surface; circular anti-slip groove for outrigger foot is standard.

3. Custom sizes, thicknesses, and shapes (square, rectangular, circular) are available on request.

4. Choose pad size based on the total load and ground conditions. When in doubt, size up.

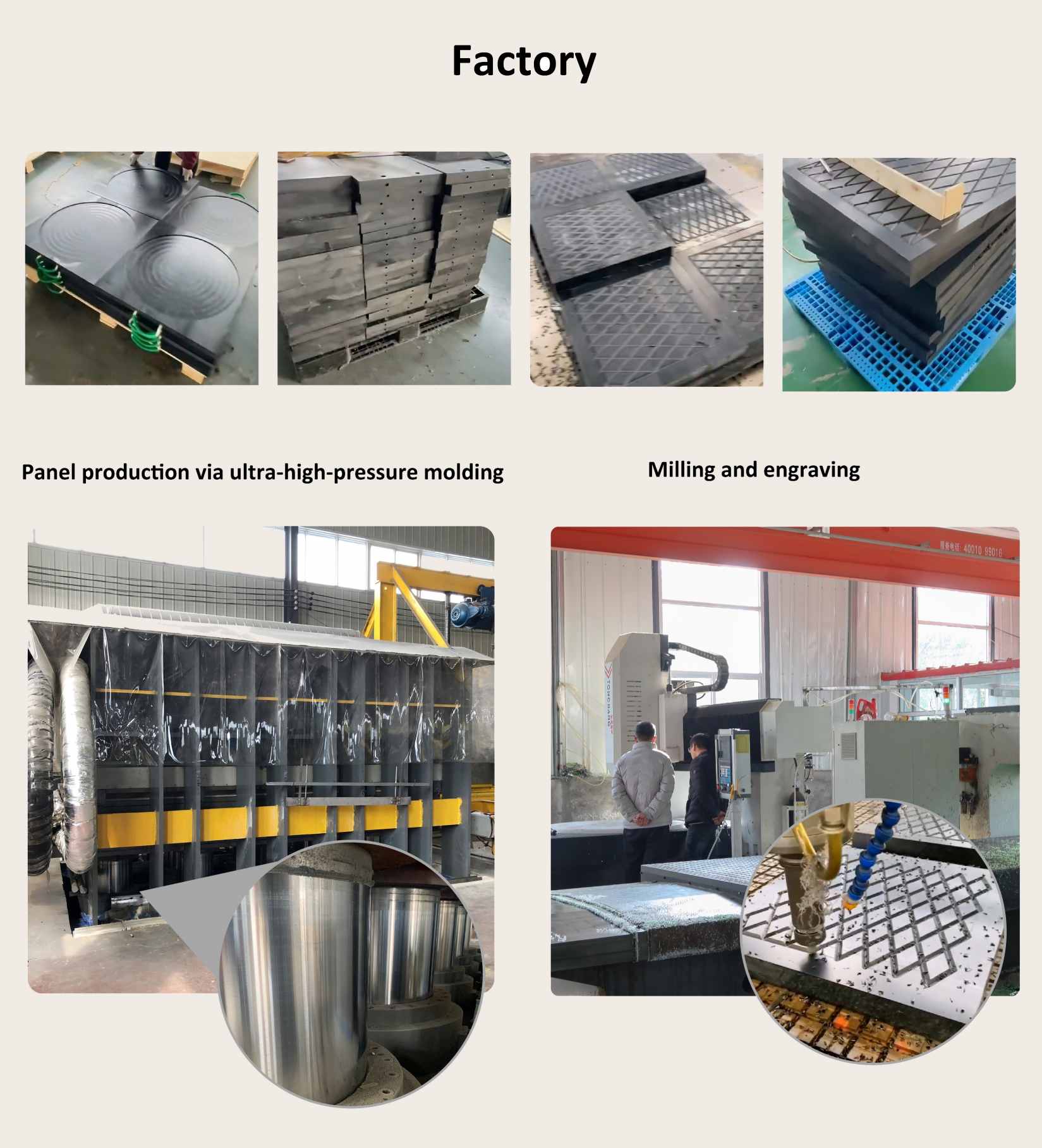

Factory

Factory covers an area of ​​20,000 square meters, is equipped with 150 production units, and has an annual output exceeding 10,000 tons, enabling end-to-end production ranging from engineering plastic raw materials to finished machined parts.

FAQ

1.What are outrigger pads used for?
They are load-bearing support plates placed under crane and equipment outriggers to spread pressure and prevent sinking on soft ground.
2. What material are your outrigger pads made of?
We use high-performance UHMWPE. It features high impact resistance, low water absorption and long service life.
3. Can you customize the size and color?
Yes. Custom dimensions, thicknesses and colors are available to meet your project requirements. OEM & ODM orders are acceptable.
4. What are your payment terms?
We support T/T, L/C at sight. Normally 30% deposit before production, balance to be paid before shipment.
5. What is your lead time?
For standard items, lead time is 7–15 working days after receipt of your deposit. Customized orders will be confirmed separately.
6. Are they weather resistant and what is the max load capacity?
Yes. They resist UV, moisture and extreme temperatures, suitable for outdoor long-term use. The bearing capacity depends on size and thickness. We can provide load data according to your selection.
7. Do you provide samples for quality check?
Sample service is available. Sample cost and freight will be on buyer’s account, and sample charge can be deducted from bulk order.
