UHMWPE Sheet (Ultra High Molecular Weight Polyethylene Sheet)

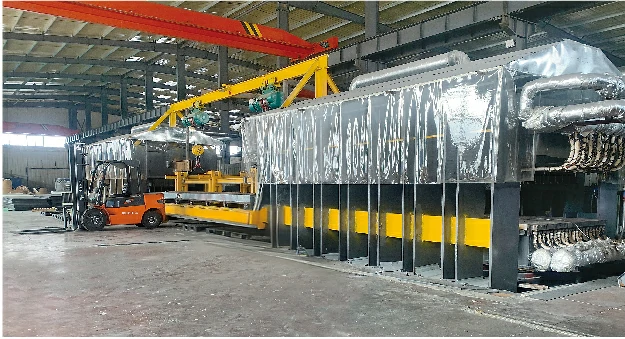

Professional high – pressure compression molding plate production line

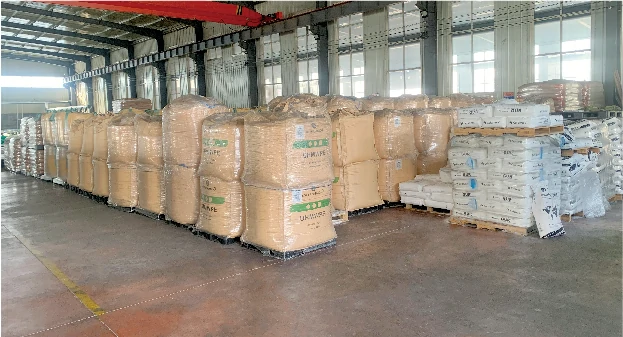

We have a perennial reserve of over 200 tons of polymer raw materials,
with a daily production capacity reaching 8000 kilograms.

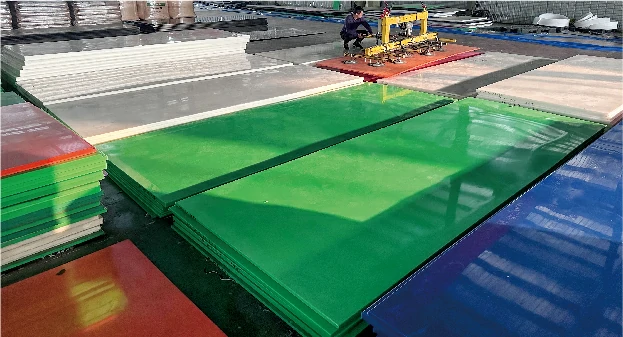

We have in – stock products in various colors and specifications.
Plates in stock will be shipped on the same day.

• High temperature of 250 degrees Celsius
• Pressure of 20Mp
• Maintain high temperature and high
• pressure for 2 – 24 hours

• Adopt brand – new raw materials
• Precisely and evenly adjust the color
• Heat the mould and apply pressure
• Strictly conduct quality inspection

• Large quantities of raw materials
• Virgin materials
• Ultra-high molecular weight
• Strictly proportioned

Customized processing of various machine tools and equipment

It can be cut into corresponding rectangles according to your requirements.
We have a large number of precision milling machines and machining centers.
We can process various parts according to the drawings.
Drawings in 3D, CAD format or photos can all be used for processing.

More than 20 milling machines

Customizable product processing

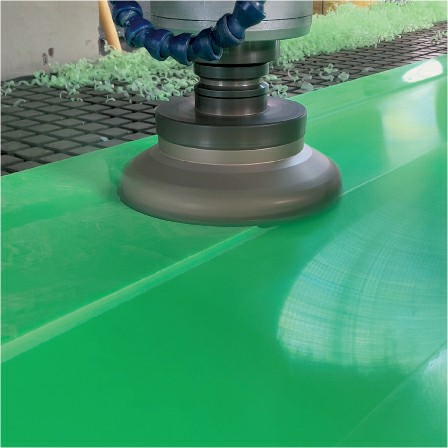

Super-flat surface machining

Strict quality control

UHMWPE Sheet Ordering Details

Color, size, and molecular weight can all be customized.

颜色

Commonly used colors include white, black, green, red, orange, blue, purple, and yellow;
other colors can also be customized.

Characteristics of UHNWPE sheets

Mechanical properties

Its abrasion resistance strength is 7 – 10 times that of carbon steel and 10 times that of stainless steel.
Its impact strength is as high as over 150kJ/m². The impact strength at room temperature is five times that of ABS.

Friction and lubrication

The coefficient of dynamic friction is as low as 0.05 – 0.11, and it can still maintain good sliding performance under non – lubricated conditions.
Its self – lubricating property and anti – adhesion property are remarkable. With an extremely low surface energy, it can effectively prevent materials from adhering, reducing cleaning costs.

Chemical stability

It has excellent resistance to most chemical substances. Except for concentrated sulfuric acid (>75%) and concentrated nitric acid (>20%), it is hardly eroded by acids, alkalis, salts and other corrosive media.

Thermodynamics and environment

It remains ductile at the liquid helium temperature of – 269℃ and can be used for low – temperature components in the nuclear industry. Its heat distortion temperature is 85℃.It is resistant to aging and ultraviolet rays, even if buried on the ground or underground for 50 years.

Lightweighting and processing

It has a density of only 0.93 – 0.98g/cm³, about one – eighth that of steel, which makes it easy to handle and install.

Health and safety

UHMWPE is non – toxic, odorless and tasteless, meeting the standards of the US FDA and USDA. It can come into direct contact with food and medicine.

Other characteristics

The impact energy absorption value is the highest among plastics, which can effectively reduce mechanical vibration and noise.The breakdown voltage is 50kV/mm, making it suitable for the field of electrical engineering.

Application Cases of UHNWPE Sheets

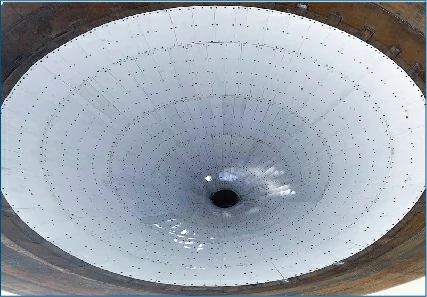

Coal plants and mines:
self-lubricating, anti-adhesion, ash-free and scale-reducing.

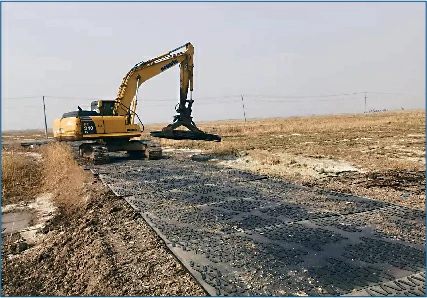

Logistics and transportation field:
Utilize the advantages of “self – lubrication + low friction”

Corrosion prevention field:
give play to the characteristics of “corrosion resistance + impact resistance”.

Coal plants and mines:
self-lubricating, anti-adhesion, ash-free and scale-reducing.

Logistics and transportation field:
Utilize the advantages of “self – lubrication + low friction”

Corrosion prevention field:
give play to the characteristics of “corrosion resistance + impact resistance”.

Product List of UHNWPE Sheets

UHMWPE sheet, also known as UHMW sheet or ultra high molecular weight polyethylene sheet, is a high-performance engineering plastic widely used in industrial, mining, food processing, and conveyor applications. It is recognized for its outstanding wear resistance, low friction coefficient, high impact strength, and excellent chemical resistance.

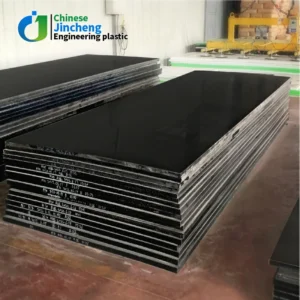

Our UHMWPE sheets are available in multiple grades and colors, including black UHMW sheet, natural, white, and customized options. For specialized environments, we also offer anti static UHMW for electronic and dust-sensitive applications, as well as reprocessed UHMW sheet solutions for cost-effective industrial use.

Available Sizes & Thickness
We supply standard sizes such as UHMW sheet 4×8 and UHMW sheet 5×10, along with custom dimensions based on your requirements. A wide range of UHMWPE sheet thickness options is available to meet different load and wear conditions.

Applications
UHMWPE sheets are commonly used for:

Wear liners and chute liners

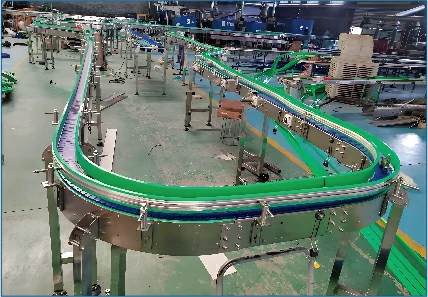

Conveyor wear strips and guide rails

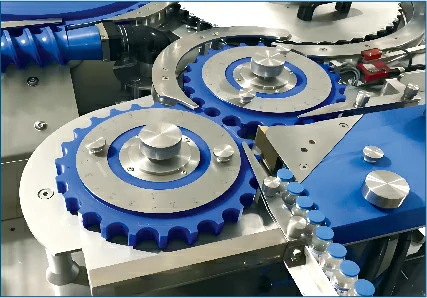

Machine components and impact plates

Food-grade processing equipment

Supply & Pricing

As experienced UHMW sheet suppliers, we provide stable quality and bulk production capacity. If you are looking for UHMW sheets for sale, we offer competitive UHMW sheet price options depending on grade, size, and quantity. Custom machining and OEM service are also available.

Contact us today for technical support, specifications, and a quotation tailored to your application needs.
