CKG-H Type Chain Guide Rail – High-Strength Conveyor Chain Guiding System

Product Overview

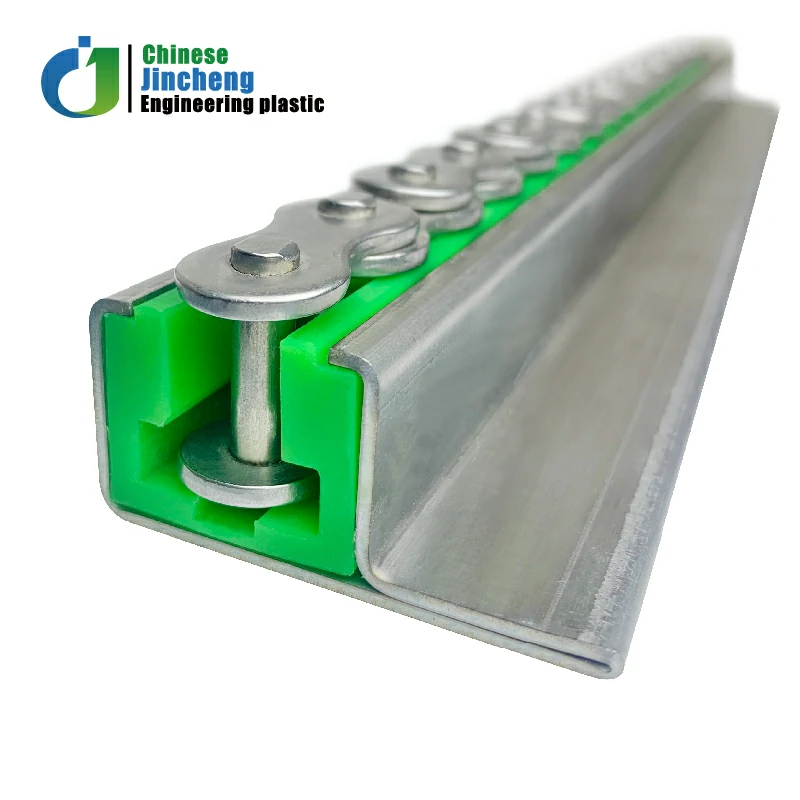

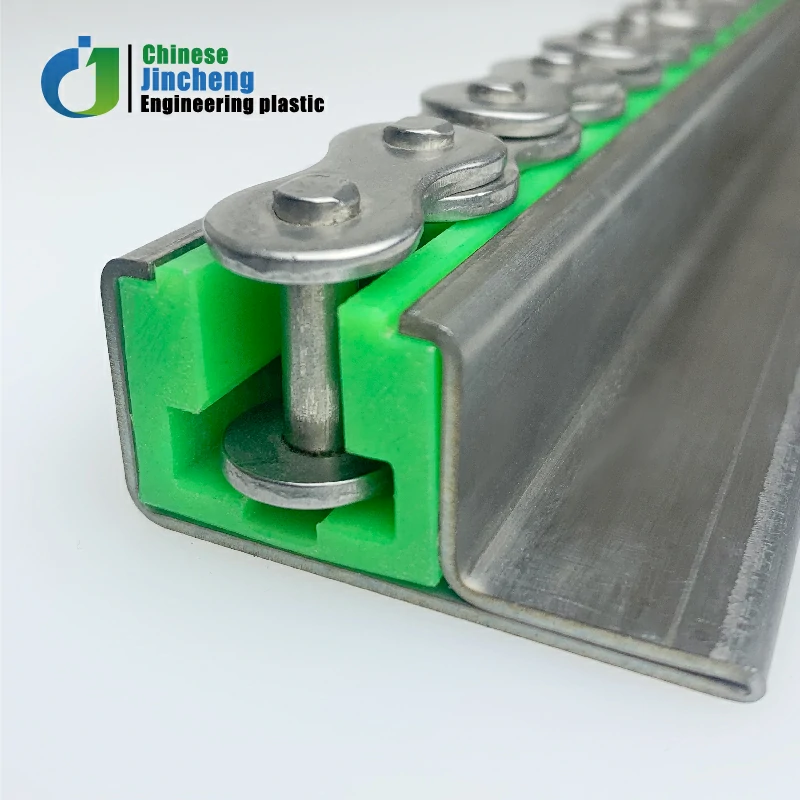

The CKG-H Type chain guide rail is a heavy-duty conveyor component designed to guide, support, and stabilize roller chains in industrial conveying systems. Built with a durable steel channel and a high-performance UHMWPE wear strip, it delivers excellent strength, low friction, and long service life.

This guide rail ensures precise chain alignment, reduces vibration, and improves the overall efficiency and reliability of conveyor operations across a wide range of industries.

Key Features & Advantages

1. Outstanding Wear Resistance

The UHMWPE (Ultra-High Molecular Weight Polyethylene) surface offers extremely high abrasion resistance, significantly extending the lifespan of both the guide rail and the conveyor chain.

2. Low Friction & Self-Lubricating Performance

With a very low coefficient of friction, the guide rail allows chains to move smoothly without additional lubrication, reducing energy consumption and maintenance costs.

3. Reinforced CKG-H Structure

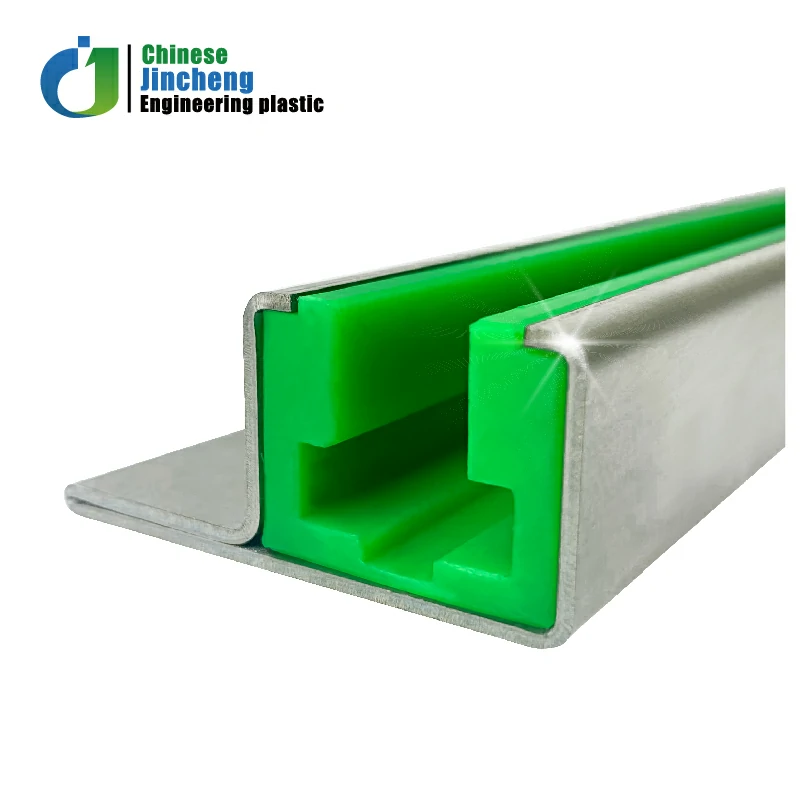

The CKG-H design integrates a robust steel profile with a plastic wear strip, providing strong load-bearing capacity and ensuring stable operation under heavy-duty conditions.

4. Noise & Vibration Reduction

Compared with traditional metal guides, UHMWPE effectively reduces noise and vibration, creating a quieter and more efficient production environment.

5. Excellent Chemical & Impact Resistance

The material offers strong resistance to chemicals, moisture, and impact, making it suitable for harsh environments such as food processing, packaging, and industrial manufacturing.

Applications

The CKG-H Type chain guide rail is widely used in:

• Conveyor and material handling systems
• Food and beverage processing lines
• Packaging and bottling equipment
• Automated production and assembly lines
• Logistics and warehousing systems

It plays a critical role in maintaining chain alignment, reducing wear, and ensuring smooth and continuous operation.

Customization Options

To meet various industrial requirements, the CKG-H guide rail can be customized with:

• Material: UHMWPE, Nylon, or other engineering plastics
• Steel channel: Galvanized steel or stainless steel (304/316)
• Length: Standard or custom sizes
• Color: Green, black, white, etc.
• Profiles: Compatible with different chain sizes and conveyor systems

Why Choose CKG-H Type Chain Guide Rail?

• Extends conveyor chain service life
• Reduces friction, noise, and maintenance
• Ensures stable and precise chain guidance
• Improves conveyor efficiency and productivity
• Suitable for heavy-duty and continuous operation

Conclusion

The CKG-H Type chain guide rail is a reliable and cost-effective solution for modern conveyor systems. Combining UHMWPE’s low-friction performance with a reinforced structural design, it ensures smooth operation, reduced wear, and long-term durability in demanding industrial environments.
