Factory customized high-quality PTFE rod

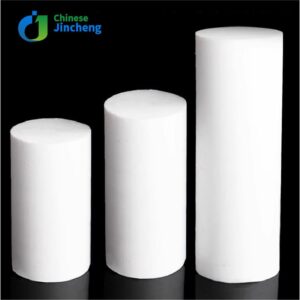

Polytetrafluoroethylene(PTFE)rod

Product Information

Polytetrafluoroethylene rod is a type of rod made of unfilled polytetrafluoroethylene resin (including regenerated

polytetrafluoroethylene resin) that is suitable for processing various gaskets, seals, lubricating materials that work

in corrosive media, as well as electrical insulation parts used at various frequencies. It is formed by pressing, paste

extrusion, or plunger extrusion processes.

Diameter:6~200mm,Usually there are

(5,6,8,,10,12,14,15,18,20,22,25,28,30,35,40,45,50,55,60,65,70,75,80,90,100,110,120,130,140,150,160,170,180,

190,200,230,250)specification, special sizes can be customized.

Length: 1000mm

Color: White

Technical Parameter

The characteristics of PTFE rods

High temperature resistance, and the range of operating temperature is very wide (from -200 degrees Celsius

to +260 degrees Celsius).

Basically resistant to all chemical substances except for some fluorides and alkaline metal liquids.

The extremely low friction coefficient gives it good self-lubricating properties.

Excellent mechanical properties include anti-aging properties, especially for applications in bending and swinging.

Outstanding flame retardancy (conforming to ASTM-D635 and D470 test procedures), and it is classified as a

flame retardant material in the air.

Excellent insulation properties (regardless of its frequency and temperature)

It has non-adhesiveness, and the surface is difficult for other substances to adhere to.

The water absorption rate is extremely low, and it has a series of unique properties such as self-lubrication

and non-adhesiveness.

Strong weather resistance, and it can be used in outdoor environments for a long time with basically unchanged

performance.

Application fields of PTFE rods

Polytetrafuoroethyene rods come in two types: extrusion rods and molding rods. Among known plastics,

polytetrafluoroethylene has the most excellent chemical corrosion resistance and dielectric properties. It can

be used at temperatures ranging from -180℃ to +260 ℃ , and has the lowest friction coefficient. It is mainly

applicable to: sealing gaskets, sealing rings insulation parts, corrosion-resistant industries, mechanical

components,linings, petroleum and natural gas, petrochemical industry, chemical industry,instrument and

equipment manufacturers, etc.

Processing methods of PTFE rods

Extrusion molding: The polytetrafluoroethylene resin is extruded into a rod shape through an extruder.

Molding: Put the polytetrafluoroethylene powder into a mold and mold it into a rod shape under high

temperature and high pressure.

Turning processing: The polytetrafluoroethyene rod is processed through a turning machine tool to

obtain the required size and shape.
