 821 double-hingestrai ght chain plate |
Pre-Purchase Notice
| Product prices do not include shipping costs. Please consult customer service for specific shipping fees. Shipping costs vary based on quantity, delivery address,and shipping timeframe. We will select the most cost-effective option according to your specific circumstances tominimize your shopping costs. |
Product information

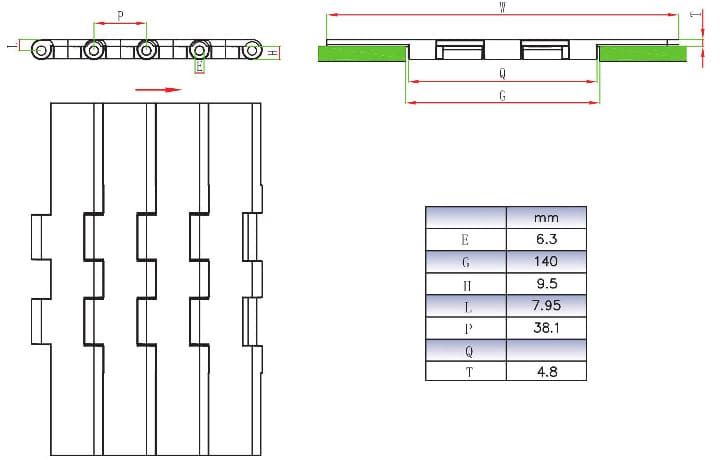

| Chain model | width(mm) | weight(kg/m) | Q value(mm) | Reverse bending radius |
| 821-K750 | 190.5 | 2.48 | 133.5 | 50 |
| 821-K1000 | 254.0 | 2.73 | 136.5 | 50 |
| 821-K1200 | 304.8 | 3.22 | 137.8 | 50 |
Mainly suitable for conveying various types of food, beverages, PET bottles, aluminum cans, and containers.
Material is POM, color coffee, operating temperature -30 ° C~+90 ° C
The material of the pin shaft is cold-rolled austenitic stainless steel
Maximum speed: 50 meters per minute lubricant; 30 meters/minute desiccant.
The working load (25 ° C) is 2680N, and the maximum conveying length is 15 meters.
