 7705 type mesh belt chain |
Pre-Purchase Notice
| Product prices do not include shipping costs. Please consult customer service for specific shipping fees. Shipping costs vary based on quantity, delivery address,and shipping timeframe. We will select the most cost-effective option according to your specific circumstances to minimize your shopping costs.
|
Product information

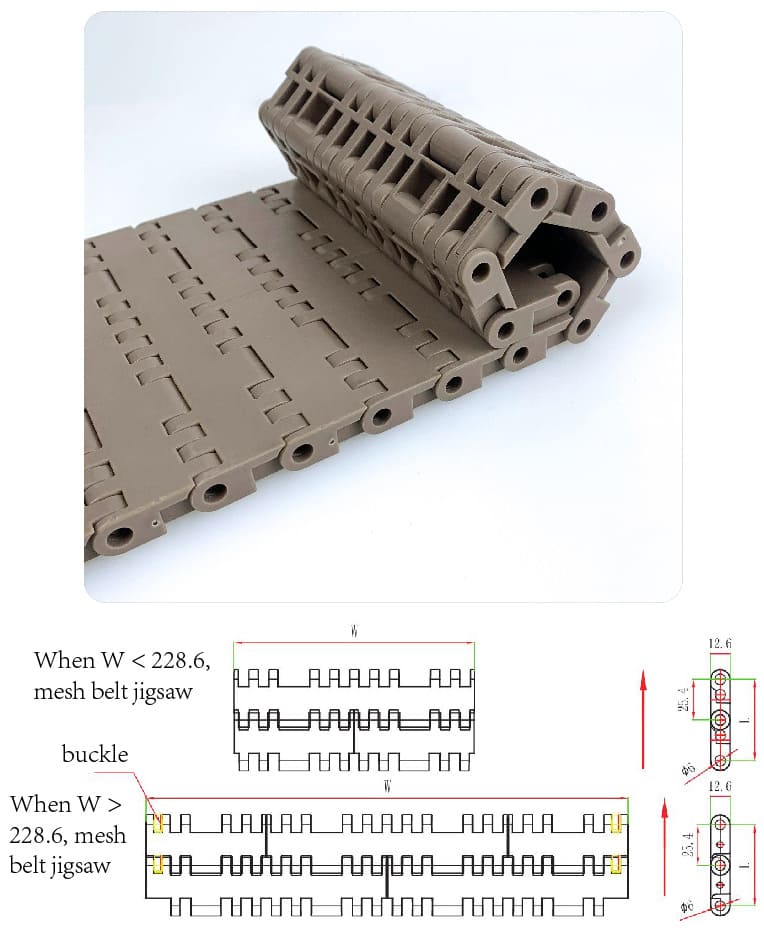

Standard mesh belt width W W=76.2*N
| 76.2 | 152.4 | 228.6 | 304.8 | 457.2 | 609.6 | 762 | 914.4 | 1066.8 | 76.2N |
N is incremented in integer multiples, due to the different shrinkage rates of the materials, the actual width value is lower than the standard value.
Mainly suitable for application in various glass bottles and packaging machine conveyor belts.
Mesh belt material: Polyoxymethylene (POM), operating temperature -30 ℃~+90 ℃.
Pin material: Polypropylene (PP).
Mesh belt load: POM is 17280N/M.
Mesh belt color: gray, coffee color.
POM mesh belt weight: 12.50kg/㎡
