Product information

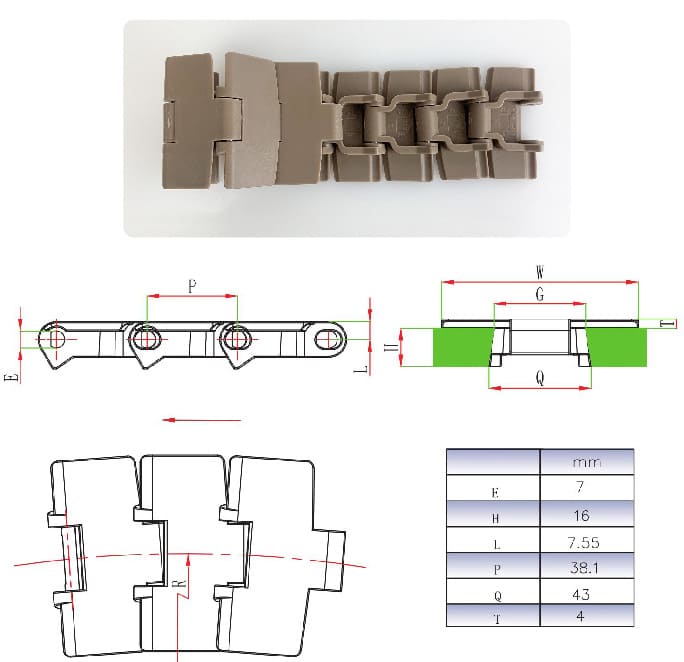

880 series dovetail type
| Chain model | width(mm) | weight(kg/m) | Reverse bending radius | Turning radius |
| 880-K325 | 82.6 | 0.89 | 75 | 500 |
| 880-K450 | 114.3 | 1.04 | 75 | 610 |
Mainly suitable for use in various food, beverage, PET bottles, aluminum cans, and various types of transportation.
Material is POM, color coffee, operating temperature -30 ° C~+90 ° C.
The material of the pin shaft is cold-rolled austenitic stainless steel.
Maximum speed: 50 meters/minute lubricant 30 meters/minute desiccant.
The working load (25 ° C) is 2100N, and the maximum conveying length is 9 meters.

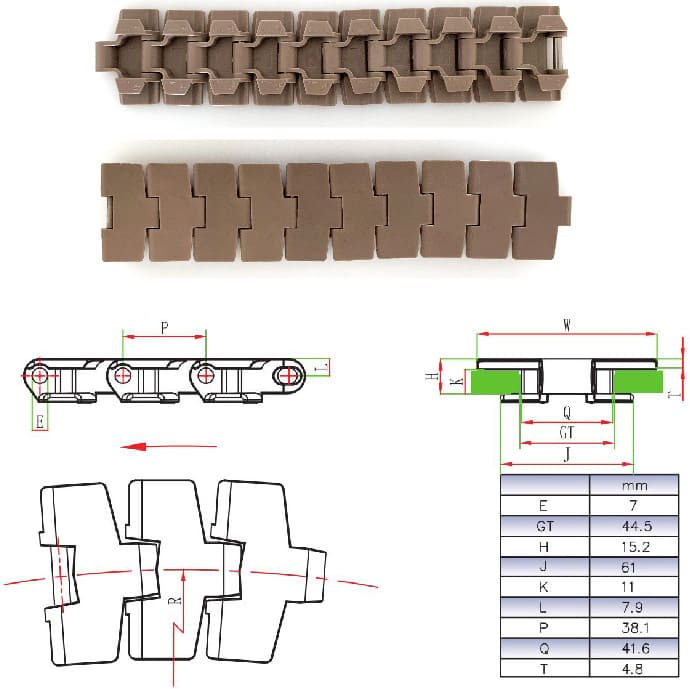

880M series magnetic side bending chain
| Chain model | width(mm) | weight(kg/m) | Reverse bending radius | Turning radius |
| 880MK325 | 82.6 | 1.03 | 75 | 500 |
Mainly suitable for use in various food, beverage, PET bottles, aluminum cans, and various types of transportation.
Material is POM, color coffee, operating temperature -30 ° C~+90 ° C.
The material of the pin shaft is carbon steel.
Maximum speed: 50 meters/minute lubricant 30 meters/minute desiccant.
The working load (25 ° C) is 2100N, and the maximum conveying length is 9 meters.

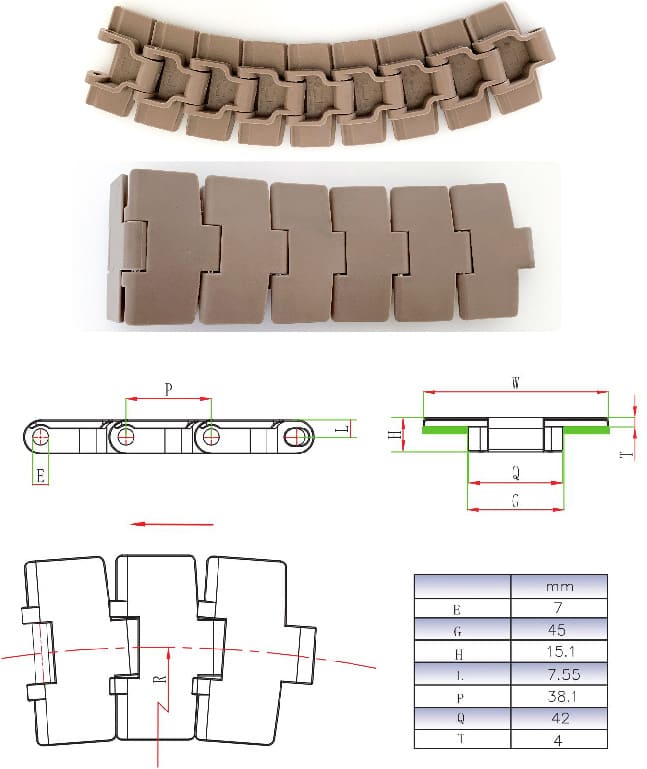

880TAB-RT series small radius side bending chain
| Chain model | width(mm) | weight(kg/m) | Reverse bending radius | Turning radius |
| 880TAB-RT-K325 | 82.6 | 1.05 | 75 | 200 |
| 880TAB-RT-K450 | 114.3 | 1.15 | 75 | 200 |
Mainly suitable for application in various light loads and 360 degree rotating conveyor belts.
Material is POM, color coffee, operating temperature -30 ° C~+90 ° C.
The material of the pin shaft is cold-rolled austenitic stainless steel.
Maximum speed: 50 meters/minute Lubricant 30 meters/minute Desiccant.
The working load (25 ° C) is 2100N, and the maximum conveying length is 12 meters.
