Magnetic corner tracks

Product characteristics

name：Magnetic corner tracks /Chain plate curved track/Magnetic curves
Material: Polyethylene UHMW-PE
color: Black, White, Green, Purple
working temperature:Using temperatures from -30 degrees to -90 degrees Celsius.
Application: Magnetic Chain Curve Guides Conveyor
Angle: α = 15 degrees to 90 degrees
Chain Type: 880M/1050/1060 Table Top chains

Magnetic corner tracks
Pulsation-free running and evenly balanced tensile and retaining forces on all tracks are necessary for gentle, low-noise conveying of products in the food, beverage and packaging industries.

It was possible to reduce tensile forces occurring in bends by up to 60 per cent. As a result, the new magnetic corner tracks reduce drive power consumption and allow longer conveyors to be constructed without increasing drive performance, thus enabling energy savings. The ingenious track-specific arrangement of the magnets depending on pin diameter and chain pitch ensures that magnetic corner tracks achieve virtually identical tensile and retention forces in every track.

As the tracks have outstanding sliding properties, flat top chains are less susceptible to wear. The tracks are made from high-quality, durable materials for long service life. magnetic corner tracks are available in all standard sizes for all common flat top chains, radii and angles. The range also includes standard TAB and bevel curves. We can also manufacture magnetic corner tracks in accordance with individual customer drawings.

 Highlights
Reduced power consumption possible,longer conveyor lines possible,fewer transfer stations required
High energy savings guaranteed
Longer conveyors without increasing drive performance possible
Reduced chain wear
No stick-slip effect (pulsation)
Gentle conveying with low noise emissions
absolutely jolt-free
Outstanding sliding properties of magnetic corner tracks
Superlative material quality for long service life
Magnetic corner tracks are available in all standard sizes.
Magnetic corner tracks can be manufactured in accordance with customer drawings.

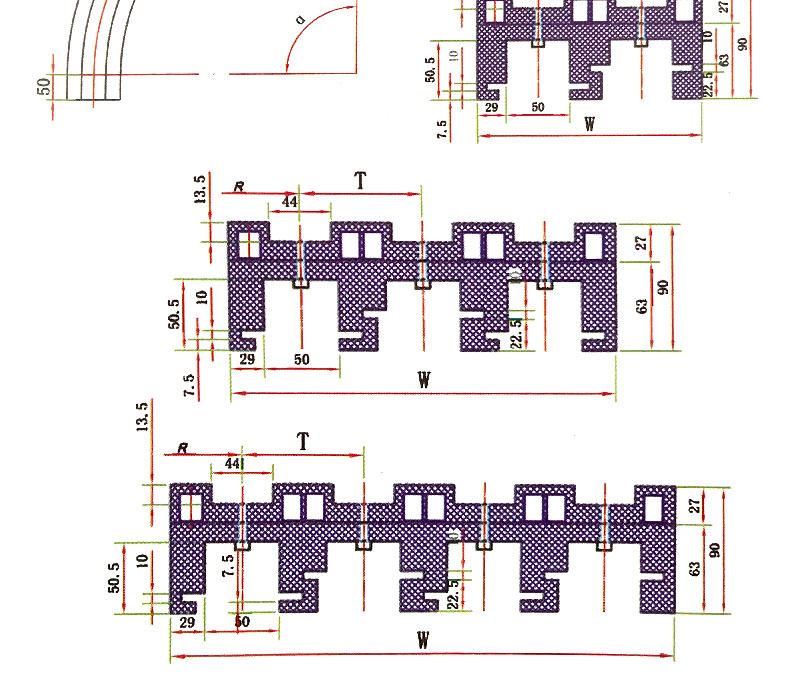

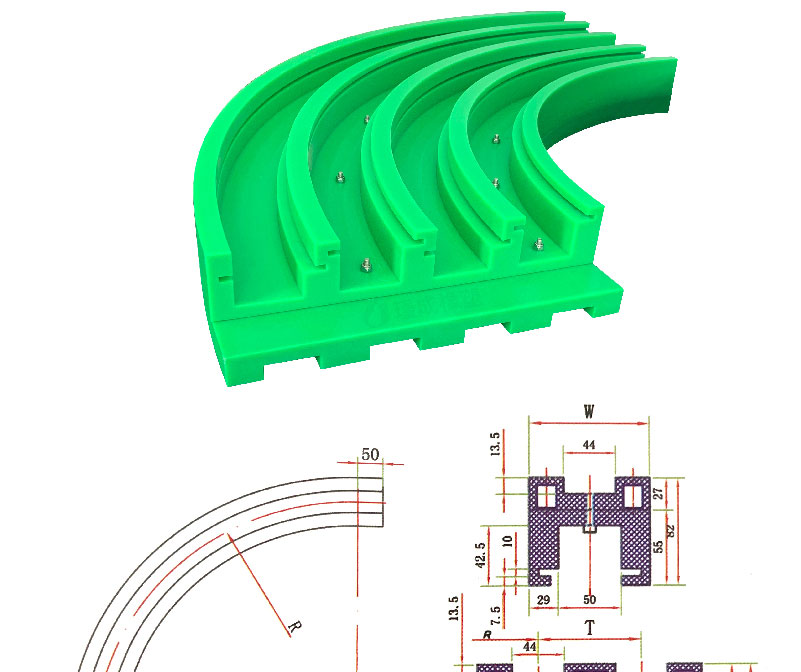

1050、1060 Magnetic corner tracks

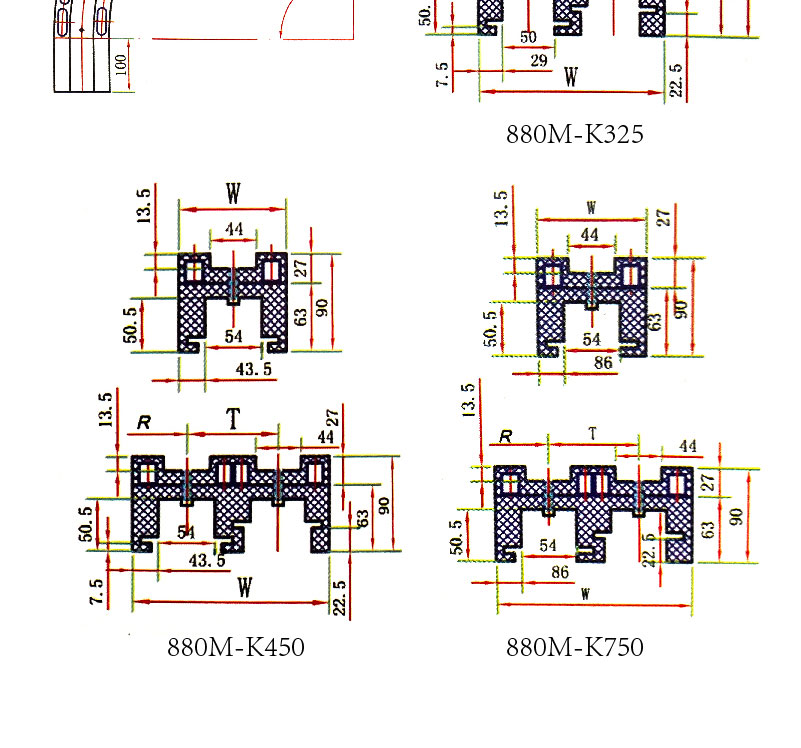

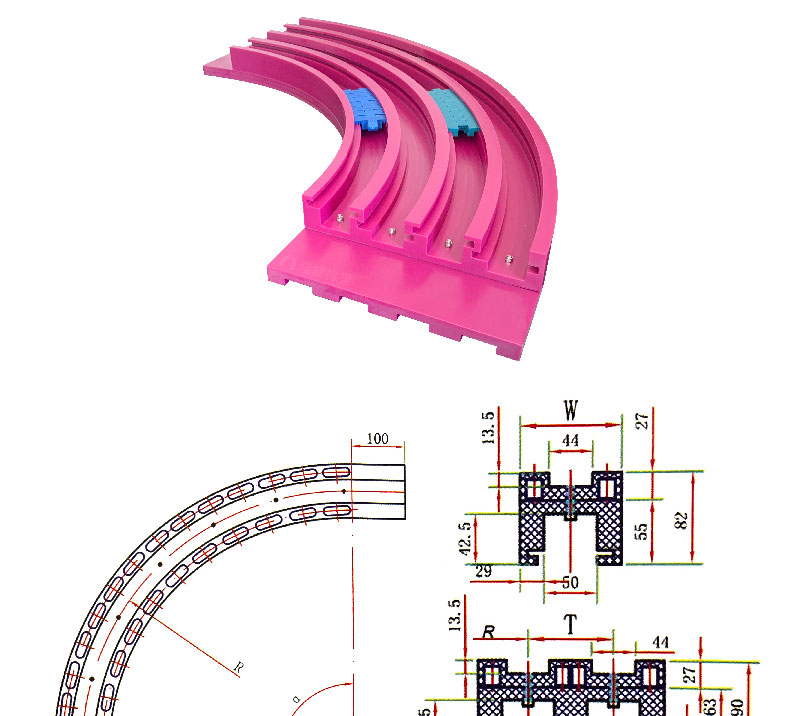

880M Magnetic corner tracks

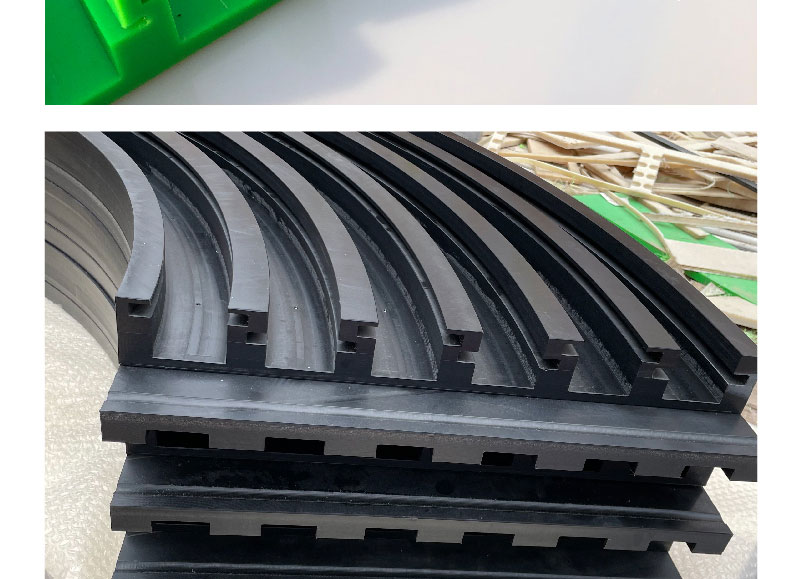

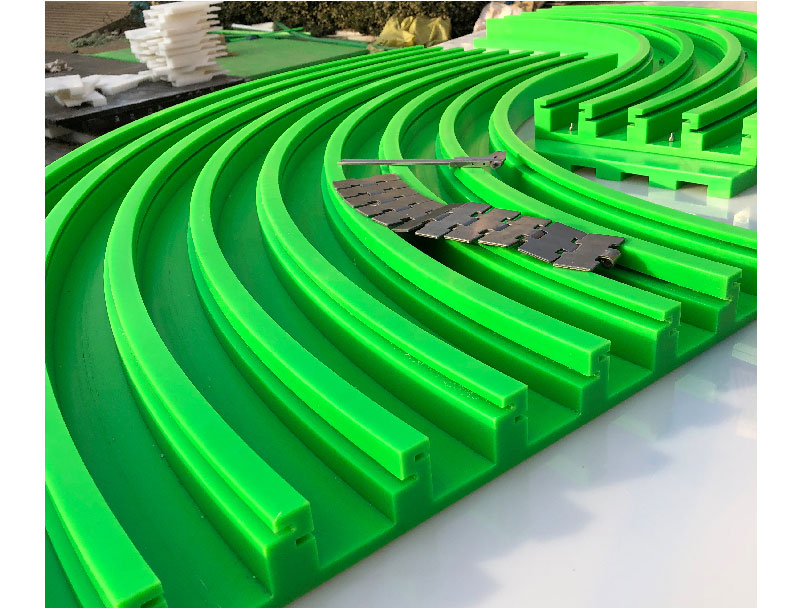

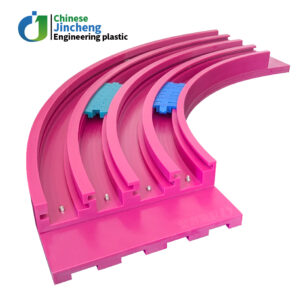

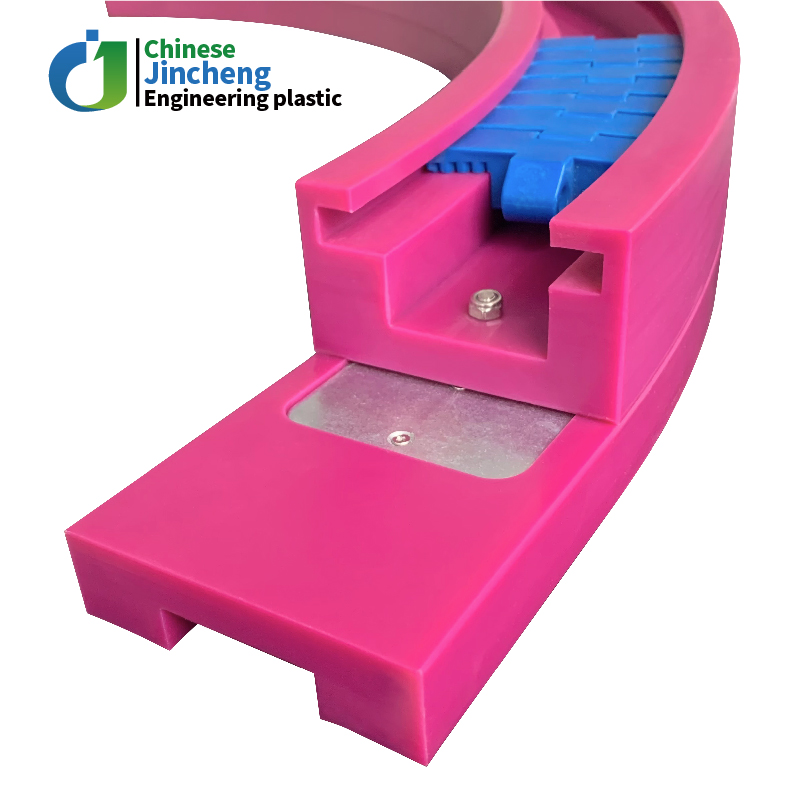

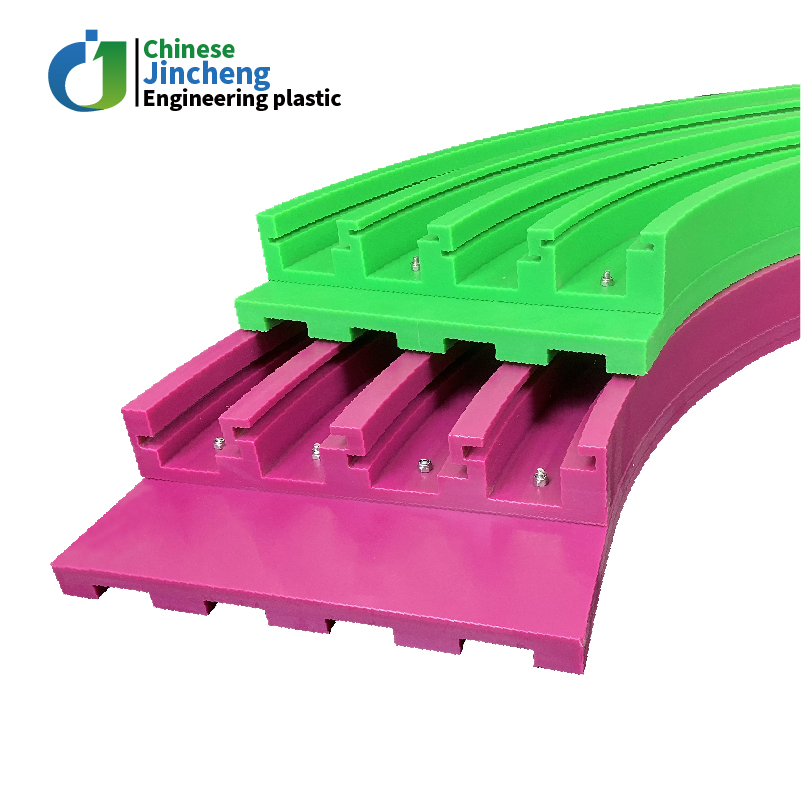

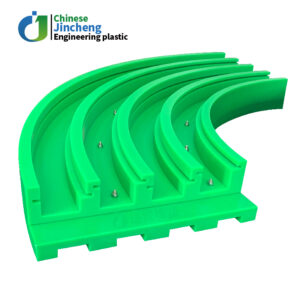

Product picture
