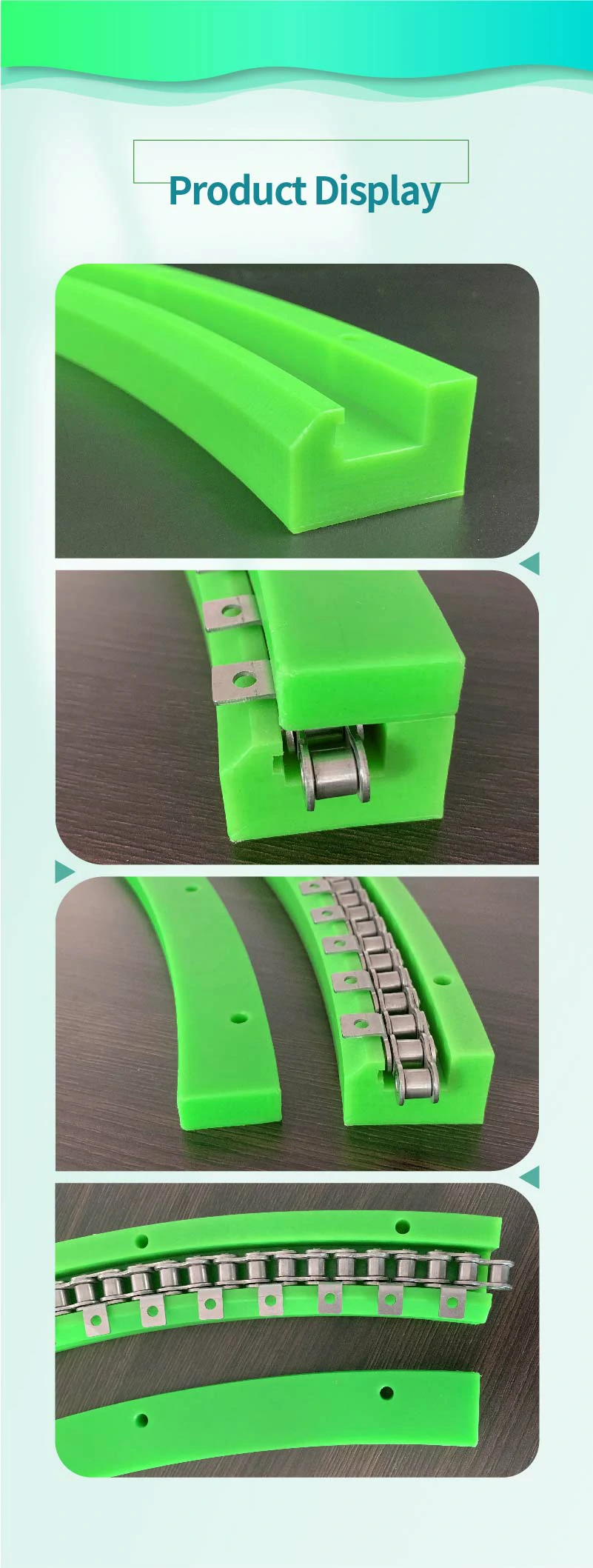

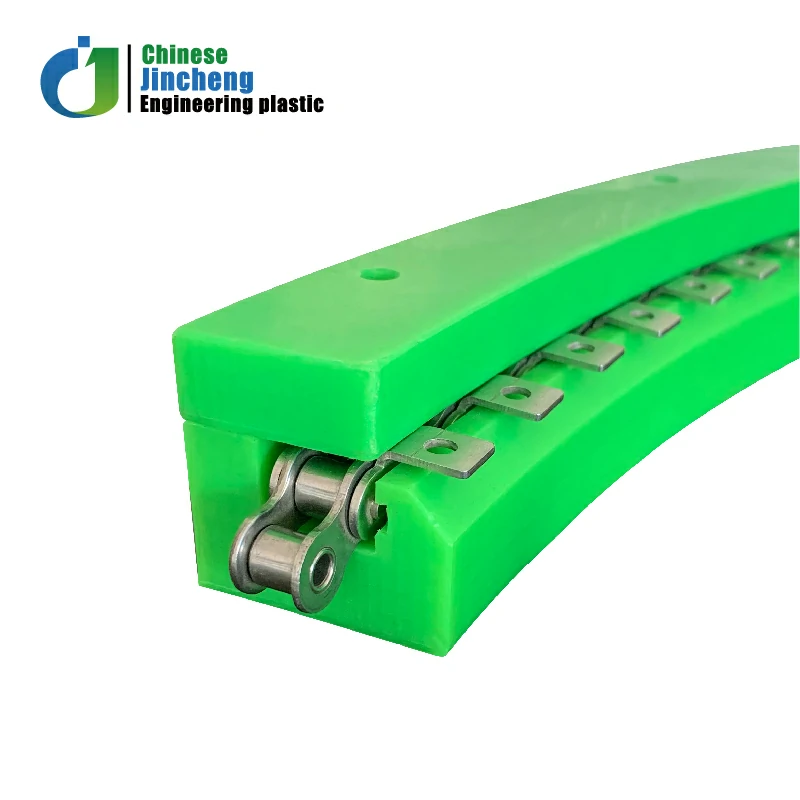

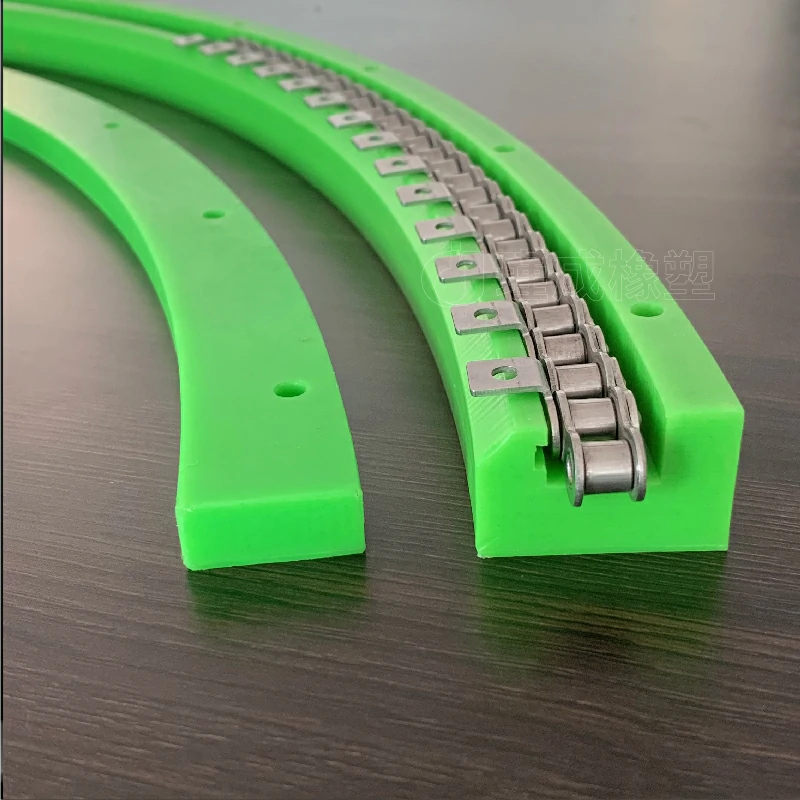

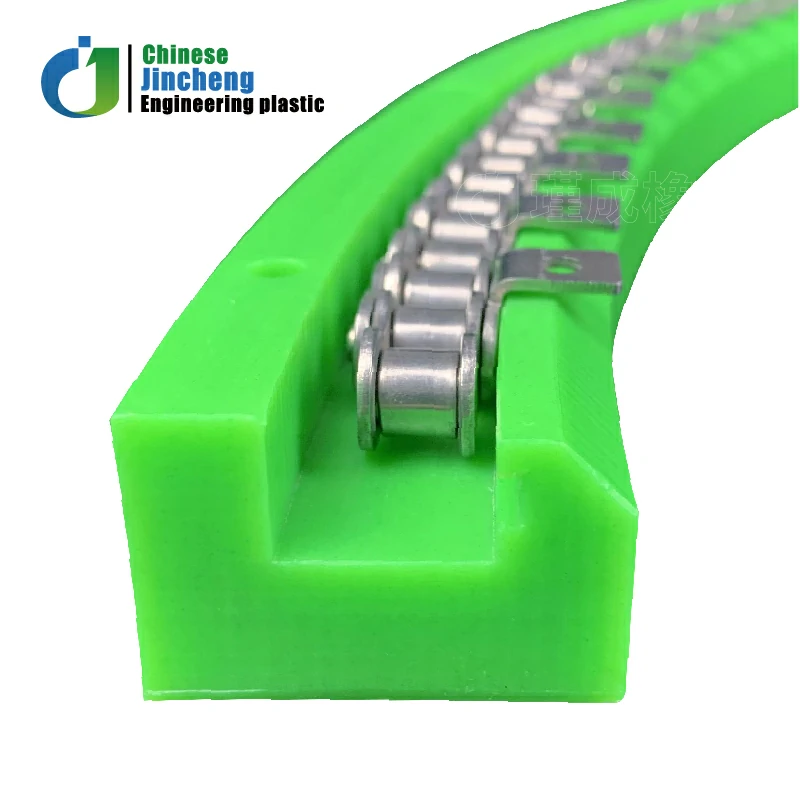

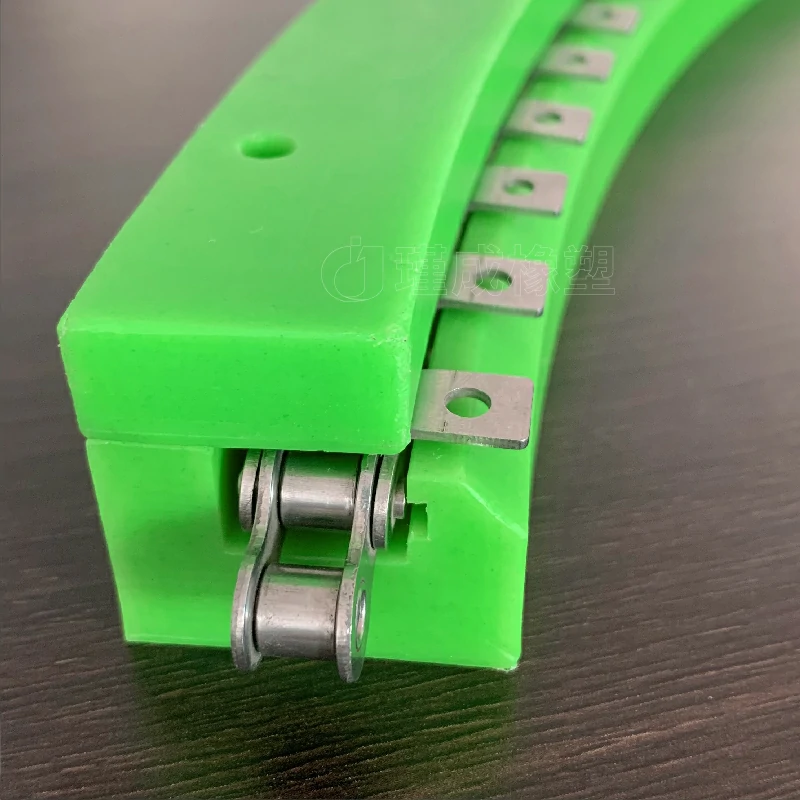

CNC Machined UPE Guide Rail – High-Precision UHMWPE Conveyor Guide Solution

Product Overview

The CNC machined UPE guide rail is a high-performance conveyor component designed for precise chain and product guidance in industrial systems. Made from premium UHMWPE (Ultra-High Molecular Weight Polyethylene), this guide rail combines exceptional wear resistance with low friction and high impact strength.

Manufactured using advanced CNC machining technology, the guide rail ensures tight tolerances, consistent quality, and customizable designs to meet various application requirements.

Key Features & Advantages

1. High Precision CNC Machining

Produced with advanced CNC milling and cutting equipment, the guide rail offers high dimensional accuracy and smooth surface finishing, ensuring perfect fit and stable operation in conveyor systems.

2. Exceptional Wear Resistance

UHMWPE material provides outstanding abrasion resistance, significantly reducing wear and extending the service life of both the guide rail and conveyor chains.

3. Low Friction & Self-Lubricating

With a very low coefficient of friction, the guide rail enables smooth sliding performance without additional lubrication, improving efficiency and reducing maintenance costs.

4. High Impact Strength & Durability

UHMWPE offers excellent toughness and impact resistance, maintaining performance even under heavy loads or low-temperature conditions.

5. Chemical & Corrosion Resistance

The material resists chemicals, moisture, and corrosion, making it suitable for harsh environments such as food processing, chemical plants, and outdoor applications.

6. Wide Temperature Range

This guide rail performs reliably across a wide temperature range, maintaining stability from extremely low temperatures up to standard industrial operating conditions.

Applications

CNC machined UPE guide rails are widely used in:

• Conveyor and material handling systems
• Food processing and packaging machinery
• Mining, cement, and heavy industries
• Chemical and energy sectors
• Automated production lines and logistics systems

They play a critical role in reducing friction, guiding movement, and improving operational efficiency across industries.

Customization Options

These guide rails can be fully customized based on customer requirements:

• Length: 100mm – 4000mm or custom sizes
• Material: UHMWPE (UPE), with optional engineering plastics
• Color: Green, black, white, or custom
• Shape: Straight, curved, or complex CNC-machined profiles
• Tolerance: High-precision machining based on drawings

Why Choose CNC Machined UPE Guide Rails?

• High precision and consistent quality
• Excellent wear resistance and long service life
• Reduced friction and energy consumption
• Minimal maintenance requirements
• Fully customizable for different applications

Conclusion

The CNC machined UPE (UHMWPE) guide rail is an ideal solution for industries requiring precision, durability, and efficiency. With advanced machining technology and superior material performance, it ensures smooth operation, reduced wear, and long-term reliability in demanding conveyor systems.
