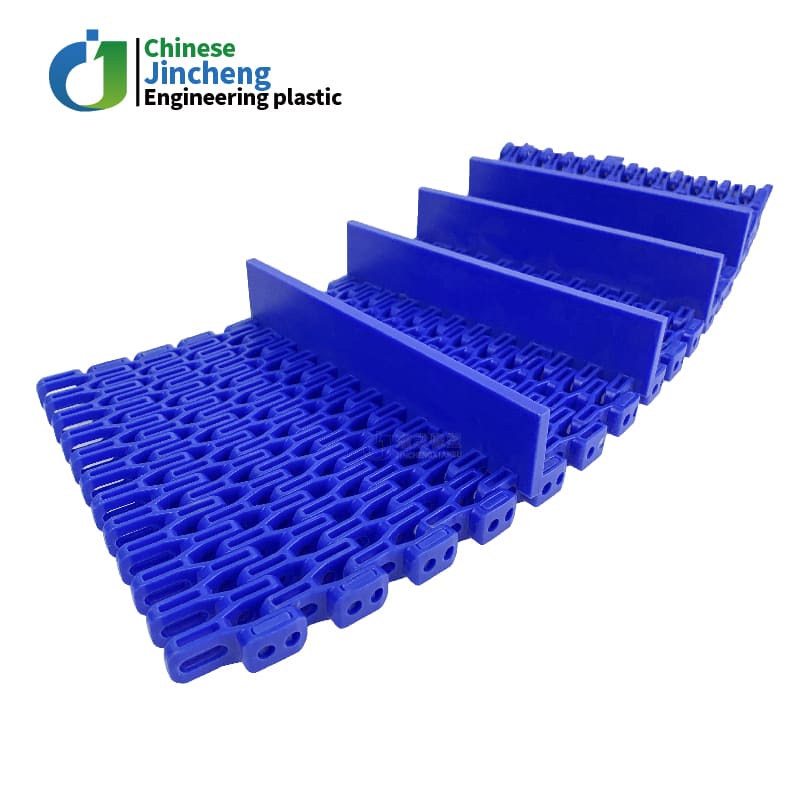

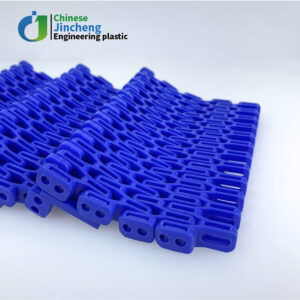

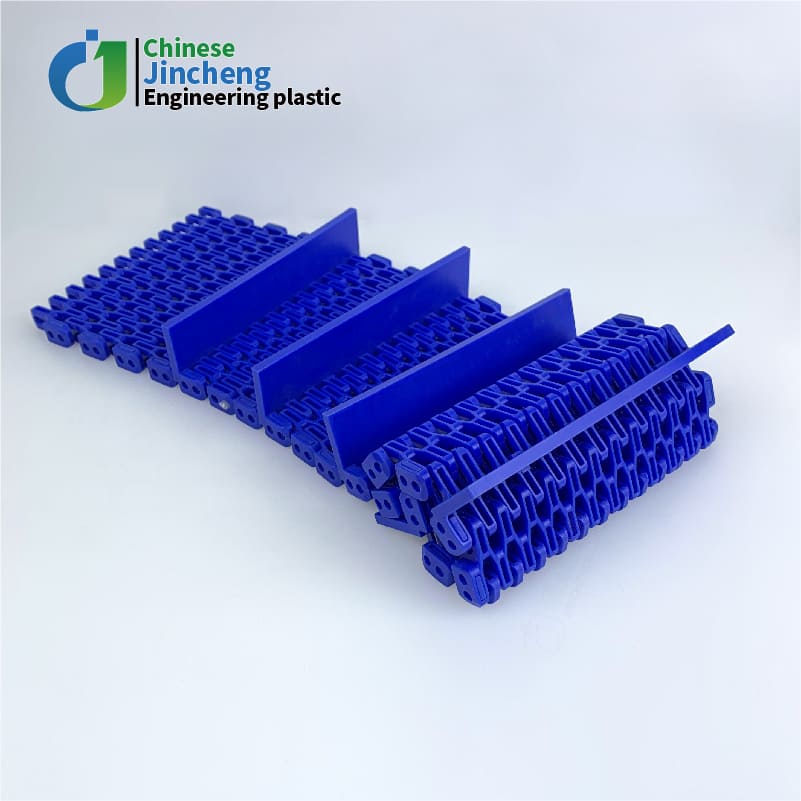

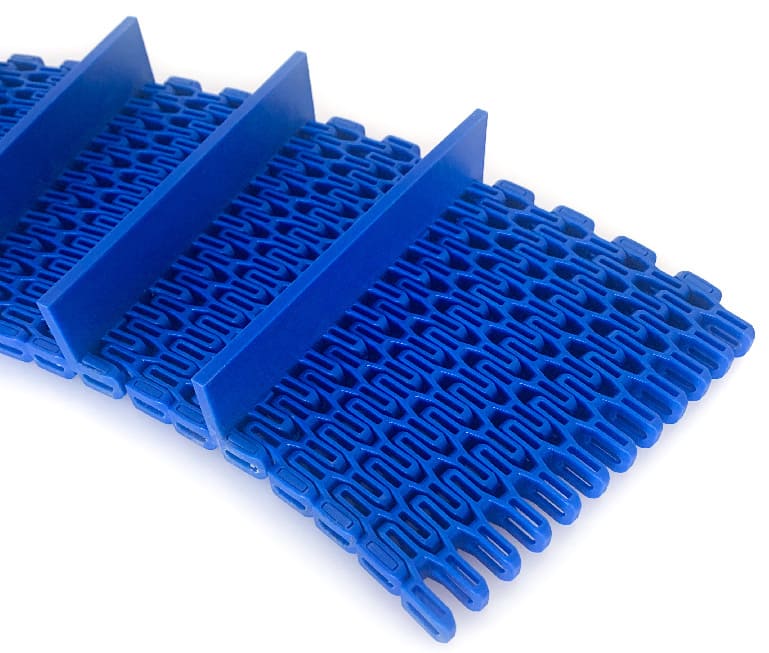

 7100 series mesh belt |
Pre-Purchase Notice
| Product prices do not include shipping costs. Please consult customer service for specific shipping fees. Shipping costs vary based on quantity, delivery address,and shipping timeframe. We will select the most cost-effective option according to your specific circumstances to minimize your shopping costs. |
Product information

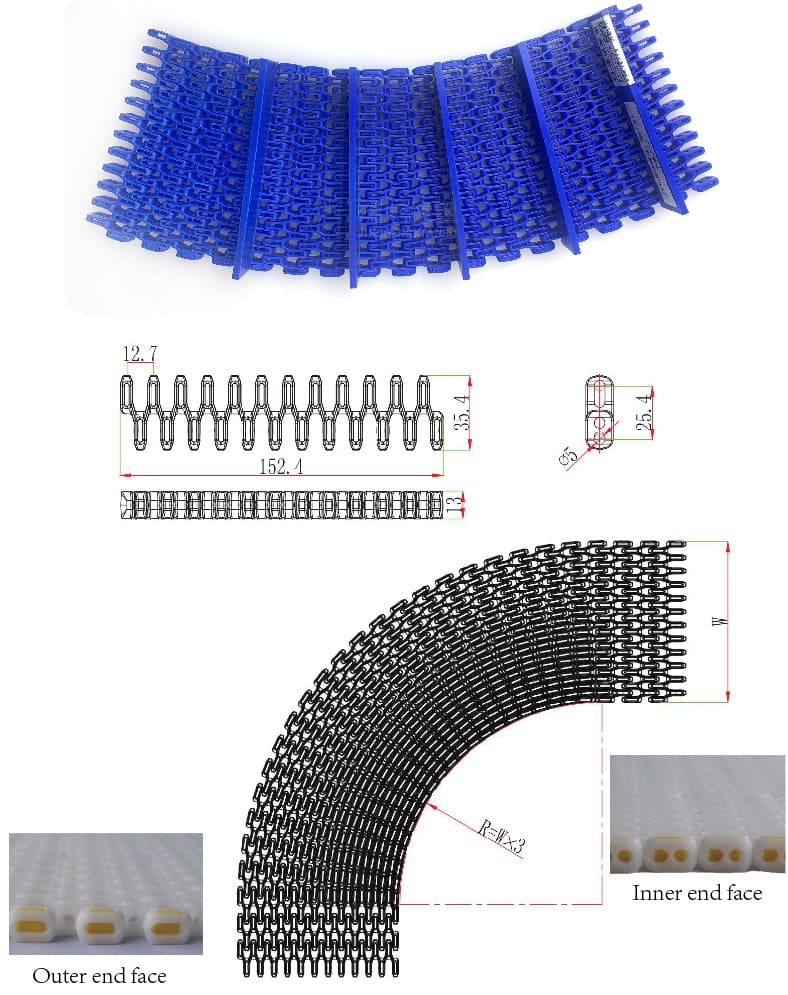

| 7100 series: Flat grid mesh belt | Pitch P=25.4mm | ||
| Mesh belt material: POM | Mesh belt color: blue, white | The turning radius R is three times the width W of the mesh belt. | |
| Buckle material: POM | Buckle color: yellow | ||
| Mesh belt load: 15000N/M | Opening rate: 55% | Net belt weight: 6.8KG/MP | |
| Standard width: 76.2 * N | Non standard width: 76.2 * N+12.7n N/n is an integer multiple | ||
| Mainly suitable for horizontal turning and low tension spiral conveying of various items such as meat, poultry, fruits, vegetables, bread, and beverages. The turning mesh belt has a pitch of 25.4mm and a thickness of 13mm. The turning radius R is three times the width W of the mesh belt. The 7100 flat grid mesh belt has a long waist hole at one end of the module, which results in poor control of the pin shaft by the module. Therefore, when the mesh belt turns, the tension on the outer side is very high, and the tension on the inner side is zero. The standard diameter 5mm pin shaft material is PP, which can be replaced with a metal pin shaft to increase the tension of the mesh belt. |
