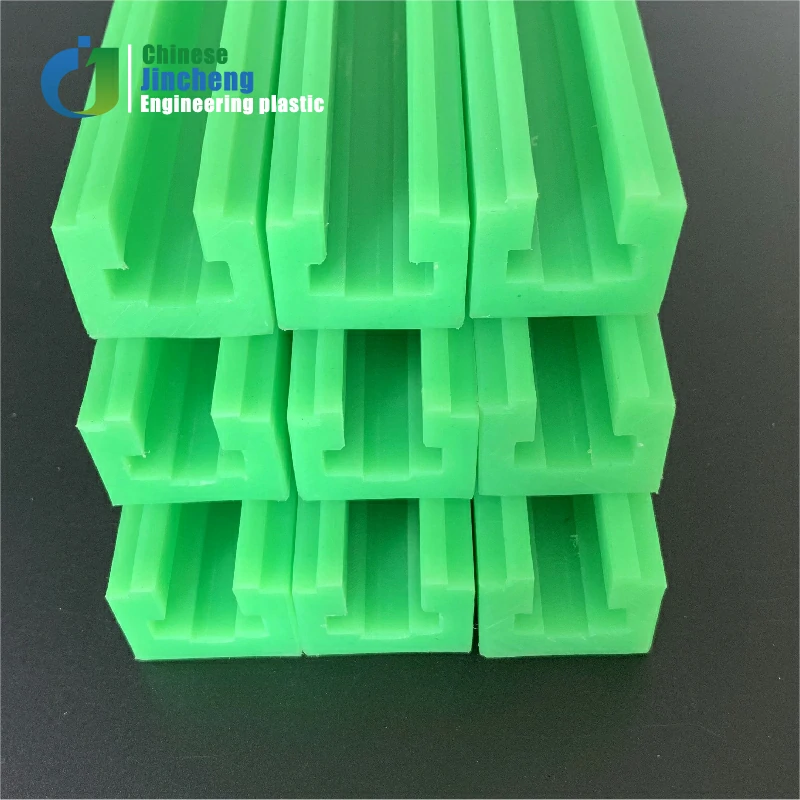

CKG-Type Plastic Chain Guide Rail (UHMWPE) – Heavy-Duty Conveyor Chain Guiding Solution

Product Overview

The CKG-Type plastic chain guide rail is a premium conveyor component designed to provide precise guidance and support for roller chains. Manufactured from ultra-high molecular weight polyethylene (UHMWPE), this guide rail delivers excellent wear resistance, low friction, and long-lasting performance in demanding industrial environments.

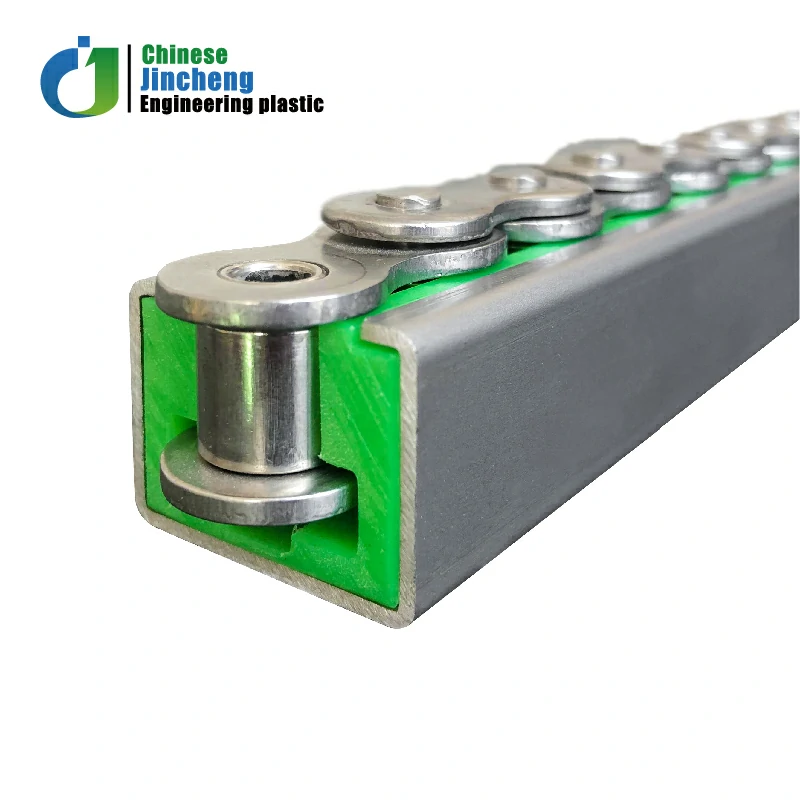

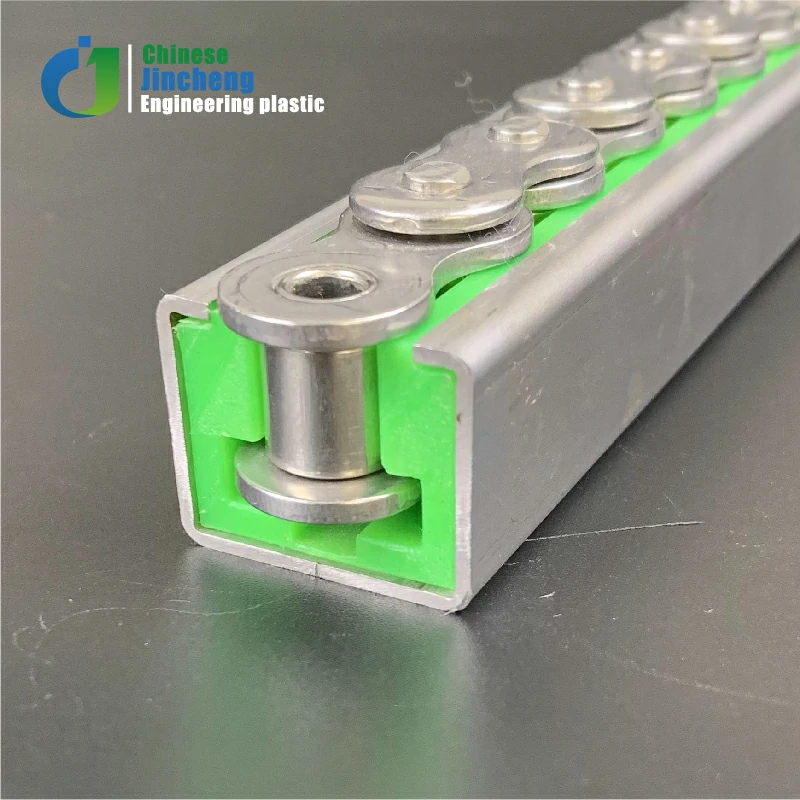

With its reinforced structure and stable mounting design, the CKG-type guide rail is widely used in conveyor systems to ensure accurate chain movement, reduce vibration, and improve overall system efficiency.

Key Features & Advantages

1. Superior Wear Resistance

UHMWPE material offers extremely high abrasion resistance, outperforming many traditional materials and significantly extending the lifespan of both the chain and guide rail.

2. Low Friction & Self-Lubrication

The guide rail features a naturally low coefficient of friction and self-lubricating properties, allowing smooth chain movement without the need for additional lubrication.

3. Noise Reduction & Smooth Operation

Compared with metal guide rails, UHMWPE effectively reduces operational noise and vibration, creating a quieter and more stable working environment.

4. Strong Structural Stability (CKG Design)

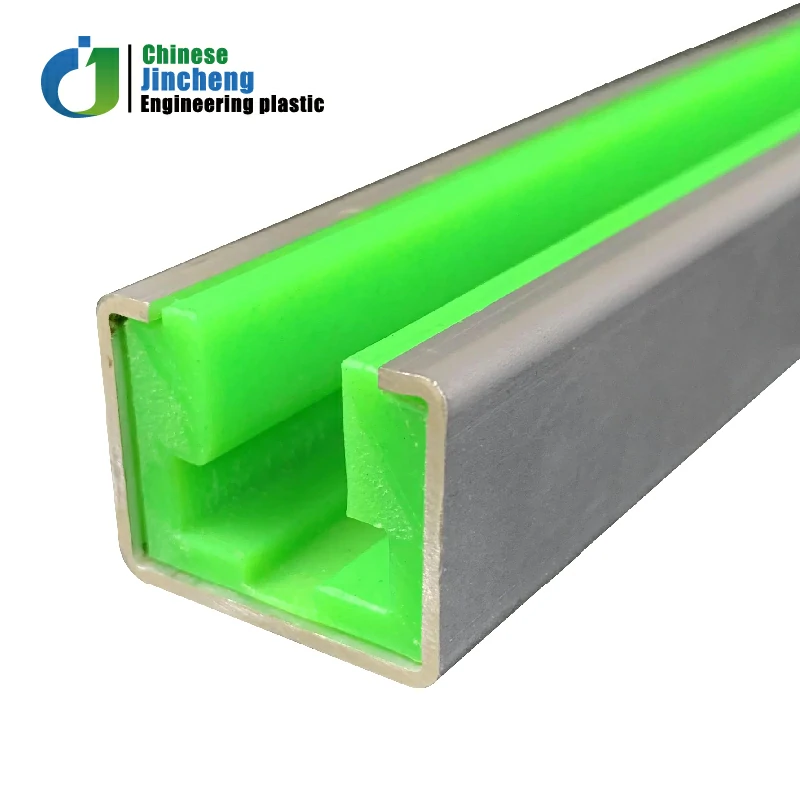

The CKG-type structure typically integrates a steel profile with a UHMWPE wear strip, ensuring strong support, precise alignment, and reliable performance under heavy loads.

5. Excellent Impact & Chemical Resistance

UHMWPE provides high impact strength, chemical resistance, and moisture resistance, making it suitable for harsh conditions such as food processing, packaging, and chemical industries.

Applications

The CKG-Type chain guide rail is widely used across multiple industries, including:

• Conveyor and material handling systems
• Food processing and packaging equipment
• Automated production and assembly lines
• Bottling and logistics systems
• Chemical and heavy-duty industrial environments

It ensures accurate chain positioning, reduces wear, and maintains consistent conveying performance.

Customization Options

To meet different operational requirements, the CKG-type guide rail can be customized with:

• Materials: UHMWPE, Nylon, PTFE
• Colors: Green, black, white, yellow, etc.
• Lengths: Standard or custom-cut sizes

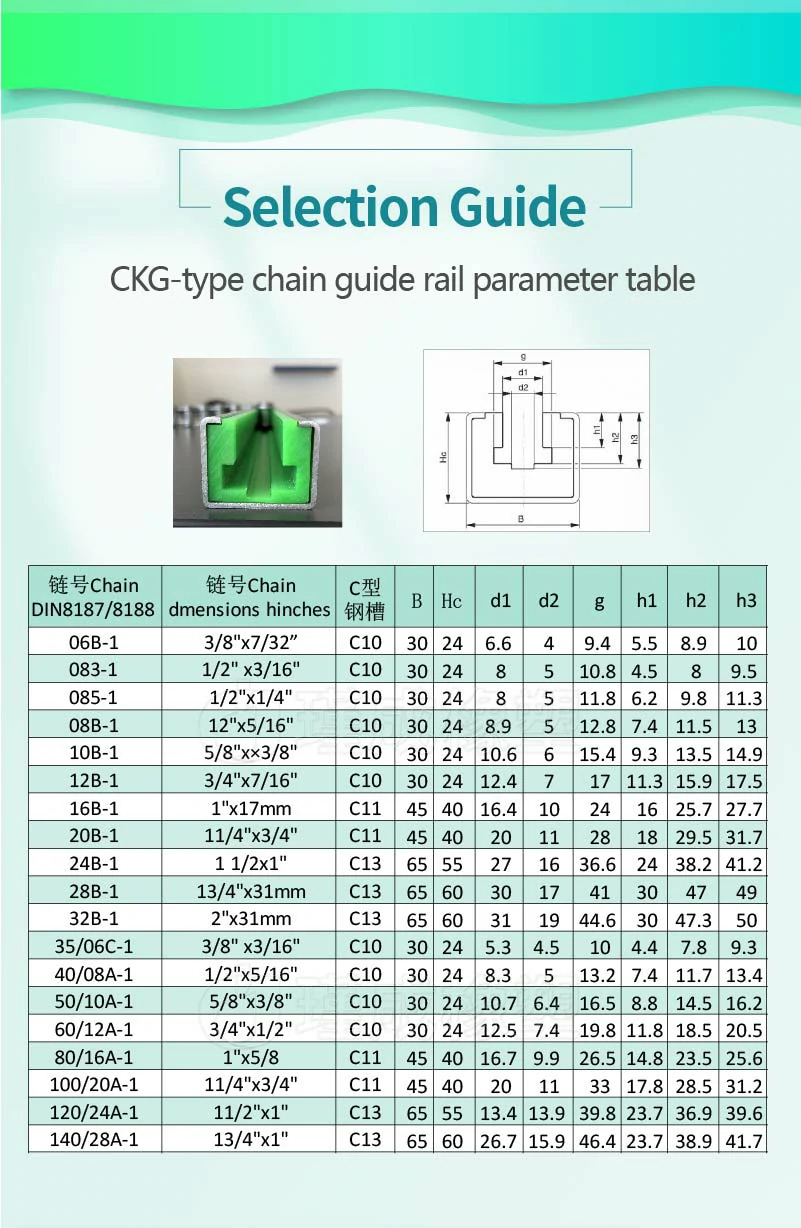

• Profiles: Compatible with various chain sizes and conveyor systems

Why Choose CKG-Type UHMWPE Chain Guide Rail?

• Extends conveyor chain service life
• Reduces maintenance and lubrication costs
• Provides stable and precise chain guidance
• Enhances efficiency of conveyor systems
• Suitable for both light-duty and heavy-duty applications

Conclusion

The CKG-Type plastic chain guide rail (UHMWPE) is an essential component for modern conveyor systems. Combining durability, low friction, and structural strength, it delivers reliable performance while minimizing wear and operational costs.

Whether used in industrial automation or hygienic environments, this guide rail ensures smooth, efficient, and long-term operation.
