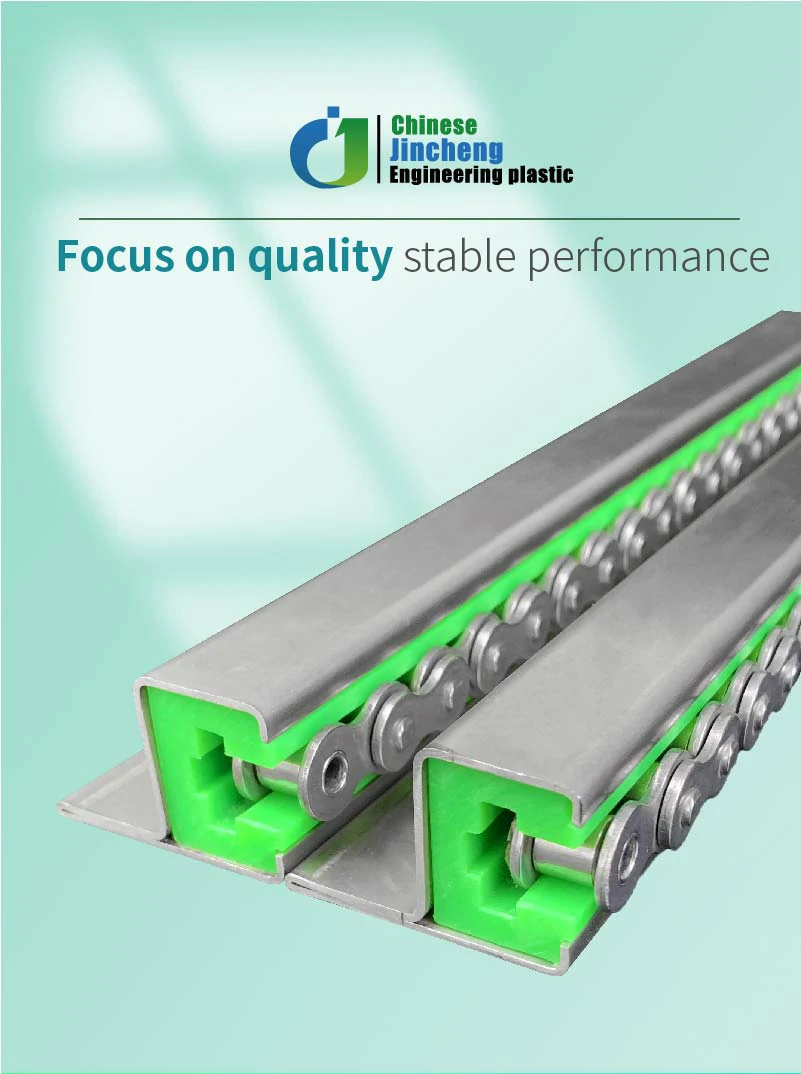

CKG-H Type Chain Guide Rail – Heavy-Duty UHMWPE Conveyor Guide Solution

Product Overview

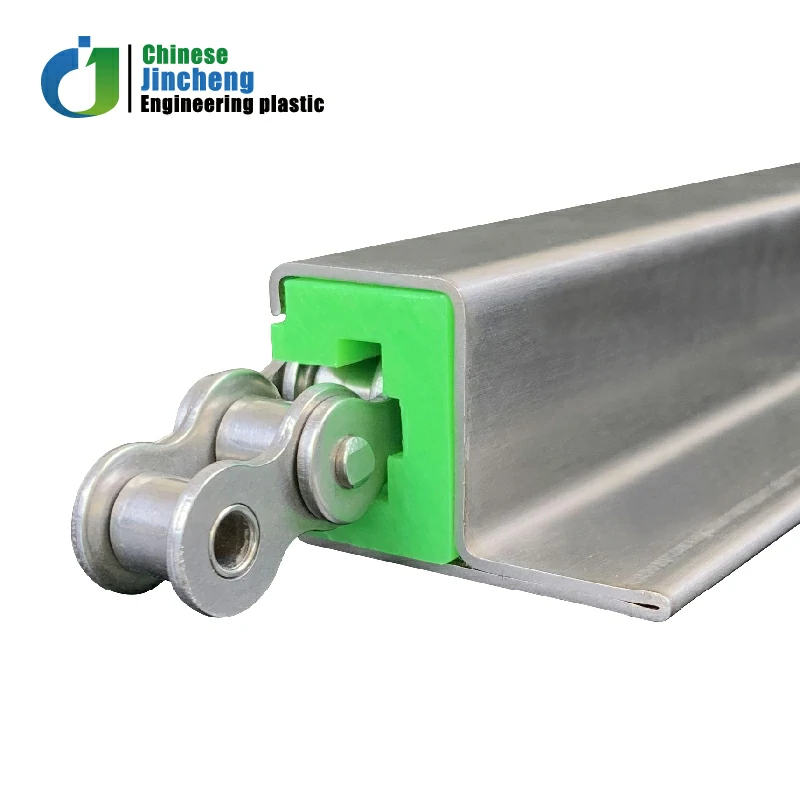

The CKG-H Type chain guide rail is a high-strength conveyor component designed to provide precise chain guidance and long-lasting support in industrial conveying systems. Combining a reinforced steel channel with a UHMWPE wear strip, this guide rail delivers exceptional durability, stability, and performance under heavy-load conditions.

Engineered for demanding environments, the CKG-H type guide rail ensures smooth chain movement, reduces friction, and improves the overall efficiency of conveyor operations.

Key Features & Benefits

1. Ultra-High Wear Resistance

Made with UHMWPE (Ultra-High Molecular Weight Polyethylene), the guide rail offers outstanding abrasion resistance, significantly extending the service life of conveyor chains and components.

2. Low Friction & Self-Lubricating

The UHMWPE surface provides a very low coefficient of friction and self-lubricating properties, allowing chains to run smoothly without additional lubrication.

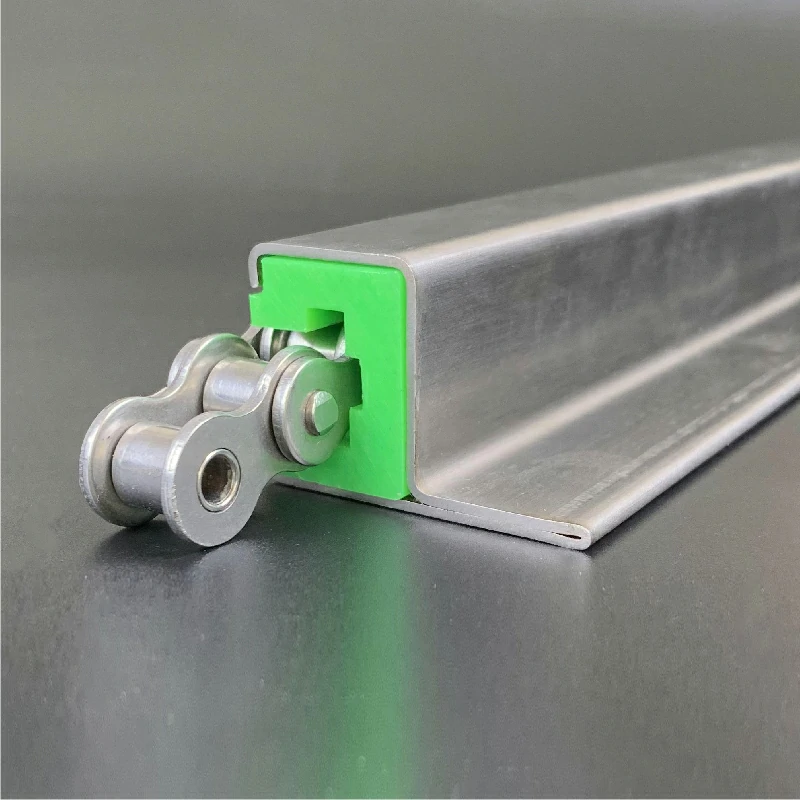

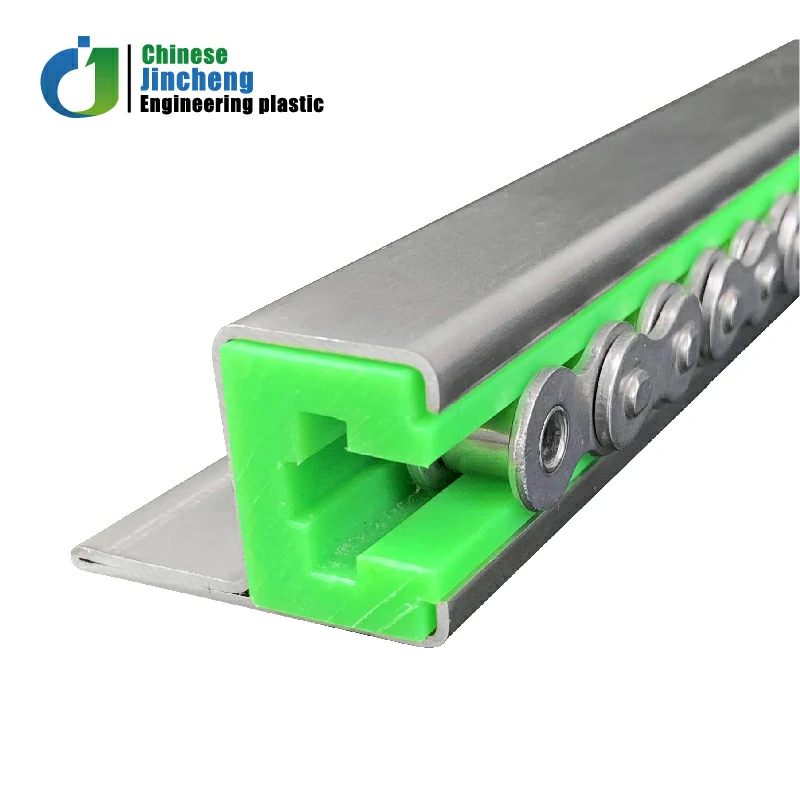

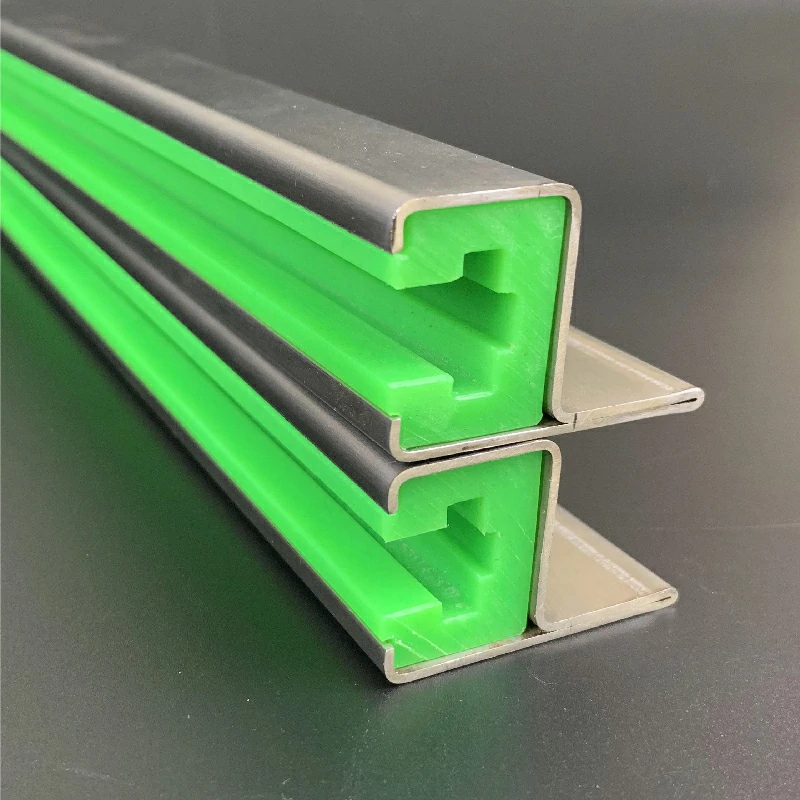

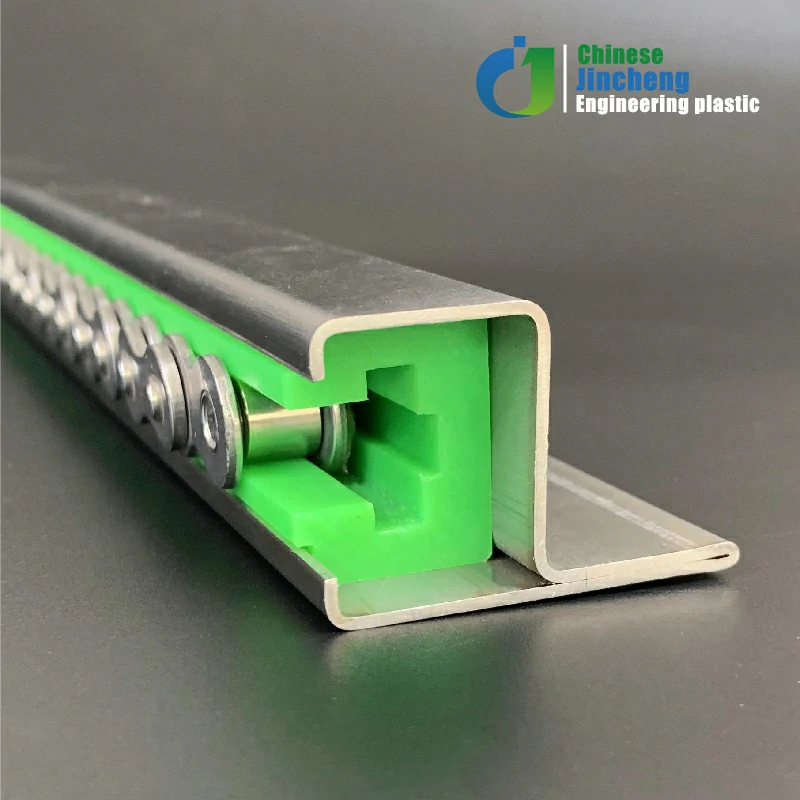

3. Reinforced CKG-H Structure

The CKG-H type features a heavy-duty steel profile combined with a plastic wear strip, ensuring excellent load-bearing capacity, precise alignment, and long-term structural stability.

4. Noise & Vibration Reduction

Compared with traditional metal guides, this plastic guide rail effectively reduces operational noise and vibration, creating a quieter and more efficient working environment.

5. Excellent Chemical & Impact Resistance

UHMWPE offers high impact strength, corrosion resistance, and moisture resistance, making it suitable for harsh industrial and chemical environments.

Applications

The CKG-H Type chain guide rail is widely used in:

• Conveyor and material handling systems
• Food and beverage processing lines
• Packaging and bottling machinery
• Automated production lines
• Logistics and warehouse systems

It ensures accurate chain alignment, reduces wear, and enhances system reliability across various industries.

Customization Options

To meet different operational requirements, the CKG-H guide rail can be customized in:

• Material: UHMWPE, Nylon, or other engineering plastics
• Steel profile: Galvanized steel or stainless steel
• Length: Standard or custom sizes
• Color: Green, black, white, and more

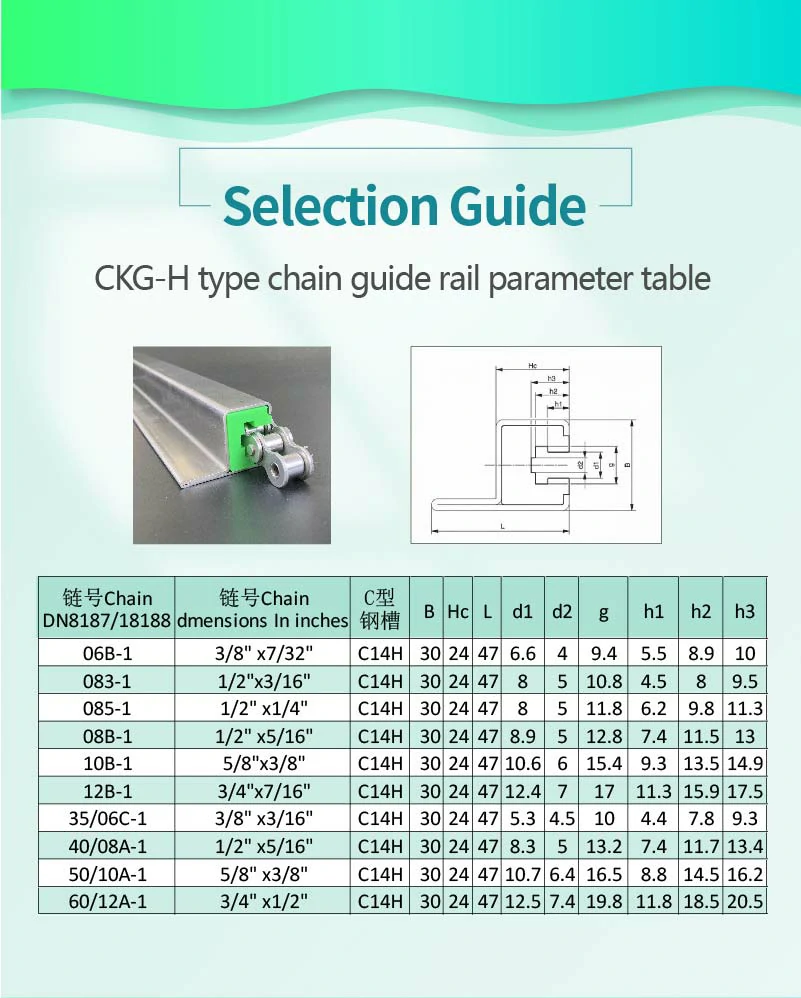

• Profiles: Compatible with various chain sizes and conveyor systems

Why Choose CKG-H Type Chain Guide Rail?

• Extends conveyor chain lifespan
• Reduces maintenance and lubrication costs
• Ensures stable and precise chain guidance
• Improves conveyor efficiency and performance
• Suitable for heavy-duty and high-load applications

Conclusion

The CKG-H Type chain guide rail is an essential solution for modern conveyor systems requiring durability, precision, and reliability. With its combination of UHMWPE wear resistance and reinforced structural design, it delivers superior performance while minimizing downtime and operational costs.
