Product information

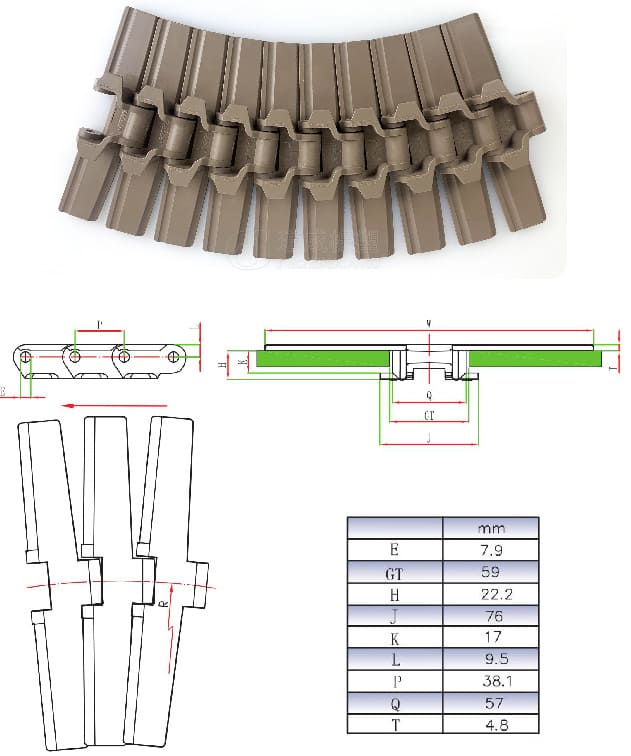

| Chain model | width(mm) | weight(kg/m) | Reverse bending radius | Turning radius |
| 882TAB-K500 | 127 | 1.9 | 75 | 610 |
| 882TAB-K600 | 152.4 | 2.1 | 75 | 610 |
| 882TAB-K750 | 190.5 | 2.38 | 75 | 610 |
| 882TAB-K1000 | 254 | 2.69 | 75 | 610 |
| 882TAB-K1200 | 304.8 | 2.94 | 75 | 610 |
| Mainly suitable for application in various foods, beverages, PET bottles, aluminum cans, and various types of transportation.
Material is POM, color coffee, operating temperature -30 ° C~+90 ° C. The material of the pin shaft is cold-rolled austenitic stainless steel. Maximum speed: 50 meters/minute lubricant 30 meters/minute desiccant. The working load (25 ° C) is 3830N, and the maximum conveying length is 15 meters. |
