variable – diameter wheelOverview

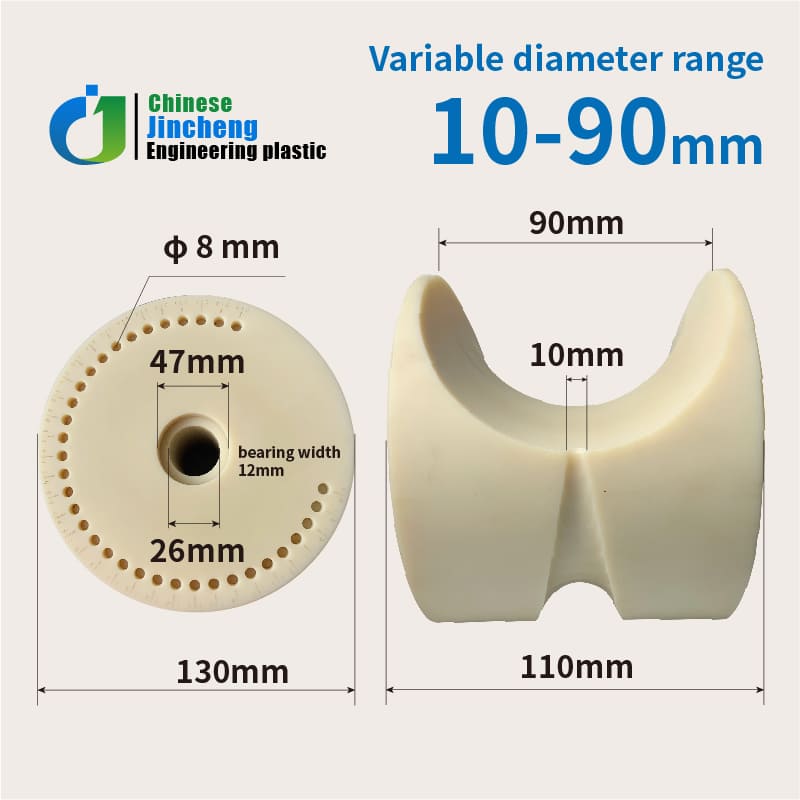

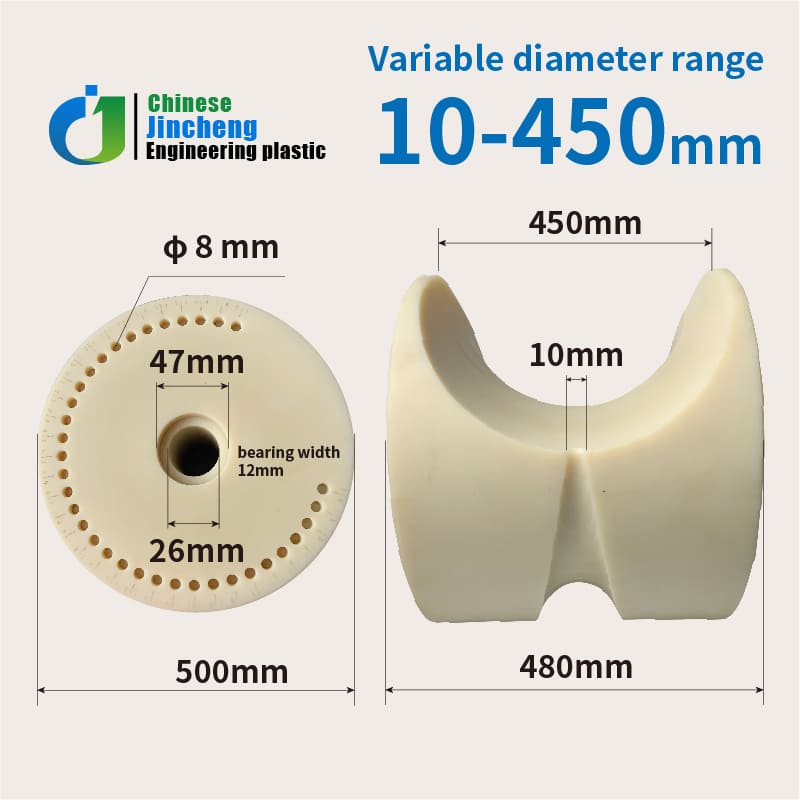

The nylon variable – diameter wheel is a mechanical part made of nylon material. It achieves different transmission ratios and speed adjustments by changing the radius of the wheel. In equipment such as laser cutting machines and laser tube – cutting machines, it often serves as a material – dragging support mechanism, playing roles such as supporting, transmitting, and adjusting speed.
Characteristics
- Good Wear Resistance: Nylon material itself has high hardness and wear – resistance. It can withstand a certain degree of friction and wear, which can extend the service life of the variable – diameter wheel and reduce the replacement frequency.
- Self – Lubrication: Nylon has self – lubricating properties with a low coefficient of friction. It can reduce the friction between the wheel and other components, making the transmission smoother, reducing energy loss, and also helping to reduce noise.
- Lightweight: Compared with metal materials, nylon material is relatively lightweight. It can reduce the overall weight of the equipment, which has an advantage in some equipment with weight requirements. At the same time, it is also convenient for installation and maintenance.
- Corrosion Resistance: Nylon has good corrosion resistance and can resist the erosion of some chemical substances, so it can be used in relatively harsh working environments.
- Good Machinability: It is easy to process and form. Variable – diameter wheels of various shapes and sizes can be manufactured through methods such as injection molding and casting. It can also be customized according to specific needs to meet the special requirements of different equipment.
Application Fields
- Laser Cutting Equipment: In laser cutting machines, laser tube – cutting machines, etc., the nylon variable – diameter wheel, as a material – dragging support mechanism, can adjust the radius of the variable – diameter wheel according to the diameter of the tube and the cutting requirements, ensuring the stability of the tube during the cutting process and improving the cutting accuracy.
- Textile Machinery: It is used in the transmission system of textile machinery. By changing the radius of the variable – diameter wheel, the conveying speed and tension of the yarn can be adjusted to ensure the uniformity and quality of the yarn.
- Packaging Machinery: In packaging machinery, the nylon variable – diameter wheel can be used to adjust the conveying speed and tension of the packaging material, making the packaging process more stable and efficient.
I、Introduction to the Specific Installation Method of Nylon Variable – diameter Wheels
The installation method of nylon variable – diameter wheels may vary slightly depending on the specific equipment and usage scenarios. The following are the general installation steps:
- Preparation Work
- Confirm that the specifications and models of the nylon variable – diameter wheels to be installed match the equipment. Check whether the variable – diameter wheels are damaged, deformed, etc. Replace them in time if there are any problems.
- Prepare the tools required for installation, such as wrenches, screwdrivers, vernier calipers, etc.
- Clean the installation site to ensure that the installation surface is clean, free of oil, dust, and debris, so as not to affect the installation accuracy and stability.
- Positioning and Inspection of the Installation Shaft
- Locate the installation position of the variable – diameter wheel on the equipment. Usually, there will be a corresponding shaft or shaft sleeve. Use a vernier caliper to measure the diameter of the installation shaft to ensure that it matches the inner diameter of the nylon variable – diameter wheel. Generally, the inner diameter of the nylon variable – diameter wheel is slightly larger than the diameter of the installation shaft to ensure that the variable – diameter wheel can rotate freely on the shaft, but the clearance should not be too large, otherwise it will affect the transmission accuracy.
- Check whether the surface of the installation shaft is smooth, and whether there is wear, scratches, or deformation. If there are problems, the shaft needs to be repaired or replaced to ensure that the variable – diameter wheel can rotate smoothly after installation.
- Installation of the Variable – diameter Wheel
- Carefully put the nylon variable – diameter wheel onto the installation shaft, and ensure that the center of the variable – diameter wheel coincides with the center of the installation shaft. If the variable – diameter wheel has a keyway or other positioning devices, ensure that they are correctly matched with the corresponding parts on the shaft.
- For some variable – diameter wheels that need to be fixed by nuts or bolts, after putting on the variable – diameter wheel, screw the nuts or bolts into the corresponding threaded holes, but do not tighten them.
- Adjustment of the Variable – diameter Wheel
- Use appropriate tools, such as wrenches, to gently rotate the variable – diameter wheel to check whether its rotation is flexible and whether there is any jamming or abnormal resistance. If the variable – diameter wheel does not rotate smoothly, check whether the installation is correct, whether there is component interference or over – tight installation.
- According to the requirements of the equipment, adjust the position of the variable – diameter wheel so that it reaches the correct mating position with other related components (such as transmission belts, gears, etc.). For example, ensure that the tension between the variable – diameter wheel and the transmission belt is appropriate, neither too loose to cause slipping nor too tight to subject the transmission components to excessive pressure.
- Fixing the Variable – diameter Wheel
- After confirming that the installation position of the variable – diameter wheel is correct and the rotation is flexible, use tools to tighten the nuts or bolts to fix the variable – diameter wheel on the installation shaft. The tightening force should be appropriate, ensuring that the variable – diameter wheel will not loosen during operation, and at the same time, not over – tightening to damage the nylon variable – diameter wheel or the installation shaft.
- Inspection and Testing
- Check the installation of the variable – diameter wheel again to ensure that all components are firmly installed without looseness or abnormalities.
- Start the equipment and let the variable – diameter wheel run for a period of time under no – load conditions. Observe its rotation and check for any abnormal noise, vibration, or heating. If there are any problems, stop the machine in time for inspection and troubleshooting.
- After the no – load operation is normal, a load test can be carried out. According to the actual working conditions of the equipment, apply an appropriate load and observe the operation of the variable – diameter wheel again to ensure that it can work normally and meet the performance requirements of the equipment.
During the installation process, it is necessary to strictly follow the equipment manual and relevant operating procedures. If you have any questions about the installation process, it is recommended to consult the equipment manufacturer or professional technicians.
II、What Details Should Be Noted When Installing Nylon Variable – diameter Wheels?
When installing nylon variable – diameter wheels, in addition to following the basic installation steps, there are some details that need to be paid special attention to ensure its installation quality and performance:
- Avoid Damaging the Wheel Body: Nylon material is relatively brittle. During handling and installation, handle it with care to avoid dropping, collision, or using tools to pry it forcefully. Otherwise, it may cause the wheel body to crack, scratch, or deform, affecting its accuracy and service life.
- Pay Attention to the Installation Sequence: If the variable – diameter wheel is installed in a relatively complex transmission system, install it in the order required by the design. For example, first install the relevant basic components such as shafts and bearings, ensure that they are installed in place and the accuracy meets the requirements, and then install the nylon variable – diameter wheel to avoid affecting the installed variable – diameter wheel due to subsequent installation operations.
- Control the Installation Force: When tightening the fixing nuts or bolts, use appropriate tools and operate according to the specified torque. Excessive torque may cause cracks or deformation of the nylon variable – diameter wheel, while too little torque may cause the variable – diameter wheel to loosen during operation, leading to safety accidents and equipment failures. If there is no clear torque requirement, you can refer to the empirical data of similar equipment or components and conduct appropriate inspections and adjustments after installation.
- Ensure Concentricity and Perpendicularity: When installing the nylon variable – diameter wheel, it is necessary to ensure its concentricity with the installation shaft and perpendicularity to related transmission components. Excessive deviation in concentricity will cause the variable – diameter wheel to be eccentric during rotation, resulting in uneven stress, accelerating the wear of the wheel body and abnormal wear of the transmission belt. At the same time, it may also cause vibration and noise. Deviation in perpendicularity will affect the transmission efficiency and stability, and may even cause the transmission belt to fall off. During the installation process, professional measuring tools such as dial indicators can be used for detection and adjustment to ensure the installation accuracy.
- Consider the Thermal Expansion Factor: Nylon material has a relatively large coefficient of thermal expansion. When installing the variable – diameter wheel, consider the impact of changes in the working environment temperature on its size. If it is installed too tightly, when the temperature rises, the variable – diameter wheel may not be able to rotate normally due to expansion or exert excessive pressure on the shaft and other components. Conversely, if it is installed too loosely, when the temperature drops, the clearance may increase, affecting the transmission accuracy. Therefore, during installation, an appropriate clearance should be reserved according to the actual working temperature range to ensure that the variable – diameter wheel can work normally under different working conditions.
- Cleaning After Installation: After the installation is completed, clean the surface of the variable – diameter wheel and the surrounding debris, scraps, and oil stains that may remain during the installation process in a timely manner to keep the equipment clean. Debris and oil stains may affect the heat – dissipation performance of the variable – diameter wheel. At the same time, they may also adsorb dust and other particles, accelerating the wear of the wheel body and transmission components.
