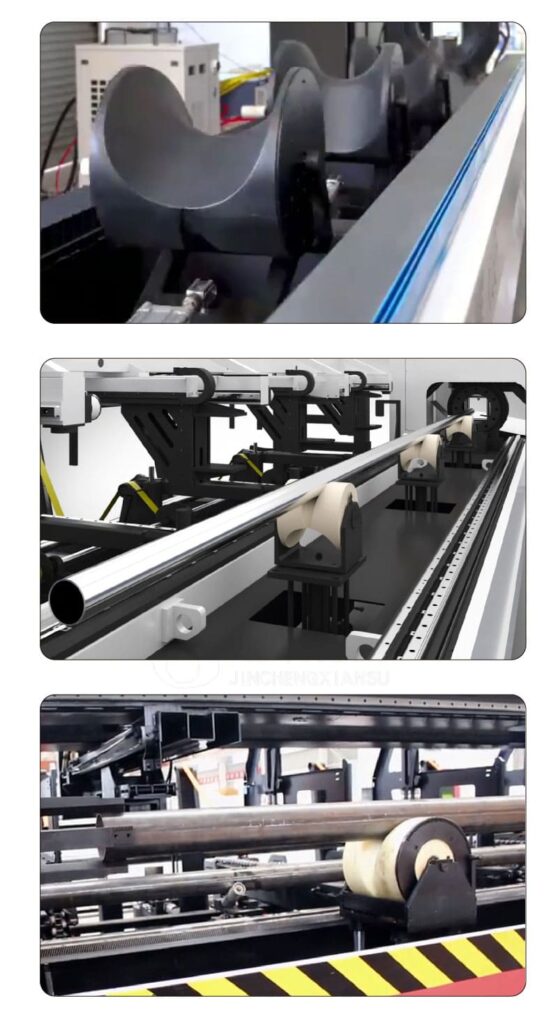

The core value of the nylon variable-diameter support roller lies in its ability to adapt to pipes of different diameters. Through flexible adjustment, it ensures the stability of pipes during the cutting process and reduces vibration to improve precision. Its material has the characteristics of wear resistance and heat resistance, and it has a long service life, making it a key component for improving production efficiency.
The materials are generally MC nylon (monomer cast nylon) and PA6 (nylon 6).
Strength and Stiffness: MC nylon has a molecular weight of up to 70,000–100,000, approximately twice that of PA6, so its mechanical strength properties—such as tensile strength and flexural strength—are generally higher than those of PA6. MC nylon also exhibits relatively good rigidity, enabling it to maintain good dimensional stability under heavy loads, whereas PA6 has relatively lower rigidity.
Toughness: MC nylon has a lower degree of crystallinity, giving it better toughness and impact resistance. It can absorb more energy when subjected to external impact and is not easy to break. PA6 also has good toughness, but it is slightly inferior to MC nylon.
Heat Resistance: The heat distortion temperature of MC nylon is higher than that of ordinary PA6, and its long-term service temperature can reach 100°C – 120°C. This is attributed to its more stable crystal structure.
Shock Absorption: MC nylon (Monomer Cast Nylon) possesses excellent mechanical shock absorption capabilities. It can effectively absorb and buffer vibrations and impacts generated during mechanical operation, thereby reducing equipment wear and malfunctions. PA6 (Polyamide 6) also has a certain degree of shock absorption performance, but its shock absorption effect may be slightly inferior compared to MC nylon.
Wear Resistance:MC nylon (Monomer Cast Nylon) exhibits excellent wear resistance and has a lower friction coefficient than PA6. For instance, cast nylon 6 with oil (PA6 + oil) has a friction coefficient 50% lower than that of ordinary nylon and its wear resistance is 10 times higher. This gives MC nylon a distinct advantage in applications that require long-term friction resistance, such as the manufacturing of components like gears and bearings.
Electrical Insulation Capacity:Both MC nylon (Monomer Cast Nylon) and PA6 (Polyamide 6) possess excellent electrical insulation properties. Their volume resistivities are both greater than 10¹⁴ Ω·cm, which can meet the insulation requirements of general electrical equipment.Chemical Resistance:Both materials exhibit a certain degree of chemical corrosion resistance and can resist the erosion of some common chemical substances. However, the chemical resistance of MC nylon (Monomer Cast Nylon) can be further enhanced by adding modifiers and fillers, enabling it to maintain good performance even in environments with relatively strong corrosion.
The characteristics of nylon materials have multifaceted impacts on their applicable scenarios, which are specified as follows:
1.Good wear resistance determines its applicability in high-frequency use scenarios
Principle of Influence:Nylon materials possess high hardness and scratch resistance, along with excellent wear resistance. They can maintain good wear resistance even under unlubricated conditions, and their service life can reach 2–3 times that of metal rollers. When a laser pipe cutting machine is in operation, the support rollers need to be in continuous contact with the pipes and maintain relative motion, which generates frequent friction.
Applicable Scenarios:In industries such as automobile manufacturing and mechanical processing, laser pipe cutting machines need to operate continuously for a long time, resulting in severe wear on the support rollers. Thanks to its wear resistance, the nylon variable-diameter support roller can work stably in such high-frequency use scenarios, reducing the replacement frequency and improving production efficiency.
2.A low friction coefficient makes it suitable for scenarios requiring high feeding precision
Principle of Influence:Nylon materials have low surface frictional resistance and a low friction coefficient (approximately 0.1–0.3), which can reduce energy loss during rotation and eliminate the need for frequent lubricant addition. During the laser pipe cutting process, pipes need to be accurately fed into the cutting position, and support rollers with low friction can ensure smooth and stable feeding, reducing feeding errors caused by friction.
Applicable Scenarios:In fields such as electronic equipment manufacturing and aerospace, the requirements for pipe cutting precision are extremely high. The low-friction characteristic of the nylon variable-diameter support roller can ensure that pipes are fed accurately, meeting the high-precision cutting needs.
3. The lightweight characteristic meets the needs of scenarios with requirements for equipment load
Principle of Influence:The density of nylon is approximately 1/7 to 1/8 that of metals (such as steel and iron), which significantly reduces the weight of the support roller. In laser pipe cutting machines, lighter support rollers can lower the overall moment of inertia of the equipment, reducing the load on the drive system and thereby decreasing energy consumption. Additionally, this is also beneficial for the rapid start-stop and speed adjustment of the equipment.
Applicable Scenarios:For some highly automated laser pipe cutting production lines that require rapid response, or for enterprises with strict restrictions on energy consumption, the lightweight advantage of nylon variable-diameter support rollers is very obvious. It can help equipment better meet production rhythms and energy-saving requirements.
4. Good toughness makes it suitable for scenarios with impact
Principle of Influence:Nylon has a certain degree of elasticity and impact resistance. When subjected to slight impacts or overloads, it is not prone to fracture or deformation and can buffer the impact of external forces on the equipment. During the operation of a laser pipe cutting machine, the support rollers may be subjected to a certain degree of impact force due to reasons such as imprecise pipe placement.
Applicable Scenarios:In industries such as construction steel structure processing, pipes are large in size and weight, making them more likely to impact the support rollers during the loading and unloading process. The good toughness of the nylon variable-diameter support rollers can effectively buffer these impact forces, protect the support rollers and other components of the pipe cutting machine, and extend the overall service life of the equipment.
5.Chemical stability meets cutting requirements in special environments
Principle of Influence:Nylon has good resistance to acids, alkalis, most inorganic salt aqueous solutions, halogenated alkanes, hydrocarbons, esters, ketones, and more. In some special processing environments, there may be corrosive gases, liquids, or chemical agents, and the nylon variable-diameter support roller can maintain stable performance in such environments without being corroded.
Applicable Scenarios:In scenarios such as chemical pipeline processing, chemical substances may exist in the production environment. The chemical stability of the nylon variable-diameter support roller enables it to adapt to this special environment and ensure the normal progress of cutting work.
The Core Mechanism for Enhancing Cutting Stability
- Adaptive Pipe Diameter Adjustment
The nylon variable-diameter support roller adopts an adjustable structure (such as spring compression or modular wheel grooves), and can be compatible with round pipes and square pipes (size depends on diagonal dimension) ranging from Φ10mm to 450mm without replacing accessories.
When the pipe is cut at high-speed rotation, the support roller achieves wrap-around support through the V-shaped groove and nylon elastic deformation, reducing radial runout (the measured vibration amplitude is reduced by more than 40%).
- Anti-Vibration Design
Nylon material absorbs cutting vibrations, preventing burrs or deviations at the cut edge of pipes caused by high-frequency vibrations. It is particularly suitable for thin-walled pipes (such as stainless steel pipes with a wall thickness of ≤ 2mm).
- Wear and Heat Resistance Ensures Sustained Stability
Nylon material can withstand cutting high temperatures below 120°C (temperature in the heat-affected zone of laser sputtering), preventing rubber rollers from softening and failing.
It has high wear resistance (with a service life more than 3 times that of ordinary rubber rollers), reducing the decrease in supporting force caused by wear of the support rollers.
Key Paths to Improve Production Efficiency
1.Reduce changeover time: There is no need to shut down the machine to replace support rollers when switching pipe diameters. The wheel spacing can be quickly adjusted via a handle/pneumatically (completed within 30 seconds). Changeover efficiency is improved by 80%.
2.Extend maintenance cycle: The wear-resistant property of nylon reduces the frequency of spare part replacement (maintenance interval ≥ 500 hours). The overall equipment efficiency is increased by 15%.
Application Scenarios
The application scenarios of nylon variable-diameter support rollers mainly depend on the advantages brought by their material characteristics, and they are suitable for the following situations and industries:
1.Scenarios with strict protection requirements for the workpiece surface
- High-gloss pipes: Such as stainless steel decorative pipes, furniture pipes, and pipes for kitchen and bathroom products.
- Electroplated or spray-coated pipes: Any pipe with a surface treatment will be scrapped entirely if scratched.
- Non-ferrous metal pipes: Relatively soft metals such as aluminum alloy pipes, copper pipes, and brass pipes.
- Thin-walled pipes: Thin-walled pipes are more likely to be dented by hard metal support rollers.
2. Scenarios requiring rapid response and high-precision cutting
When used with laser pipe cutting machines driven by servo motors: The lightweight property of nylon support rollers enables them to perfectly meet the high dynamic response requirements of servo systems, ensuring the synchronization accuracy between pipe rotation and cutting head movement. This is crucial for cutting complex patterns and high-precision hole positions.
3.Wide-Ranging Industrial Applications
- Furniture Industry: Stainless steel chair frames, table legs, bathroom hardware, etc.
- Fitness Equipment Industry: Metal frames for various fitness machines.
- Automotive Exhaust Systems: Cutting and processing of stainless steel exhaust pipes.
- Architectural Decoration Industry: Guardrails, handrails, curtain wall keels, etc.
- Mechanical Equipment Manufacturing: Industries requiring various high-precision tubular components.
Limitations and Precautions
Despite the numerous advantages of nylon support rollers, they also have their limitations:
- Limited high-temperature resistance: The continuous service temperature of ordinary nylon is usually around 100°C – 120°C. During long-duration, high-intensity cutting processes, if heat is transferred to the support rollers (e.g., when cutting thick-walled pipes), it may cause them to soften and deform. Therefore, in scenarios involving extreme heavy loads and high-speed cutting, it is necessary to consider using materials with better high-temperature resistance (such as PEEK, Vespel, etc., but their costs are extremely high) or adopting forced cooling measures.
- Resistance to extreme pressure: Although nylon has high strength, its ultimate static load capacity is still lower than that of high-quality alloy steel. When supporting extremely heavy large thick-walled pipes, it is necessary to calculate its load-bearing capacity.
Conclusion
With its core characteristics of not damaging workpieces, wear resistance, light weight, and low noise, the nylon variable-diameter support roller has become a standard configuration for modern high-precision laser pipe cutting machines. It perfectly balances performance, cost, and workpiece protection, and is particularly suitable for processing various metal pipes that have high requirements for surface quality.
