The Role and Importance of Guide Rails
The guide rail of the knife – edge turning machine plays a crucial role in the machine. Its main functions are to ensure the smooth turning of materials during transportation and prevent materials from piling up or jamming at the turning points. The design and maintenance of the guide rail directly affect the stability and efficiency of the entire conveying system.
Main Functions
- Ensure Smooth Material Turning: Through precise guiding design, materials can be smoothly transferred from one conveying line to another.
- Prevent Material Piling: Guide rails can effectively direct materials, avoiding their accumulation at turning points and keeping the conveying line unobstructed.
The guide rails of logistics turning machines mainly consist of the following parts:
- Turning Chain: A chain composed of several chain plates and chain axles, whose main function is to transfer items from one conveying line to another.

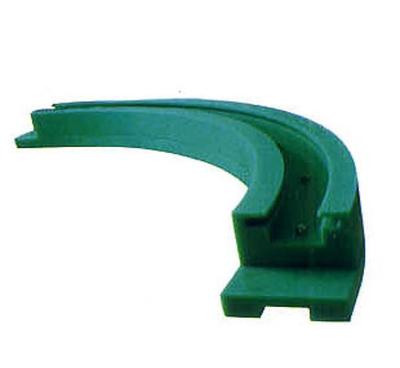

- Guide Rail: Composed of guide plates, guide rail grooves, and fixing parts, it is used to guide the smooth movement and turning of items on the conveying line, ensuring the stability of items and conveying efficiency.
Materials and Characteristics
The guide rails of logistics turning machines usually adopt the following materials:

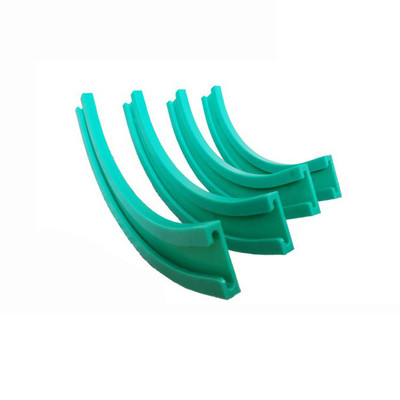

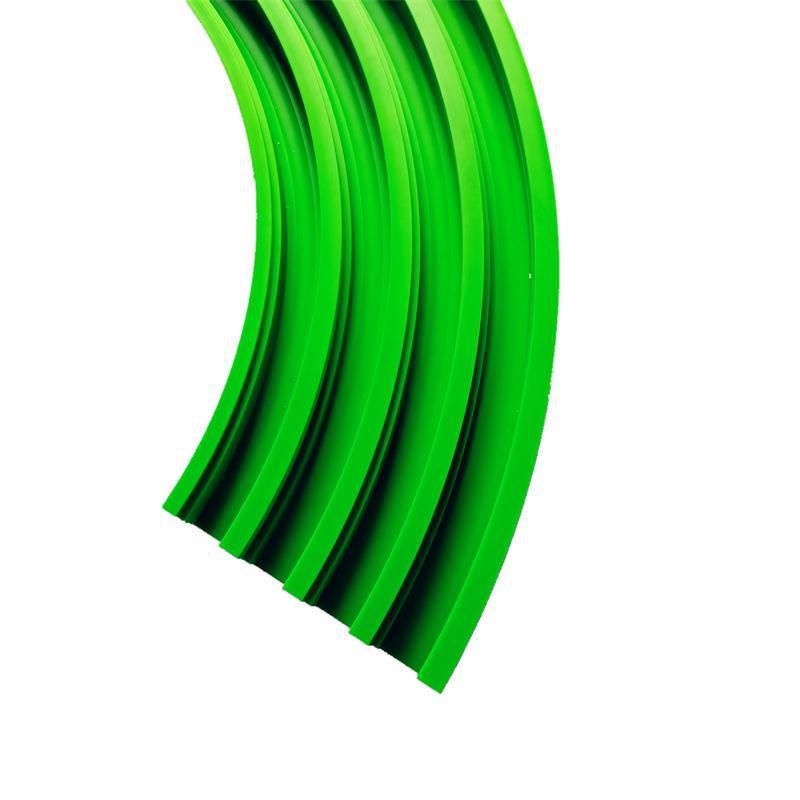

- Ultra – high Molecular Weight Polyethylene and Nylon: These materials have advantages such as light weight, high impact resistance, smooth surface, wear resistance, corrosion resistance, and noise – reducing vibration absorption.
- High – molecular Plastics: They have excellent wear resistance, a low friction coefficient, and good mechanical properties. They are widely used in various track systems, especially suitable for food conveying lines because they are easy to clean and corrosion – resistant.
Application Scenarios
The guide rails of logistics turning machines are widely used in the following scenarios:
- Food Machinery Industry: Ensures that food is not damaged during transportation and improves production efficiency.
- Packaging Machinery Industry: Used to support and guide chains, reducing friction and noise and extending the service life.
- Automated Production Lines: Utilizes magnetism to achieve smooth turning and precise positioning of objects, improving production efficiency and reducing losses.
I. Manufacturing Processes and Assembly Techniques of Guide Rails
Manufacturing Processes
- Design Phase: According to actual needs, draw the guide rail structure diagram through CAD tools to determine the shape, size, and material parameters.
- Material Procurement: Select materials that are wear – resistant, corrosion – resistant, and high – temperature – resistant, such as aluminum, copper, steel, etc.
- Casting and Forming: Adopt high – temperature casting processes to ensure the density and hardness of castings.
- Surface Treatment: Includes machining and manual operations to ensure surface finish.
- Processing Phase: Assemble various components and conduct debugging and acceptance.
Assembly Techniques
- Installation Phase: Reserve space for wiring and pipelines to ensure the correct installation of each component.
- Debugging Phase: Adjust various parameters and check the track curvature, friction coefficient, etc.
- Inspection Phase: Disassemble the guide rail for inspection, cleaning, repair, etc.
II. Precautions
- When maintaining and replacing the guide rail, make sure the power is turned off and the machine is stopped to ensure safety.
- The parts used must be compatible with the machine and cannot be replaced casually to avoid affecting the normal operation of the machine.
- Regularly maintain the machine to prevent failures and extend its service life.
III. Characteristics of Conveyed Items
- Weight: Select the load – bearing capacity of the guide rail according to the weight of the conveyed items. If transporting heavy goods, such as large – scale mechanical equipment, pallets full of goods, etc., a guide rail with a strong load – bearing capacity, such as a heavy – duty guide rail made of high – strength steel, needs to be selected to ensure that the guide rail can bear the weight of the items and prevent deformation or damage.
- Size and Shape: The size and shape of the items determine parameters such as the width and curvature radius of the guide rail. For items with large sizes or irregular shapes, a guide rail with a larger width and an appropriate turning radius needs to be selected to ensure that the items can pass smoothly during turning and will not collide with the guide rail or other equipment.
- Material and Surface Characteristics: If the surface of the conveyed items is easily scratched, a guide rail with a smooth surface and a low friction coefficient, such as an ultra – high molecular weight polyethylene guide rail, needs to be selected; if the items are corrosive, a corrosion – resistant guide rail material, such as a stainless – steel guide rail, should be chosen.
IV. Logistics Information Parameters
- Conveying Speed: For logistics systems with a high conveying speed, the guide rail is required to have good wear resistance and stability to reduce wear and ensure the smoothness of items during high – speed turning. For example, ring – shaped guide rails can maintain high precision and stability during high – speed operation and are suitable for high – speed logistics conveying systems.
- Conveying Volume: Logistics systems with a large conveying volume require guide rails that can withstand frequent passage of materials. A guide rail that is sturdy, durable, and can operate stably for a long time needs to be selected. Magnetic turning guide rails can stably adsorb and guide materials using magnetism during high – frequency material transportation and are suitable for occasions with a large conveying volume.
